| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMR1048S1210W PCB DIP24 18-75VDC INPUT 4:1 XP Power |
1,647 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 833mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1012S1210W PCB DIP24 4.5-18VDC INPUT 4: XP Power |
2,170 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 18V | 12V | - | - | - | 833mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 86.5% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|

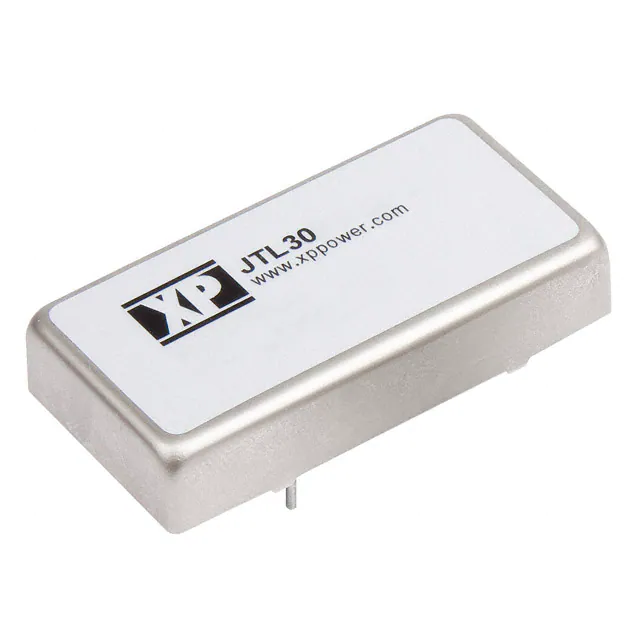

JTL3048S15DC DC CONVERTER 15V 30W XP Power |
4,224 |
|
规格书 |
JTL (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 90% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
JMR1012D1210W PCB DIP24 4.5-18VDC INPUT 4: XP Power |
3,414 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 86.5% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1024D1210W PCB DIP24 9-36VDC INPUT 4:1 XP Power |
4,057 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1048D1210W PCB DIP24 18-75VDC INPUT 4:1 XP Power |
1,045 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 416mA, 416mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1012D1510W PCB DIP24 4.5-18VDC INPUT 4: XP Power |
2,299 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 18V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR1024D1510W PCB DIP24 9-36VDC INPUT 4:1 XP Power |
4,860 |
|
规格书 |
JMR10 (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 89% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR2024S0520W PCB DIP24 9-36VDC INPUT 4:1 XP Power |
1,274 |
|
规格书 |
JMR20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
|
|
JMR2024S1220W PCB DIP24 9-36VDC INPUT 4:1 XP Power |
2,167 |
|
规格书 |
JMR20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 5 kV | ITE (Commercial), Medical | Adjustable Output, Remote On/Off | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | - | - | CB, CE, CSA, TUV, UKCA, UL | 60601-1; 62368-1 |
