购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL2409SDC DC CONVERTER 9V 2W XP Power |
631 |
|
规格书 |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|
|
IL2415SDC DC CONVERTER 15V 2W XP Power |
394 |
|
规格书 |
IL (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 15V | - | - | - | 132mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|

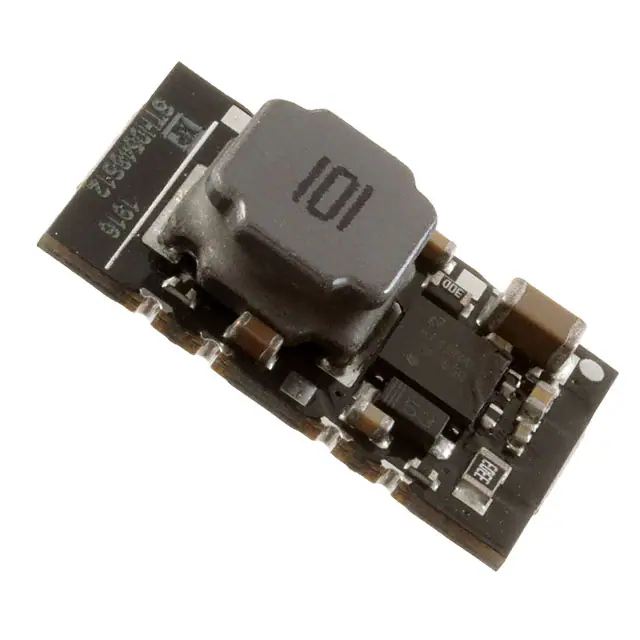

STH0548S3V3DC DC CONVERTER 3.3V XP Power |
269 |
|
规格书 |
STH05 (5W) | 10-SMD Module, 6 Leads | Tube | Active | Non-Isolated PoL Module | 1 | 9V | 72V | 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C (With Derating) | 79% | - | - | Surface Mount | - | - | - | - |
|
ITW1212SADC DC CONVERTER 12V 1W XP Power |
147 |
|
规格书 |
ITW (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 83mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | 62368-1 |
|

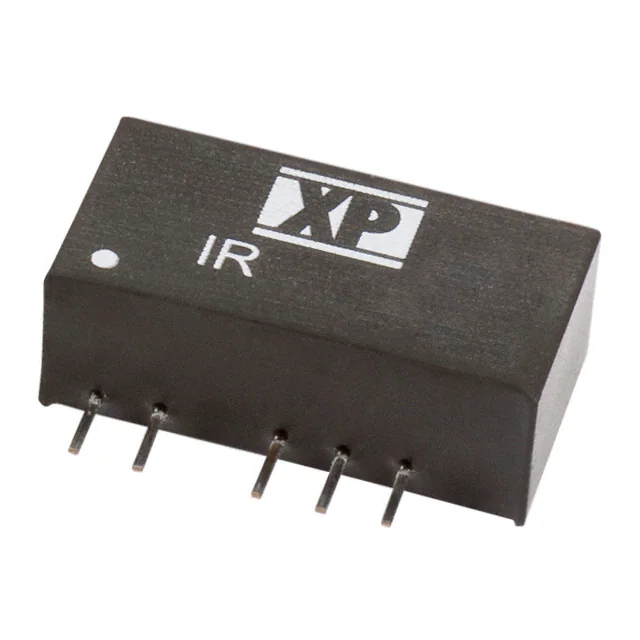

IR1212SDC DC CONVERTER +/-12V 3W XP Power |
229 |
|
规格书 |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 10.8V | 13.2V | 12V | -12V | - | - | 125mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole | - | - | - | - |
|
|
IR0505SADC DC CONVERTER 5V 3W XP Power |
183 |
|
规格书 |
IR (3W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 600mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79% | - | - | Through Hole | - | - | - | - |
|
IU4805SADC DC CONVERTER 5V 2W XP Power |
135 |
|
规格书 |
IU (2W) | 8-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 400mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | 62368-1 |
|
IM4805SADC DC CONVERTER 5V 2W XP Power |
229 |
|
规格书 |
IM (2W) | 9-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
IZ1205SADC DC CONVERTER 5V 3W XP Power |
3,610 |
|
规格书 |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 81% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|
|
IZ4812SDC DC CONVERTER +/-12V 3W XP Power |
514 |
|
规格书 |
IZ (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 72V | 12V | -12V | - | - | 125mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 80% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
