购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

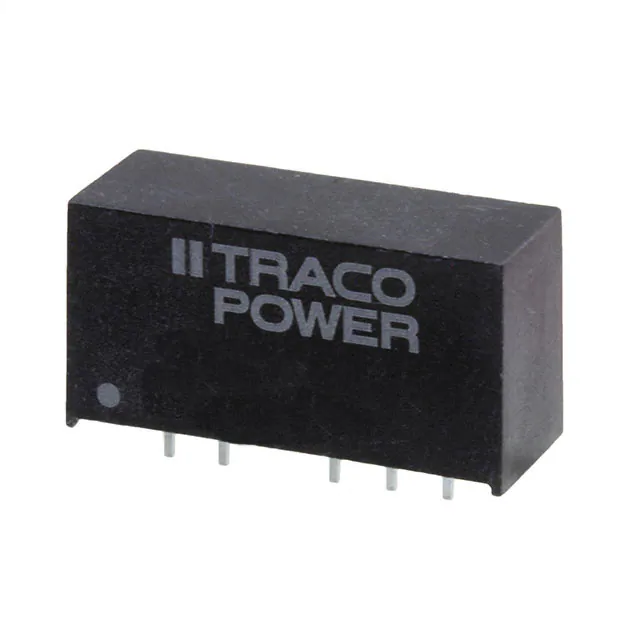

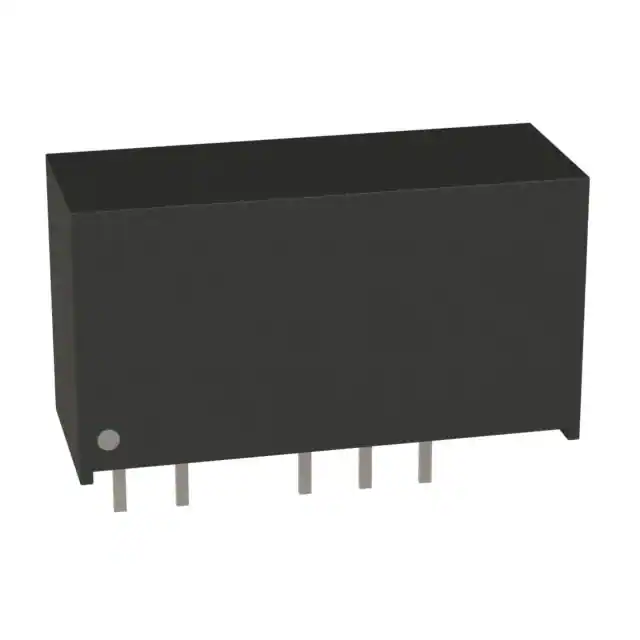

TMH 2412DDC DC CONVERTER +/-12V 2W Traco Power |
3,152 |
|
规格书 |
TMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 24V | 26.4V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | - | - | - | - |
|
TMH 2415DDC DC CONVERTER +/-15V 2W Traco Power |
311 |
|
规格书 |
TMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 24V | 26.4V | 15V | -15V | - | - | 66mA, 66mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | - | - | - | - |
|
|
TMH 0505DDC DC CONVERTER +/-5V 2W Traco Power |
383 |
|
规格书 |
TMH (2W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 77% | - | - | Through Hole | - | - | - | - |
|

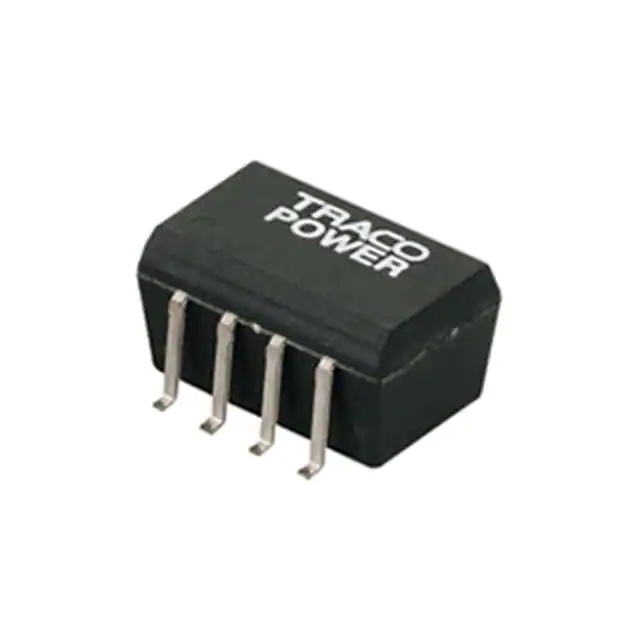

TSM 0505SDC DC CONVERTER 5V 1W Traco Power |
1,060 |
|
规格书 |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
TSR 1-2465DC DC CONVERTER 6.5V 6.5W Traco Power |
643 |
|
规格书 |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 9V | 36V | 6.5V | - | - | - | 1A | 6.5 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - |
|
|
TSM 0505S-TRDC DC CONVERTER 5V 1W Traco Power |
1,061 |
|
规格书 |
TSM (1W) | 14-SMD Module, 8 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
TSR 1-2490DC DC CONVERTER 9V 9W Traco Power |
479 |
|
规格书 |
TSR 1 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 12V | 36V | 9V | - | - | - | 1A | 9 W | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | - | - | - | - |
|

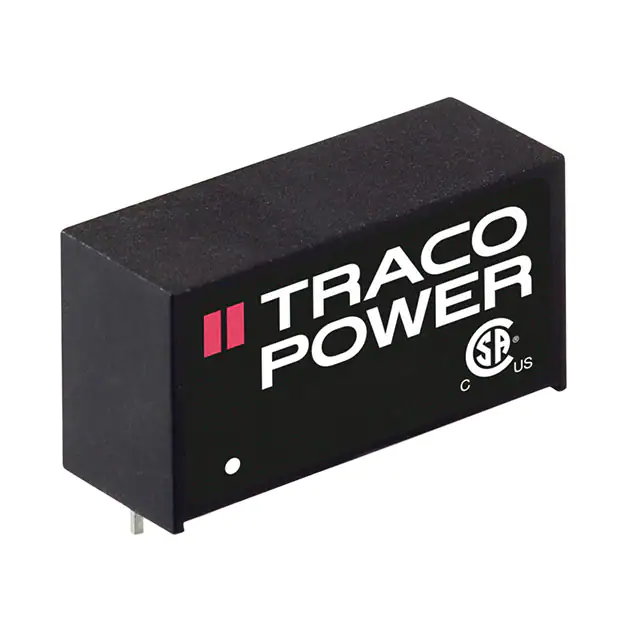

TMV 2405SHIDC DC CONVERTER 5V 1W Traco Power |
1,361 |
|
规格书 |
TMV-HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 24V | 26.4V | 5V | - | - | - | 200mA | 1 W | 5.2 kV | ITE (Commercial) | SCP | -40°C ~ 95°C (With Derating) | 70% | - | - | Through Hole | - | - | - | - |
|
|
TSM 1205SDC DC CONVERTER 5V 1W Traco Power |
566 |
|
规格书 |
TSM (1W) | 14-SMD Module, 8 Leads | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 81% | - | - | Surface Mount | - | - | - | - |
|
TMR 1-2415DC DC CONVERTER 24V 1W Traco Power |
750 |
|
规格书 |
TMR 1 (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 42mA | 1 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | Module | - | CB, CSA | - |
