购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

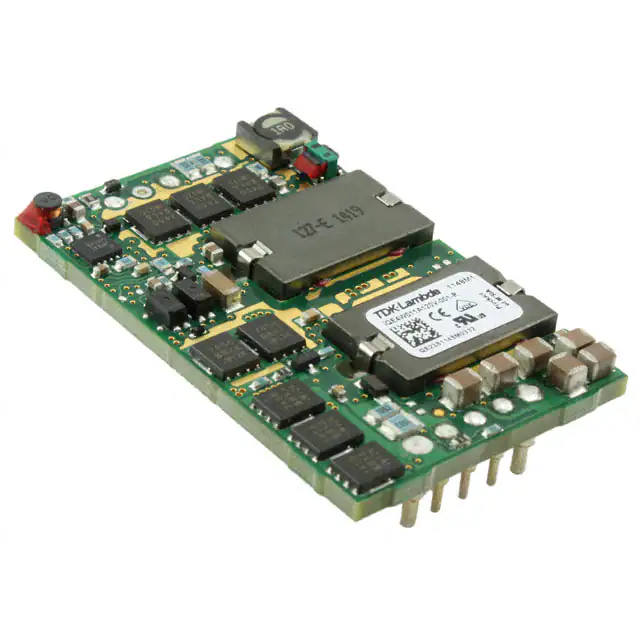

IQE4W011A120V-001-RDC DC CONVERTER 12V 132W TDK-Lambda |
4,600 |
|
规格书 |
iQE (204W) | 8-DIP Module | Bulk | Active | Intermediate Bus Converter | 1 | 18V | 60V | 12V | - | - | - | 11A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 125°C | 90% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
IQG48033A120V-009-RDC DC CONVERTER 12V TDK-Lambda |
238 |
|
规格书 |
iQG (400W) | 8-DIP Module, 1/4 Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 33A | - | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 124°C | 95% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
I7A48020A033V-0F3-RDC DC CONVERTER 3.3-32V 500W TDK-Lambda |
4,288 |
|
规格书 |
i7A (750W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 28V | 60V | 3.3 ~ 32V | - | - | - | 20A | 640 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
I7A48020A033V-0C1-RDC DC CONVERTER 3.3-32V 500W TDK-Lambda |
2,500 |
|
规格书 |
i7A (750W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 28V | 60V | 3.3 ~ 32V | - | - | - | 20A | 640 W | - | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
I7A48020A033V-0F1-RDC DC CONVERTER 3.3-32V 500W TDK-Lambda |
4,048 |
|
规格书 |
i7A (750W) | Sixteenth Brick | Box | Active | Non-Isolated PoL Module | 1 | 28V | 60V | 3.3 ~ 32V | - | - | - | 20A | 640 W | - | ITE (Commercial) | Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, UKCA | 62368-1 |
|
|
RGB24750W045A-003DC/DC CONVERTER 3.3-18V 750W TDK-Lambda |
4,011 |
|
规格书 |
RGB (750W) | 10-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 18V | 32V | 3.3 ~ 18V | - | - | - | 45A | 750 W | - | - | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 98.5% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CE, UKCA | - |
|
|
IQK4N090A112V-1U9-RDC-DC, PCB MOUNT, QUARTER BRICK, TDK-Lambda |
3,255 |
|
规格书 |
IQK (1008W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 48V | 56V | 11.2V | - | - | - | 90A | 1.008 kW | 707 V | ITE (Commercial) | Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 119°C | 96% | - | - | Through Hole | Quarter Brick | Enable, Active Low | CE | 60950-1; 62368-1 |
|

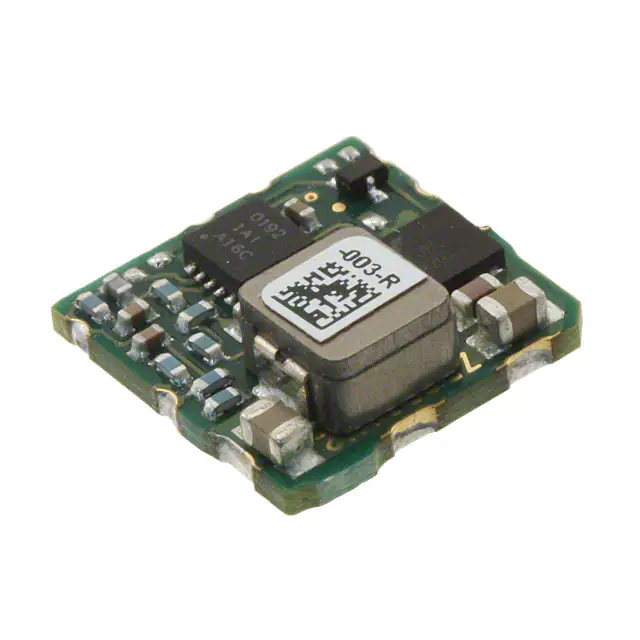

ICF12003A007V-003-RDC DC CONVERTER 0.7-5.5V 17W TDK-Lambda |
504 |
|
规格书 |
iCF (17W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 3A | 17 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 115°C | 94% | - | - | Surface Mount | - | Enable, Active Low | - | - |
|
|
ICF05003A006V-003-RDC DC CONVERTER 0.6-3.63V TDK-Lambda |
648 |
|
规格书 |
iCF (17W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.63V | - | - | - | 3A | - | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 115°C | 92% | - | - | Surface Mount | - | Enable, Active Low | - | - |
|

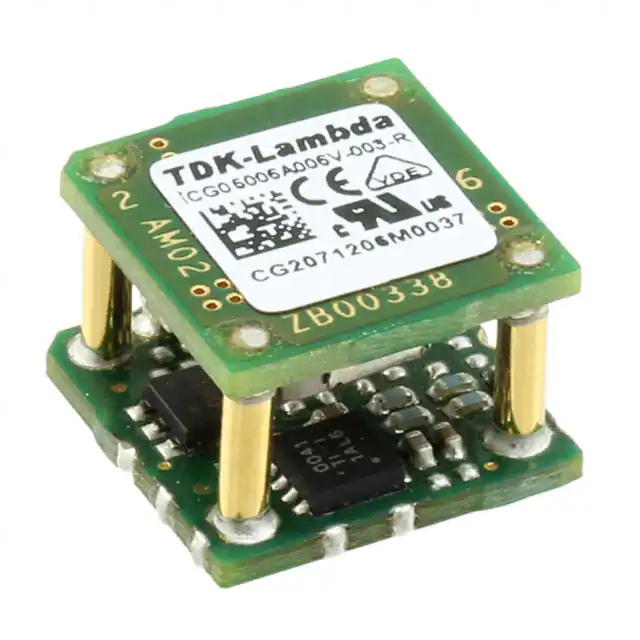

ICG05006A006V-003-RDC DC CONVERTER 0.6-3.63V TDK-Lambda |
399 |
|
规格书 |
iCG (33W) | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 3.63V | - | - | - | 6A | - | - | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 115°C | 93% | - | - | Surface Mount | - | Enable, Active Low | - | - |
