购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IE1215SDC DC CONVERTER 15V 1W |
224 |
|
规格书 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
MAXM17626AMB+T2.7V TO 5.5V, 600MA USLIC POWER |
493 |
|
规格书 |
Himalaya | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.8 ~ 3.3V | - | - | - | 600mA | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount | 10-eMGA (2.6x2.1) | Enable, Active Low | - | - |
|
TME 0505SDC DC CONVERTER 5V 1W |
4,845 |
|
规格书 |
TME (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 69% | - | - | Through Hole | - | - | - | - |
|

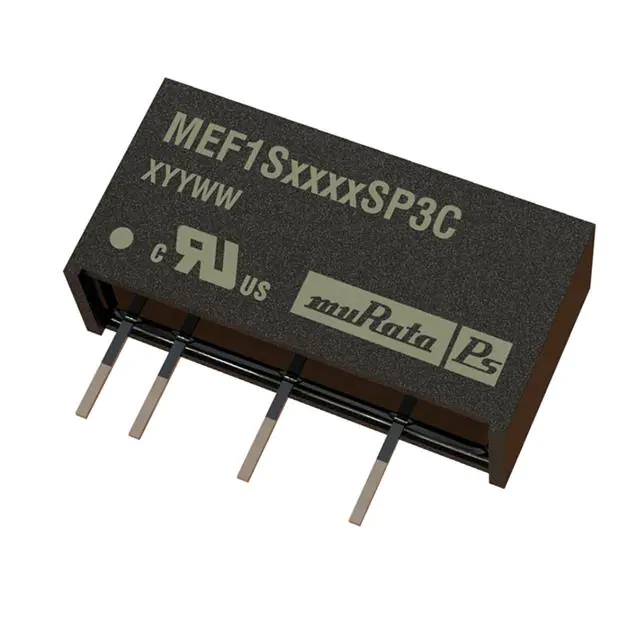

MEF1S0505SP3CDC DC CONVERTER 5V 1W |
713 |
|
规格书 |
MEF1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.75V | 5.25V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 73% | - | - | Through Hole | - | - | - | - |
|
|
MEF1S0305SP3CDC DC CONVERTER 5V 1W |
183 |
|
规格书 |
MEF1 (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3.135V | 3.465V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 71% | - | - | Through Hole | - | - | - | - |
|
TPS84610RKGRDC DC CONVERTER 0.8-3.6V |
2,614 |
|
规格书 |
- | 39-BQFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 6V | 0.8 ~ 3.6V | - | - | - | 6A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 96% | - | - | Surface Mount | 39-B1QFN (11x9) | Enable, Active High | - | - |
|
MPM3510AGQV-ZDC DC CONVERTER 0.81-32V |
1,706 |
|
- |
- | 19-PowerLQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 36V | 0.81 ~ 32V | - | - | - | 1.2A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C (TJ) | - | - | - | Surface Mount | 19-QFN (3x5) | - | - | - |
|
LMS78_05-2.0RNON-ISOLATED POL MODULE DC DC CO |
1,042 |
|
规格书 |
LMS78_2.0R | 3-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 8V | 36V | 5V | - | - | - | 2A | 10 W | - | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | - | - | - | 62368-1 |
|
TSR 0.5-2450DC DC CONVERTER 5V 2.5W |
3,215 |
|
规格书 |
TSR 0.5 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OTP, SCP | -40°C ~ 90°C (With Derating) | 94% | - | - | Through Hole | - | - | - | - |
|
TMA 0512DDC DC CONVERTER +/-12V 1W |
419 |
|
规格书 |
TMA (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 42mA, 42mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
|
173950578DC DC CONVERTER 5V 2.5W |
230 |
|
规格书 |
MagI³C (1W) | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6V | 28V | 5V | - | - | - | 500mA | 2.5 W | - | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 85°C | 95% | - | - | Through Hole | - | - | - | - |
|
IK0505SADC DC CONVERTER 5V 250MW |
2,301 |
|
规格书 |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 50mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - |
|
RPM3.3-1.0DC DC CONVERTER 3.3V |
999 |
|
规格书 |
INNOLINE RPM-1.0 | 25-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 3.3V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 99% | - | - | Surface Mount | - | - | - | - |
|
|
RPM5.0-1.0DC DC CONVERTER 5V |
670 |
|
规格书 |
INNOLINE RPM-1.0 | 25-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 5V | - | - | - | 1A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 99% | - | - | Surface Mount | - | - | - | - |
|
TPSM84203EABDC DC CONVERTER 3.3V |
405 |
|
规格书 |
TPSM | 3-SIP Module | Tray | Active | Linear Regulator Replacement | 1 | 4.5V | 28V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 3-SIP Module | - | - | - |
|
|
IK2403SADC DC CONVERTER 3.3V 250MW |
400 |
|
规格书 |
IK (0.25W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 3.3V | - | - | - | 75.7mA | 250 mW | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 60% | - | - | Through Hole | - | - | - | - |
|
UCC12040DVERDC DC CONVERTER 3.3V 5V 500MW |
3,748 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 3.3V, 5V | - | - | - | 140mA, 100mA | 500 mW | 3 kV | ITE (Commercial), Laboratory, Medical | - | -40°C ~ 125°C (With Derating) | 60% | - | - | Surface Mount | 16-SOIC | Enable, Active High | CQC, TUV, UL, VDE | - |
|
TES 1-0511-TRDC DC CONVERTER 5V 1W |
2,928 |
|
规格书 |
TES 1 (1W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 90°C (With Derating) | 78% | - | - | Surface Mount | - | - | - | - |
|
IA0505SDC DC CONVERTER +/-5V 1W |
2,361 |
|
规格书 |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 74% | - | - | Through Hole | - | - | - | 62368-1 |
|
|
IA2409SDC DC CONVERTER +/-9V 1W |
880 |
|
规格书 |
IA (1W) | 5-SIP Module | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 9V | -9V | - | - | 55mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | 62368-1 |
