购物车直流直流转换器（DC DC Converters）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1S4E_0505S1.5UISOLATED MODULE DC DC CONVERTERS |
2,173 |
|
规格书 |
1S4E_1.5U (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 81% | - | - | Through Hole | - | - | - | - |
|
TPS631000DRLRDC DC CONVERTER |
14,863 |
|
规格书 |
TPS | SOT-583 | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.6V | 5.5V | 1.2 ~ 5.3V | - | - | - | 2A | - | - | - | Adjustable Output, Remote On/Off | -40°C ~ 125°C | - | - | - | Surface Mount | SOT-583 | Enable, Active High | - | - |
|
XCL209F083DRDC DC CONVERTER 0.9-6V |
5,899 |
|
规格书 |
XCL209 | 8-PowerTDFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 1.8V | 6V | 0.9 ~ 6V | - | - | - | 400mA | - | - | ITE (Commercial) | SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | USP-10B03 | - | - | - |
|
SC202AMLTRTDC DC CONVERTER 0.8-3.3V |
22,182 |
|
规格书 |
SC202 | 13-PowerVFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.9V | 5.5V | 0.8 ~ 3.3V | - | - | - | 500mA | - | - | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 13-MLPQ (2.5x3) | - | - | - |
|
NME1S0505SCDC DC CONVERTER 5V 1W |
2,149 |
|
规格书 |
NME1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 115°C (With Derating) | 67% | - | - | Through Hole | - | - | cURus | 62368-1 |
|
XCL101A501ER-GDC DC CONVERTER 5V |
3,934 |
|
规格书 |
XCL101 | 8-TDFN Exposed Pad | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 0.9V | 5.5V | 5V | - | - | - | 100mA | - | - | ITE (Commercial) | - | -40°C ~ 85°C | - | - | - | Surface Mount | CL-2025-02 | - | - | - |
|
RFM-0505SDC DC CONVERTER 5V 1W |
20,935 |
|
规格书 |
RFM (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | - | 5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 79 ~ 84% | - | - | Through Hole | - | - | - | - |
|
TEA 1-0505EDC DC CONVERTER 5V 1W |
6,319 |
|
规格书 |
TEA 1E (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
|
MIC33153YHJ-TRIC REG BUCK ADJ 1.2A 14MLF |
17,737 |
|
规格书 |
HyperLight Load® | 14-PowerTFDFN | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.62V ~ 3.6V | - | - | - | 1.2A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C (TJ) | 93% | - | - | Surface Mount | 14-TDFN (3x3.5) | - | - | - |
|
TEA 1-0505DC DC CONVERTER 5V 1W |
2,098 |
|
规格书 |
TEA 1 (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
|
|
TPSM863252RDXR3-V TO 17-V INPUT VOLTAGE 3-A E |
3,771 |
|
- |
TPSM | 7-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 17V | 0.6 ~ 10V | - | - | - | 3A | 30 W | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | - | - | - | Surface Mount | 7-QFN-FCMOD (4x3.3) | - | - | - |
|
RFB-0505SDC DC CONVERTER 5V 1W |
3,387 |
|
规格书 |
RFB (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | - | 5V | 5V | - | - | - | 200mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
R05C1TF05S-R1W DC/DC-CONVERTER 'ECONOLINE' S |
182 |
|
规格书 |
RxxC1TFxxS (1W) | 12-PowerTFLGA Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 3V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C (With Derating) | 50.5% | - | - | Surface Mount, Wettable Flank | 12-LGA (5x4) | - | - | - |
.JPG)
|

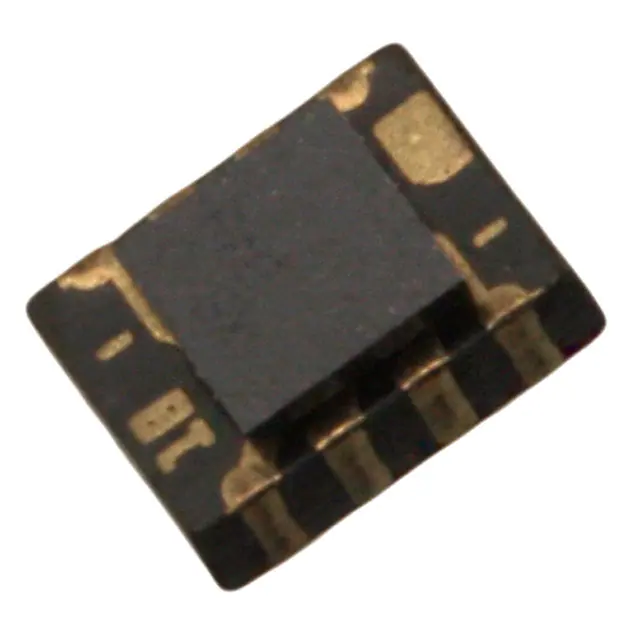

LMZ10500SILRDC DC CONVERTER 0.6-3.6V 2W |
3,644 |
|
规格书 |
SIMPLE SWITCHER® | 8-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 3.6V | - | - | - | 650mA | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | 95% | - | - | Surface Mount | 8-uSIP | Enable, Active High | - | - |
|
|
RFMM-0505SDC DC CONVERTER 5V 1W |
9,078 |
|
规格书 |
RFMM (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | - | 5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | SCP | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
TLVM23615RDNR3-V TO 36-V INPUT, 1-V TO 6-V OU |
1,440 |
|
规格书 |
HotRod™ | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 6V | - | - | - | 1.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 88% | - | - | Surface Mount, Wettable Flank | 11-QFN-FCMOD (4.5x3.5) | Enable, Active High | - | - |
|
|
TLVM23625RDNR3-V TO 36-V INPUT, 1-V TO 6-V OU |
3,527 |
|
规格书 |
TLVM23625 | 11-PowerFQFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 36V | 1 ~ 6V | - | - | - | 2.5A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 125°C | 88% | - | - | Surface Mount, Wettable Flank | 11-QFN-FCMOD (4.5x3.5) | - | - | - |
|
TEA 1-0505HIDC DC CONVERTER 5V 1W |
4,076 |
|
规格书 |
TEA 1HI (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 4 kV | ITE (Commercial) | - | -40°C ~ 95°C (With Derating) | 78% | - | - | Through Hole | - | - | - | - |
.jpg)
|
TPSM82821SILR5.5-V INPUT, 1-A STEP-DOWN MODUL |
5,928 |
|
规格书 |
MicroSip™ | 10-LDFN Exposed Pad, Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 4V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 95% | - | - | Surface Mount | 10-uSIP (3.8x3) | - | - | - |
|
|
TPSM82821ASILRDC DC CONVERTER 0.6-4V |
1,965 |
|
规格书 |
TPSM | 10-TFDFN Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.4V | 5.5V | 0.6 ~ 4V | - | - | - | 1A | - | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 125°C | 95% | - | - | Surface Mount | 10-uSIP (2.5x2) | Enable, Active High | - | - |
