购物车接头、耦合器和分配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 连接方式 | 适用范围/相关产品 | 特性 | 工作压力 | 工作温度 | 螺纹尺寸 | 安装类型 | 材质 | 颜色 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QSPLKG20-10CARTRIDGE |
1,962 |
|
- |
QSP | Bulk | Active | Elbow Fitting | Push-In to Cartridge | 20mm and 10mm OD Tubing | - | -13.8 ~ 145 PSI (-0.95 ~ 10 bar) | -5°C ~ 60°C | - | Free Hanging (In-Line) | Reinforced Polyamide (PA) | White |
|
|
QSF-1/8-6-B-100PUSH-IN FITTING |
3,472 |
|
- |
QS | Bulk | Active | Straight Fitting | Push-In | 6mm OD Tubing | - | -13.8 ~ 87 PSI (-0.95 ~ 6 bar) | -10°C ~ 80°C | G1/8" | Free Hanging (In-Line) | Brass | Blue |
|
|
QS-3/8-12PUSH-IN FITTING |
2,475 |
|
- |
QS | Bulk | Active | Straight Fitting | Threaded | 12mm OD Tubing | - | -13.8 ~ 203 PSI (-0.95 ~ 14 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Nickel Plated Brass | Blue |
|
|
NPQH-DK-M5-Q6-P10PUSH-IN FITTING |
4,959 |
|
- |
NPQH | Bulk | Obsolete | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | M5 | Free Hanging (In-Line) | Brass | Silver |
|
|
NPQH-DK-M7-Q6-P10PUSH-IN FITTING |
4,369 |
|
- |
NPQH | Bulk | Obsolete | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | M7 | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
NPQH-DK-G18-Q6-P10PUSH-IN FITTING |
1,969 |
|
- |
NPQH | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | G1/8" | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
NPQH-DK-M5-Q4-P10PUSH-IN FITTING |
3,739 |
|
- |
NPQH | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | M5 | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
NPQH-D-S4-E-P10PUSH-IN SLEEVE |
3,790 |
|
- |
NPQH | Bulk | Active | Straight Fitting | Push-In to Sleeve | 4mm OD Tubing | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | - | Free Hanging (In-Line) | Brass | Silver |
|
|
NPQH-DK-M7-Q4-P10PUSH-IN FITTING |
2,734 |
|
- |
NPQH | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | M7 | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
QSW-1/8-4PUSH-IN FITTING |
1,301 |
|
- |
QSW | Bulk | Active | Angled Fitting | Push-In to Threaded | 4mm OD Tubing | - | -13.8 ~ 87 PSI (-0.95 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Black |
|
QB-3/8-1/2-U-MPUSH-IN FITTING |
3,974 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/2" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

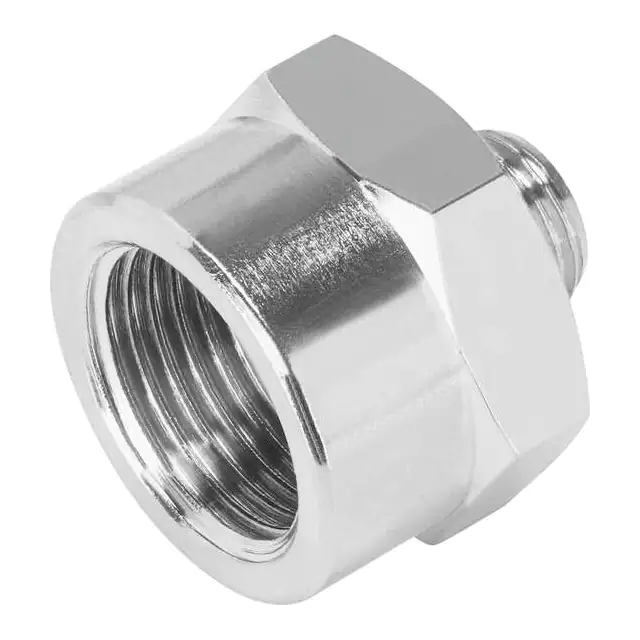

NPFC-R-G12-G38-FMREDUCING NIPPLE |
1,384 |
|
规格书 |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/2, G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
|
QSMY-2PUSH-IN Y-CONNECTOR |
3,658 |
|
- |
QSMY | Bulk | Active | Straight Fitting | Push-In | 2mm OD Tubing | - | -13.8 ~ 87 PSI (-0.95 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | Blue |
|
|
QS-G3/8-10-50PUSH-IN FITTING |
1,302 |
|
- |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -13.8 ~ 87 PSI (-0.95 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Brass | Blue |
|
|
QB-3/8-3/8-I-UPUSH-IN FITTING |
1,607 |
|
- |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 3/8" OD Tubing | - | 13.8 ~ 145 PSI (0.95 ~ 10 bar) | 0°C ~ 60°C | NPT 3/8" | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
QBF-1/4-5/32-UPUSH-IN FITTING |
3,129 |
|
- |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 5/32" OD Tubing | - | 13.8 ~ 145 PSI (0.95 ~ 10 bar) | 0°C ~ 60°C | NPT1/4 | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
NPQH-D-G12-S12-P10PUSH-IN FITTING |
1,824 |
|
- |
NPQH | Bulk | Active | Straight Fitting | Push-In to Sleeve | 12mm ID Piping | - | -13.8 ~ 290 PSI (-0.95 ~ 20 bar) | 0°C ~ 150°C | G1/2 | Free Hanging (In-Line) | Nickel Plated Brass | Silver |
|
|
QBLV-1/8-5/32-UPUSH-IN L-FITTING |
2,732 |
|
- |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 5/32" OD Tubing | - | 13.8 ~ 145 PSI (0.95 ~ 10 bar) | 0°C ~ 60°C | NPT1/8 | Free Hanging (In-Line) | Nickel Plated Brass | Black |
|
|
QS-8-50PUSH-IN CONNECTOR |
3,192 |
|
- |
QS | Bulk | Active | Straight Fitting | Push-In to Cartridge | 8mm OD Tubing | - | -13.8 ~ 87 PSI (-0.95 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | Blue |
|
|
QBLV-10-32-UNF-3/16-UPUSH-IN L-FITTING |
2,763 |
|
- |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 3/16" OD Tubing | - | 13.8 ~ 145 PSI (0.95 ~ 10 bar) | 0°C ~ 60°C | UNF10-32 | Free Hanging (In-Line) | Brass | Gray |
