购物车接头、耦合器和分配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 连接方式 | 适用范围/相关产品 | 特性 | 工作压力 | 工作温度 | 螺纹尺寸 | 安装类型 | 材质 | 颜色 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

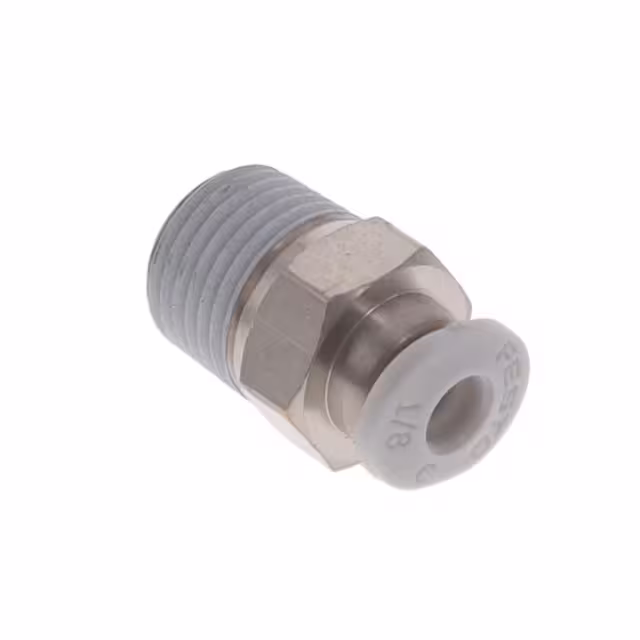

QBM-1/8-1/8-U-MPUSH-IN FITTING |
3,424 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QB-1/8-5/32-UPUSH-IN FITTING |
4,901 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-1/8-1/4-U-MPUSH-IN FITTING |
1,711 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-G1/8-4PUSH-IN FITTING |
1,994 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSM-1/8-6PUSH-IN FITTING |
3,097 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-1/4-4PUSH-IN FITTING |
2,400 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-L-2M5-MFELBOW FITTING |
2,192 |
|
规格书 |
- | Bulk | Active | Elbow Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-R-M7-M5-MFREDUCING NIPPLE |
1,810 |
|
规格书 |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | M5, M7 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-1/4-1/4-U-MPUSH-IN FITTING |
3,840 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/4-18 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
|
QB-1/4-1/4-UPUSH-IN FITTING |
4,440 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/4-18 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QBM-10-32-UNF-1/8-UPUSH-IN FITTING |
2,251 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | UNF10-32 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
|
QB-1/8-5/16-UPUSH-IN FITTING |
4,709 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 5/16" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/8-8PUSH-IN FITTING |
4,736 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-10-32-UNF-5/32-UPUSH-IN FITTING |
3,911 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | UNF10-32 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/4-8PUSH-IN FITTING |
4,829 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSM-M5-1/8-I-U-MPUSH-IN FITTING |
4,546 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M5 | Free Hanging (In-Line) | Stainless Steel | - |
|
QS-G1/8-4-IPUSH-IN FITTING |
4,571 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-10-32-UNF-1/4-UPUSH-IN FITTING |
1,234 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | UNF10-32 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
|
QB-3/8-1/4-UPUSH-IN FITTING |
3,587 |
|
规格书 |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-3/8-6PUSH-IN FITTING |
2,127 |
|
规格书 |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
