购物车计数器、计时器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 工作模式 | 计数速率 | 时间格式 | 每行字符数量 | 显示类型 | 显示字符 - 高度 | 输入类型 | 输出类型 | 电压 - 电源 | 复位 | 面板开孔尺寸 | 安装类型 | 端接样式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700TN001048150D10023COUNTER LCD 6 CHAR 100-230V PNL |
3,840 |
|
规格书 |
700 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 100 ~ 230VAC, 48 ~ 150VDC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|

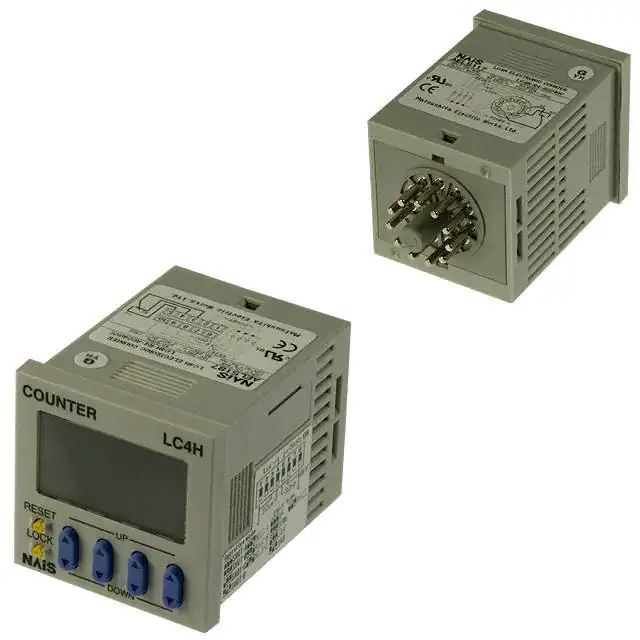

LC4H-R4-AC240VCOUNTER LCD 4 CHAR 100-240V PNL |
3,865 |
|
规格书 |
LC4H | Bulk | Obsolete | Preset | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | - | No Voltage | Relay | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
701P7R-104COUNTER LCD 6 CHAR 5-12V T/H |
2,806 |
|
规格书 |
700 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters, Green Backlight | 0.275" (7.00mm) | Voltage | - | 5 ~ 12VDC, 12VDC (Backlight) | External | - | Through Hole | PC Pin | - |
|
|
701P7R-114COUNTER LCD 6 CHAR 12-48V T/H |
1,435 |
|
规格书 |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters, Green Backlight | 0.275" (7.00mm) | Voltage | - | 12 ~ 48VDC | External | - | Through Hole | PC Pin | - |
|
|
700DN00100512D0612ACOUNTER LCD 6 CHAR 6-12V PNL MT |
1,759 |
|
规格书 |
700 | Bulk | Active | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 6 ~ 12VAC, 5 ~ 12VDC | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.187" (4.7mm) | IP66 - Dust Tight, Water Resistant |
|
|
14760001COUNTER 7 CHAR 4.5-10V PANEL MT |
3,488 |
|
规格书 |
2000 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | No Display | - | Voltage | - | 4.5 ~ 10VDC | Non-Resettable | - | Panel Mount | Solder Turret | - |
|
|
14760012COUNTER 7 CHAR 10-34V PANEL MT |
3,164 |
|
规格书 |
2000 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | No Display | - | Voltage | - | 10 ~ 34VDC | Non-Resettable | - | Panel Mount | Solder Turret | - |
|

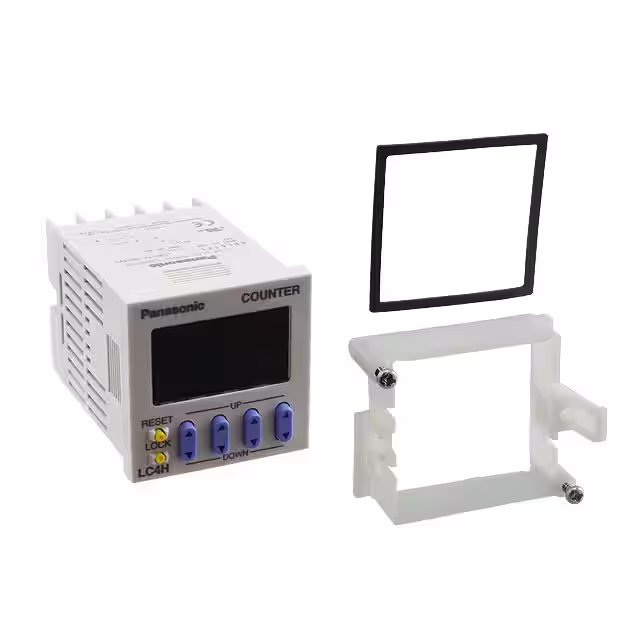

LC4H-T4-DC24VSCOUNTER LCD 4 CHAR 12-24V PNL MT |
4,356 |
|
规格书 |
LC4H | Bulk | Obsolete | Preset | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | - | No Voltage | Solid State | 12 ~ 24VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

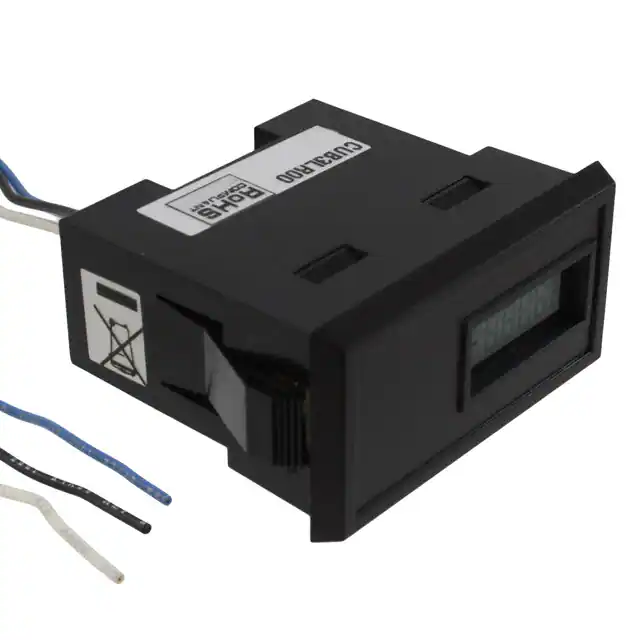

CUB3LR00COUNTER LCD 6 CHAR 3.6V PANEL MT |
3,291 |
|
规格书 |
CUB3 | Box | Obsolete | Totalizer | Up | 100Hz | - | 6 | LCD - Black Characters | 0.200" (5.10mm) | No Voltage | - | Battery, 3.6VDC | External | Rectangular - 50.00mm x 25.00mm | Panel Mount | Wire Leads | - |
|
|
14760028COUNTER 7 CHAR 4.5-10V T/H |
2,387 |
|
规格书 |
2000 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | No Display | - | Voltage | - | 4.5 ~ 10VDC | Non-Resettable | - | Through Hole | PC Pin | - |
|
GEM10060COUNTER LED 6 CHAR 115/230V PNL |
1,063 |
|
规格书 |
GEMINI | Bulk | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 10kHz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage | Relay, Solid State | 115/230VAC | External, Front Panel, Programmable | Rectangular - 127.00mm x 63.50mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
LC4H-R6-DC24VCOUNTER LCD 6 CHAR 12-48V PNL MT |
1,153 |
|
规格书 |
LC4H | Bulk | Obsolete | Preset | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | - | No Voltage | Relay | 12 ~ 48VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|

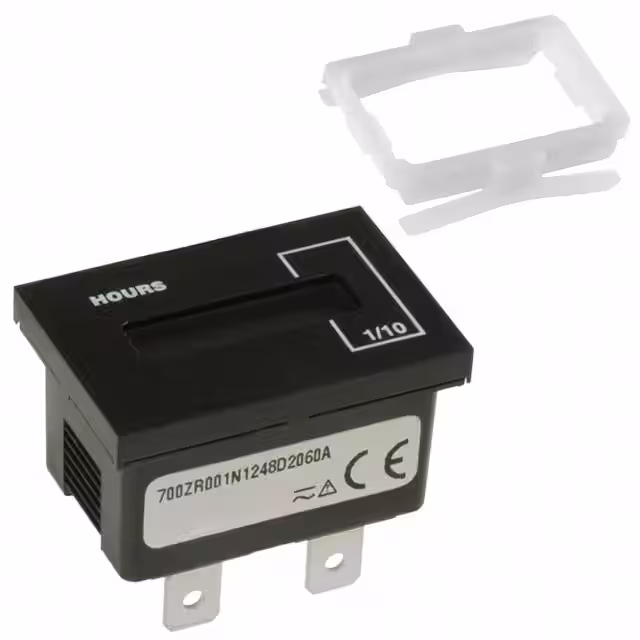

700ZR001N1248D2060ACOUNTER LCD 6 CHAR 20-60V PNL MT |
1,579 |
|
规格书 |
700 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 20 ~ 60VAC, 12 ~ 48VDC | External | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
700ZR001N48150D100230ACOUNTER LCD 6 CHAR 100-230V PNL |
3,434 |
|
规格书 |
700 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.196" (5.00mm) | Voltage | - | 100 ~ 230VAC, 48 ~ 150VDC | External | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
701SR60101248DCOUNTER LCD 6 CHAR 12-48V PNL MT |
3,435 |
|
规格书 |
700 | - | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters, Green Backlight | 0.196" (5.00mm) | Voltage | - | 12 ~ 48VDC | External | Square - 45.00mm x 45.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
98303-92COUNTER LCD 6 CHAR 9-64V PNL MT |
1,873 |
|
规格书 |
98000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.240" (6.00mm) | Voltage | - | 9 ~ 64VDC | External | Rectangular - 36.83mm x 24.13mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|
98313-12COUNTER LCD 6 CHAR 9-64V PNL MT |
2,059 |
|
规格书 |
98000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.240" (6.00mm) | Voltage | - | 9 ~ 64VDC | Non-Resettable | Rectangular - 36.83mm x 24.13mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|
98323-81COUNTER LCD 6 CHAR 9-64V PNL MT |
3,676 |
|
规格书 |
98000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.240" (6.00mm) | Voltage | - | 9 ~ 64VDC | Non-Resettable | Rectangular - 36.83mm x 24.13mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|
98311-57COUNTER LCD 6 CHAR 9-64V PNL MT |
3,205 |
|
规格书 |
98000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.240" (6.00mm) | Voltage | - | 9 ~ 64VDC | Non-Resettable | Rectangular - 36.83mm x 24.13mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
|
98302-93COUNTER LCD 6 CHAR 9-64V PNL MT |
3,996 |
|
规格书 |
98000 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.9hrs | 6 | LCD - Black Characters | 0.240" (6.00mm) | Voltage | - | 9 ~ 64VDC | External | Circular - 50.80mm Dia | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof |
