购物车计数器、计时器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 工作模式 | 计数速率 | 时间格式 | 每行字符数量 | 显示类型 | 显示字符 - 高度 | 输入类型 | 输出类型 | 电压 - 电源 | 复位 | 面板开孔尺寸 | 安装类型 | 端接样式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

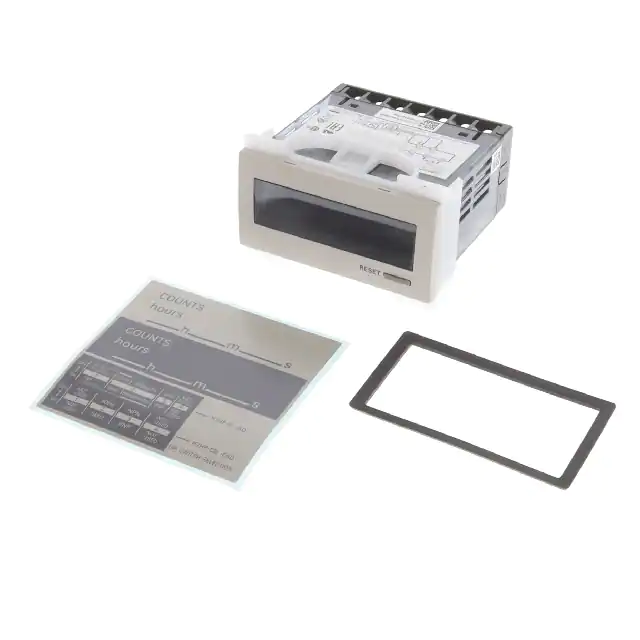

H7HP-ACOUNTER LCD 6 CHAR 100-240V PNL |
3,801 |
|
规格书 |
H7HP | Bulk | Obsolete | Time Counter, Totalizer | Up, Down, Individual | 30Hz, 5kHz | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.590" (15.00mm) | No Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
88228-26COUNTER HOUR METER |
2,102 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H5CC-AUDTIMER,SCREW,CON,12-48 DC,24 AC |
2,107 |
|
规格书 |
H5CC | Box | Active | Time Counter (Hour Meter) | Up, Down | - | Multiple | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage | Relay | 24VAC, 12 ~ 48VDC | External, Front Panel, Programmable | Square - 45.60mm x 45.60mm | DIN Rail | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H5CC-AUTIMER,SCREW,CON,100-240 AC |
3,231 |
|
规格书 |
H5CC | Box | Active | Time Counter (Hour Meter) | Up, Down | - | Multiple | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.60mm x 45.60mm | DIN Rail | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

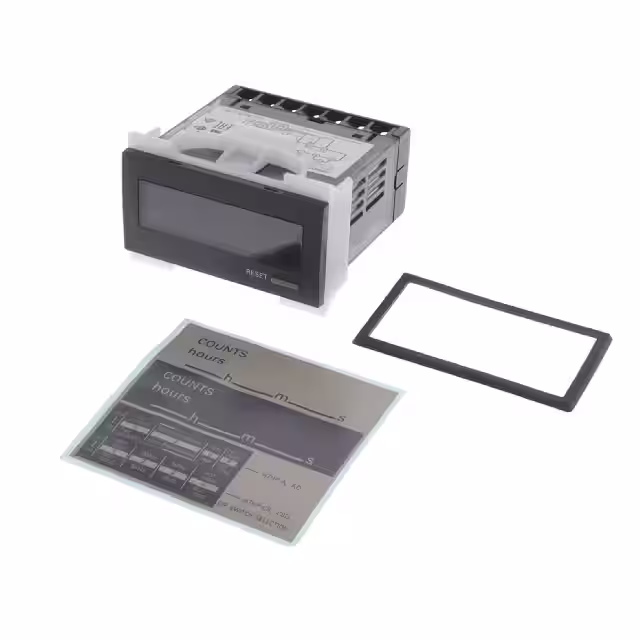

H7HP-ABCOUNTER LCD 6 CHAR 100-240V PNL |
4,832 |
|
规格书 |
H7HP | Bulk | Obsolete | Time Counter, Totalizer | Up, Down, Individual | 30Hz, 5kHz | 99999.9hrs; 99hrs59min59sec | 6 | LCD - Red Characters, Backlight | 0.590" (15.00mm) | No Voltage | - | 100 ~ 240VAC | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

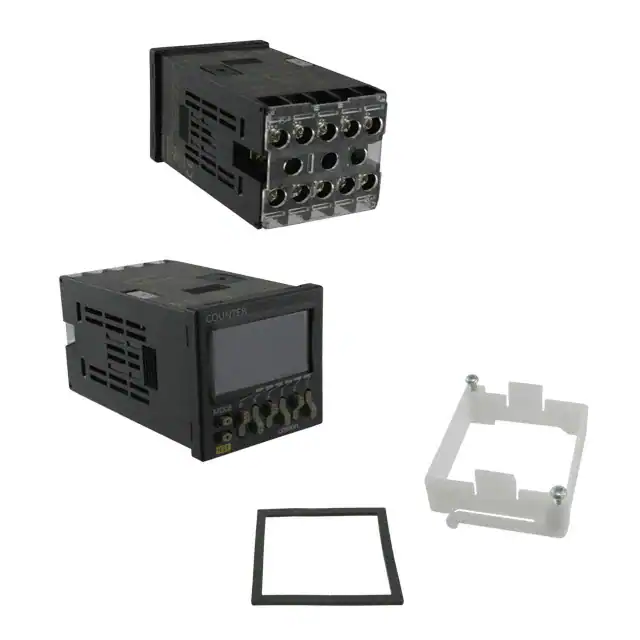

H7CX-AW-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
1,469 |
|
规格书 |
H7CX | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

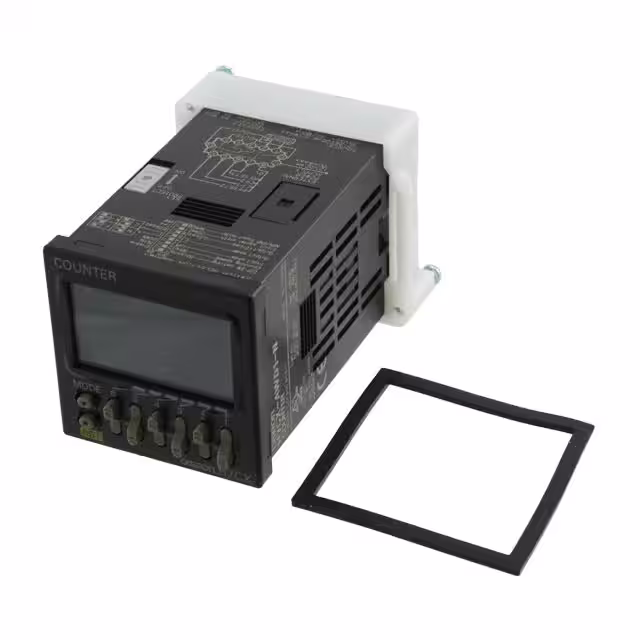

H7CX-AWD1-N DC12-24/AC24COUNTER LCD 6 CHAR 24V PANEL MT |
3,849 |
|
规格书 |
H7CX | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CX-A4W-N AC100-240COUNTER LCD 4 CHAR 100-240V PNL |
1,839 |
|
规格书 |
H7CX | Bulk | Obsolete | Batch, Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.472" (12.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CX-AU-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
4,647 |
|
规格书 |
H7CX | Bulk | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay, Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-AUD1-N DC12-24/AC24COUNTER LCD 6 CHAR 24V PANEL MT |
4,719 |
|
规格书 |
H7CX | Bulk | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay, Solid State | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-AUSD1-N DC12-24/AC24COUNTER LCD 6 CHAR 24V PANEL MT |
4,655 |
|
规格书 |
H7CX | Bulk | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-AWS-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
4,119 |
|
规格书 |
H7CX | Bulk | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-AWSD1-N DC12-24/AC24COUNTER LCD 6 CHAR 24V PANEL MT |
1,629 |
|
规格书 |
H7CX | Bulk | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
FKA03XW24COUNTER VOLTAGE INPUT |
2,787 |
|
- |
FKA | Box | Obsolete | Totalizer | Up | 30Hz | - | 8 | LCD - Black Characters, Green Backlight | 0.315" (8.00mm) | Voltage | - | None Required (Battery Included) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
KC-LCDC-48-6T-24VDCCOUNTERS |
4,051 |
|
规格书 |
- | Box | Active | Tachometer | Up | 50kHz | 999999 | 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm) | Voltage | Relay | 10 ~ 30VDC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
KC-LED-96-1T-24VDCCOUNTERS |
2,892 |
|
规格书 |
- | Box | Active | Tachometer | Up | 30Hz, 60kHz | 999999hrs | 6 | LED - White Characters | 0.551" (14.00mm) | Voltage | Relay | 10 ~ 30VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
|
LGB00000COUNTER LCD 8 CHAR 115/230V PNL |
1,309 |
|
规格书 |
Legend | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 17kHz | - | 8, 8 | LCD - Green Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
2701-13MFFG18" RCP FT TG |
4,867 |
|
规格书 |
- | Active | Time Counter (Hour Meter) | Up | - | - | 6 | Decade Wheel | 0.252" (6.40mm) | No Voltage | Analog | - | Non-Resettable | - | Panel Mount | Wire Leads | - | |
|
|
88656-00COUNTER HOUR METER |
3,411 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LGPBF100COUNTER LCD 8 CHAR 115/230V PNL |
1,454 |
|
规格书 |
Legend+ | Box | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 15kHz | - | 8, 8 | LCD - Red Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
