购物车三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP266J(V4-TPR,ETRIAC COUPLER; ZC; VDE; SO6; TAP Toshiba Semiconductor and Storage |
3,000 |
|
规格书 |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP266J(V4T7TL,ETRIAC COUPLER; ZC; 7MA TRIGGER C Toshiba Semiconductor and Storage |
2,900 |
|
规格书 |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP266J(V4T7,ETRIAC COUPLER; ZC; 7MA TRIGGER C Toshiba Semiconductor and Storage |
125 |
|
规格书 |
TLP | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | - |
|
|
TLP268J(TPL,EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
4,072 |
|
规格书 |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP267J(TPL,EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
2,966 |
|
规格书 |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP268J(EX36 PB-F TRIAC COUPLER LOW TRIGG Toshiba Semiconductor and Storage |
111 |
|
规格书 |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP268J(T2-TPL,ETRIAC COUPLER; 2MA LOW TRIGGER C Toshiba Semiconductor and Storage |
11,000 |
|
规格书 |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
|
TLP267J(T2-TPL,ETRIAC COUPLER; 2MA LOW TRIGGER C Toshiba Semiconductor and Storage |
5,700 |
|
规格书 |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs (Typ) | 3mA | 70 mA | 200µA (Typ) | 100µs | 1.27V | 30 mA | -40°C ~ 100°C | Surface Mount | 6-SOP | CQC, cUR, UR |
|
TLP3073(TP1,FOPTO TRIAC COUPLER; NON-ZERO-VOL Toshiba Semiconductor and Storage |
553 |
|
规格书 |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 800 V | 2kV/µs (Typ) | 5mA | 100 mA | 1mA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUR, UR |
|

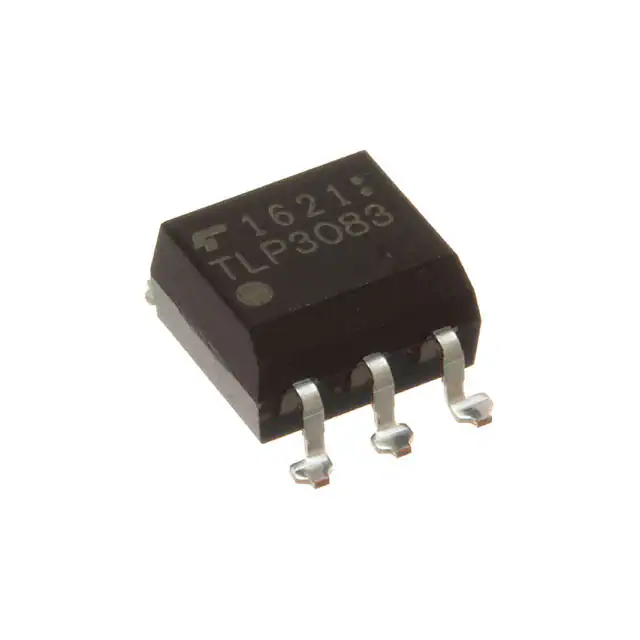

TLP3083F(TP4,FPHOTOTRIAC; ZVC; WIDE CREEPAGE; Toshiba Semiconductor and Storage |
5,956 |
|
规格书 |
- | 6-SMD, Gull Wing, 5 Leads | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 2kV/µs (Typ) | 5mA | 100 mA | 600µA | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | CQC, CSA, cUL, UL, VDE |
