购物车三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IL4108OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,532 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
FOD420SVOPTOISOLATOR 5KV TRIAC 6SMD |
1,451 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|
IL410-X009TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,345 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|

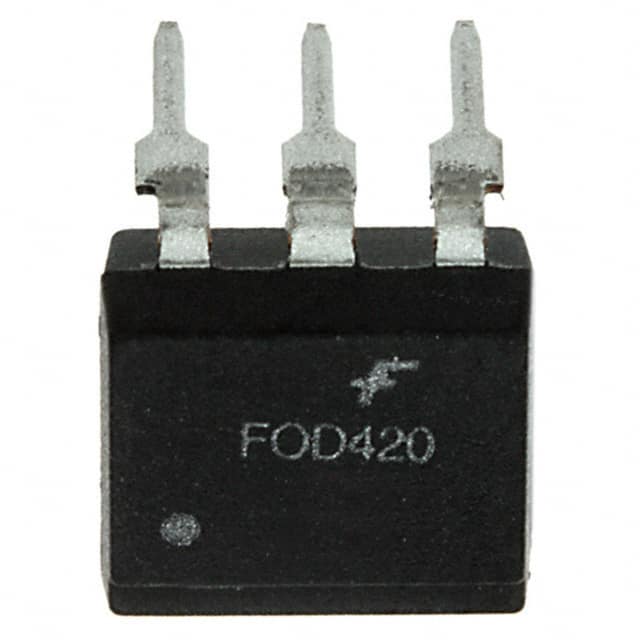

FOD420OPTOISOLATOR 5KV TRIAC 6DIP |
1,250 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
|
|
FOD420SOPTOISOLATOR 5KV TRIAC 6SMD |
784 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL |
|

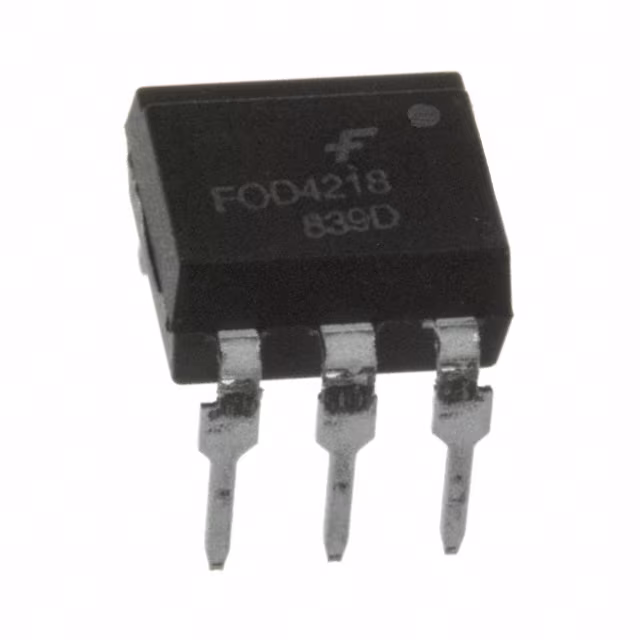

FOD4218OPTOISOLATOR 5KV TRIAC 6DIP |
1,040 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUL, FIMKO, UL |
|
|
FOD4218SVOPTOISOLATOR 5KV TRIAC 6SMD |
520 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
.jpg)
|
IL4216OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,814 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 600 V | 10kV/µs | 700µA (Typ) | 300 mA | 200µA | - | 1.3V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, FIMKO, UR |
|
|
IL4118-X007OPTOISOLATOR 5.3KV TRIAC |
627 |
|
规格书 |
- | 6-SMD | Tube | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR |
|
|
IL4118-X009TOPTOISOLATOR 5.3KV TRIAC |
1,977 |
|
规格书 |
- | 6-SMD | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | - | BSI, CSA, cUR, FIMKO, UR |
|
FOD4208SDVOPTOISOLATOR 5KV TRIAC 6SMD |
6,505 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|
FOD4118OPTOISOLATOR 5KV TRIAC 6DIP |
1,106 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, UL |
|
FOD4218SDVOPTOISOLATOR 5KV TRIAC 6SMDIP-B |
8,020 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 800 V | 10kV/µs | 1.3mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUL, FIMKO, UL, VDE |
|

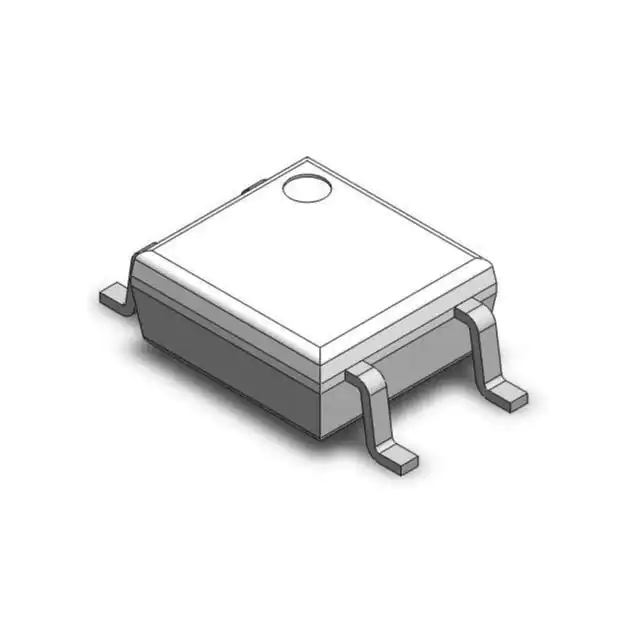

APC-3052SOP4, DC INPUT, RANDOM-PHASE PHO |
8,789 |
|
规格书 |
APC-305X | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 10mA | - | 257µA | - | 1.24V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SOP | CQC, CSA, cUL, UL, VDE |
|
|
MOC3021TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
599 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
MOC3010VMOPTOISOLATOR 4.17KV TRIAC 6DIP |
960 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
MOC3010SMOPTOISOLATOR 4.17KV TRIAC 6SMD |
194 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
MOC3060XOPTOISOLATOR 5.3KV TRIAC 6DIP |
862 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 600V/µs | 30mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
MOC3043XOPTOISOLATOR 5.3KV TRIAC 6DIP |
200 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 400 V | 600V/µs | 5mA | - | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
MOC3022TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
200 |
|
规格书 |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 4170Vrms | 400 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
