购物车逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV1S9209ACCSP-10YV#SC0IPM DRIVER (ACTIVE HIGH OUTPUT), Renesas Electronics Corporation |
1,000 |
|
规格书 |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
PS9513L3-AXOPTOISO 5KV OPEN COLL 8DIP GW Renesas Electronics Corporation |
760 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|

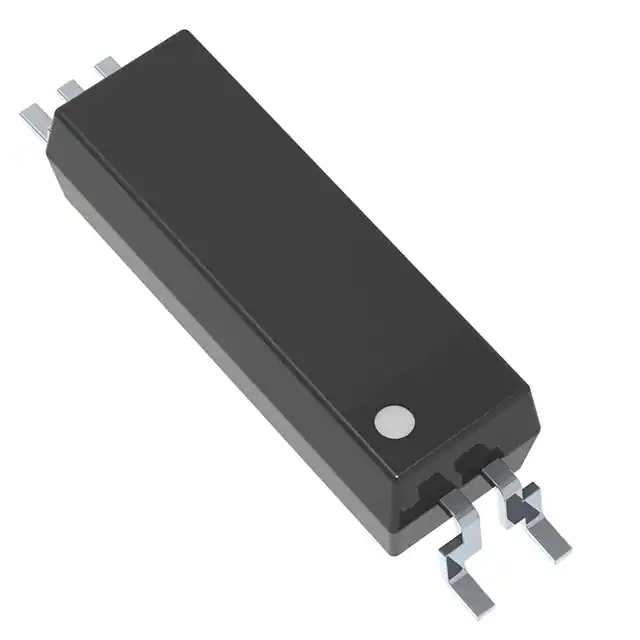

RV1S9260ACCSP-10YV#SC0OPTO COUPLER IN 5PIN SSOP Renesas Electronics Corporation |
880 |
|
规格书 |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|

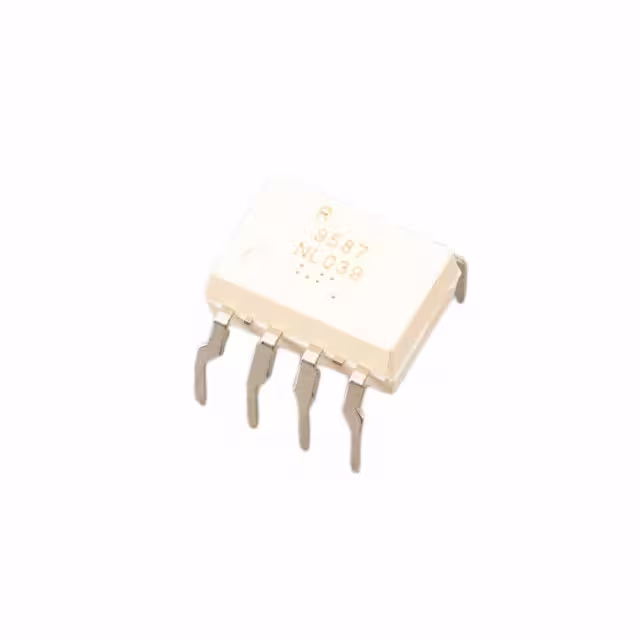

PS9587L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP Renesas Electronics Corporation |
600 |
|
规格书 |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
RV1S9060ACCSP-10YV#SC0HI-SPEED OPTOCPLR LSO-5 Renesas Electronics Corporation |
2,113 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 6V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSO |
|
|
PS9013-Y-V-AXLSO-5 Renesas Electronics Corporation |
685 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 25mA | 4.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
PS9121-AXOPTOISO 3.75KV OPN COLLECTOR 5SO Renesas Electronics Corporation |
492 |
|
规格书 |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Not For New Designs | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 15Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 2.7V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|

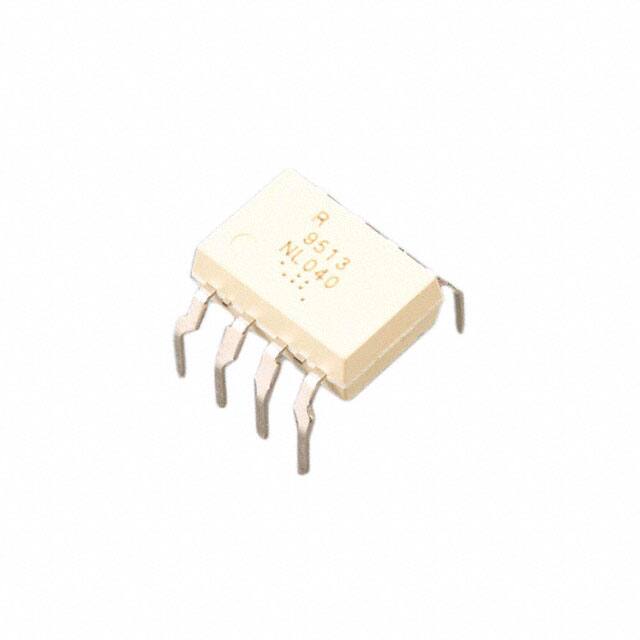

PS9513L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP Renesas Electronics Corporation |
623 |
|
规格书 |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
RV1S9062ACCSP-10YC#SC0OPTOISO 5KV 1 PUSH PULL 5-LSOP Renesas Electronics Corporation |
2,800 |
|
规格书 |
RV | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
|
RV1S9061ACCSP-10YV#SC0LSO-5 Renesas Electronics Corporation |
2,793 |
|
规格书 |
RV | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.55V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
