购物车逻辑输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 通道数 | 输入 - 侧 1/侧 2 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 输入类型 | 输出类型 | 电流 - 输出/通道 | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 上升/下降时间（典型值） | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11L1MOPTOISO 4.17KV OPN COLL 6DIP onsemi |
34,089 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
H11L1SR2MOPTOISO 4.17KV OPN COLL 6SMD onsemi |
15,867 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
H11L1SMOPTOISO 4.17KV OPN COLL 6SMD onsemi |
5,847 |
|
规格书 |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11L2SR2MOPTOISO 4.17KV OPN COLL 6SMD onsemi |
3,024 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11L1SR2VMOPTOISO 4.17KV OPN COLL 6SMD onsemi |
4,730 |
|
规格书 |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
6N137SMOPTOISO 5KV 1CH OPEN COLL 8SMD onsemi |
3,171 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
6N137MOPTOISO 5KV 1CH OPEN COLL 8DIP onsemi |
2,741 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
6N137SDMOPTOISO 5KV 1CH OPEN COLL 8SMD onsemi |
18,959 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|

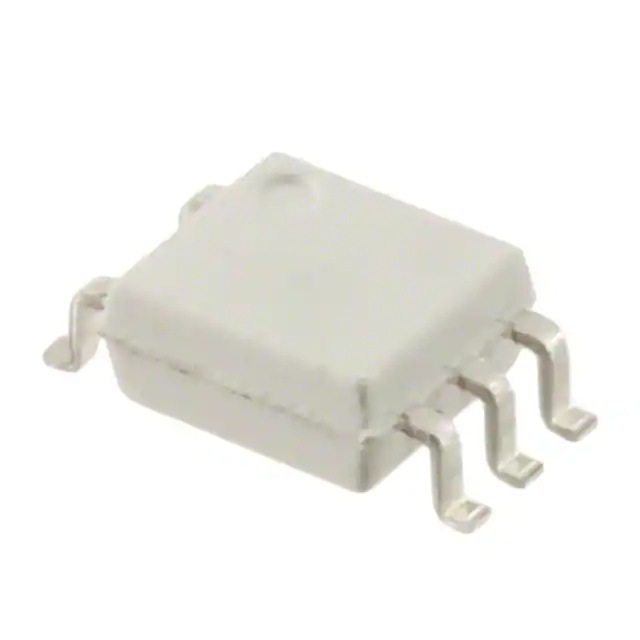

FODM8061R2OPTOISO 3.75KV OPEN COLL 5MFP onsemi |
4,753 |
|
规格书 |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 80ns, 80ns | 20ns, 10ns | 1.45V | 50mA | 3V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 5-Mini-Flat |
|
HCPL0637OPTOISO 3.75KV 2CH OPEN COLL 8SO onsemi |
247 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 5kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
