购物车光电中断器 - 槽型 - 晶体管输出
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 感应距离 | 感应方法 | 输出配置 | 电流 - 直流正向（If）（最大值） | 电流 - 集电极 (Ic)（最大值） | 电压 - 集电极发射极击穿（最大值） | 响应时间 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE-SX950-W 3MSENSOR OPT SLOT NPN MODULE 3M |
3,267 |
|
规格书 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

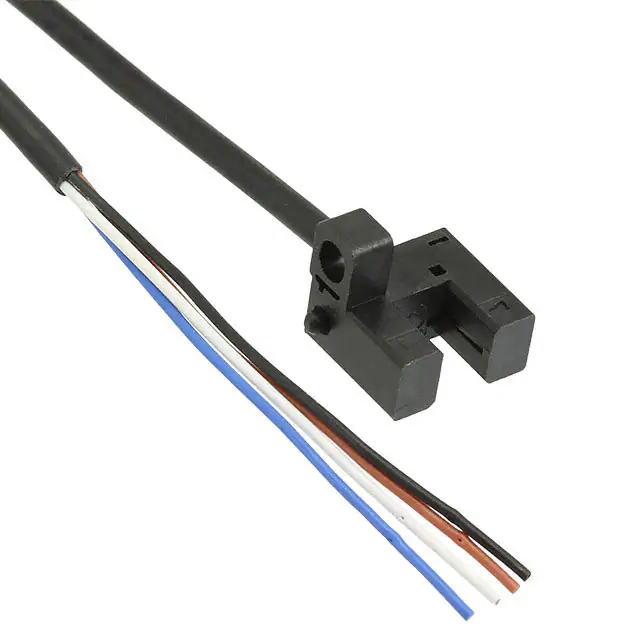

EE-SX953-W 3MSENSOR OPT SLOT NPN MODULE 3M |
3,770 |
|
规格书 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

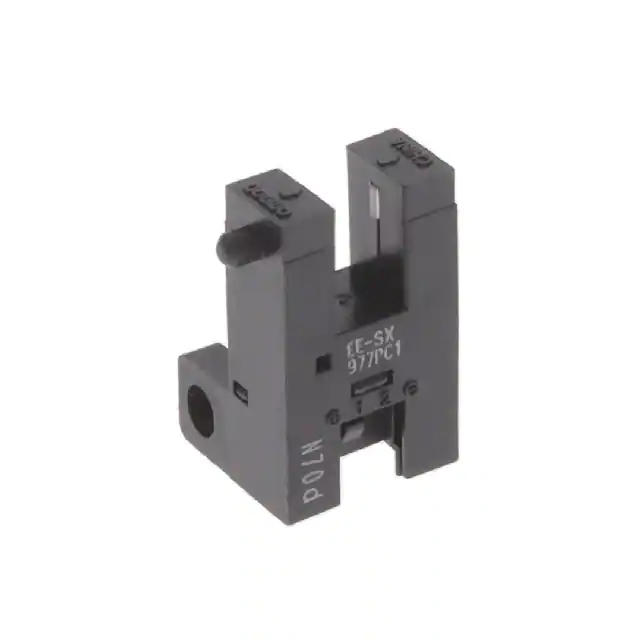

EE-SX977P-C1SENSOR OPT SLOT MODULE R-SHAPE |
2,608 |
|
规格书 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

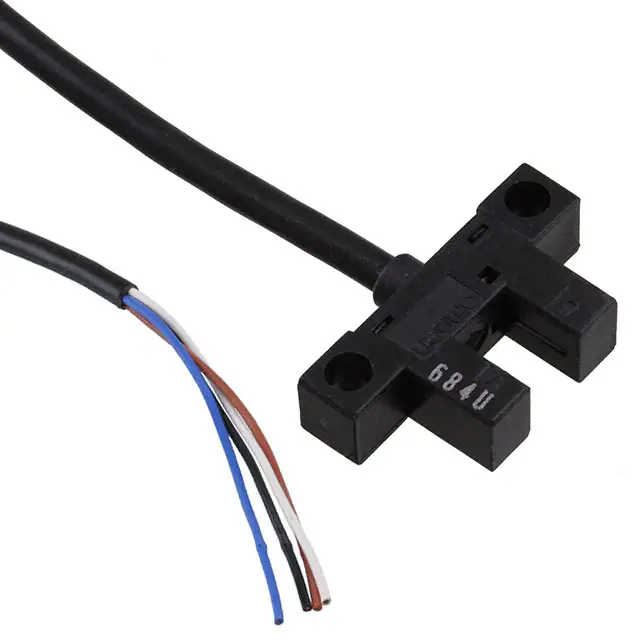

EE-SX950P-R 1MSENS OPT SLOT PNP MOD 1M ROBOTIC |
4,909 |
|
规格书 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

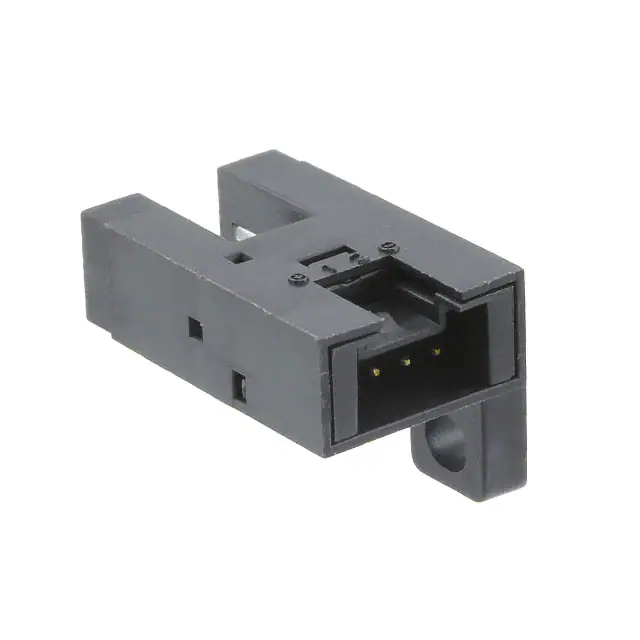

EE-SX976P-C1SENSOR OPT SLOT MODULE F-SHAPE |
4,406 |
|
规格书 |
- | Module, Slotted | Bulk | Active | 0.020" (0.5mm) | Through-Beam | - | 50 mA | 20 mA | 30 V | 4µs | -25°C ~ 85°C | - | - | Chassis Mount, M3 Screw |
|

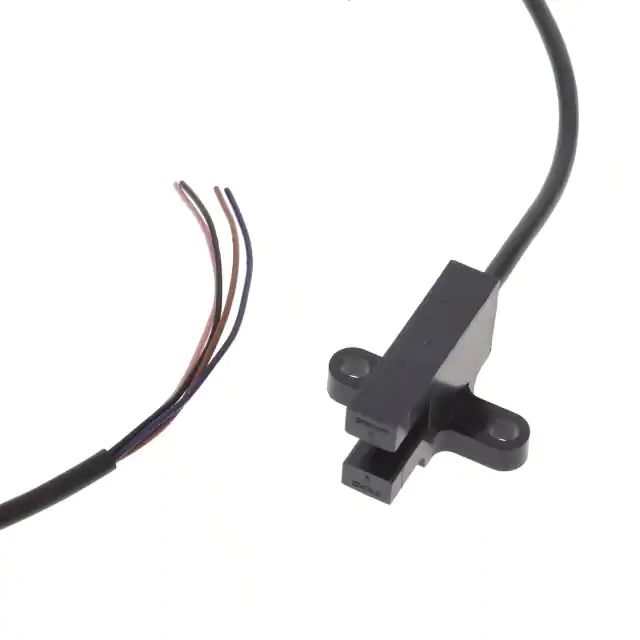

EE-SX675P-WR 1MSENSOR OPT SLOT PNP MODULE 1M CB |
3,565 |
|
规格书 |
EE-SX67 | Module, Pre-Wired | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Dark-ON/Light-ON - Selectable | - | 50 mA | - | - | -25°C ~ 55°C (TA) | - | - | Chassis Mount |
|
SL10VB6VYSL10 SERIES: SLOT SENSORSLOT |
3,367 |
|
规格书 |
SL10 | Module, Wire Leads, Slot Type | Box | Active | 0.394" (10mm) | Through-Beam | NPN/PNP - Dark-ON/Light-ON - Selectable | - | - | - | 1ms | -40°C ~ 70°C | - | - | Chassis Mount |
|

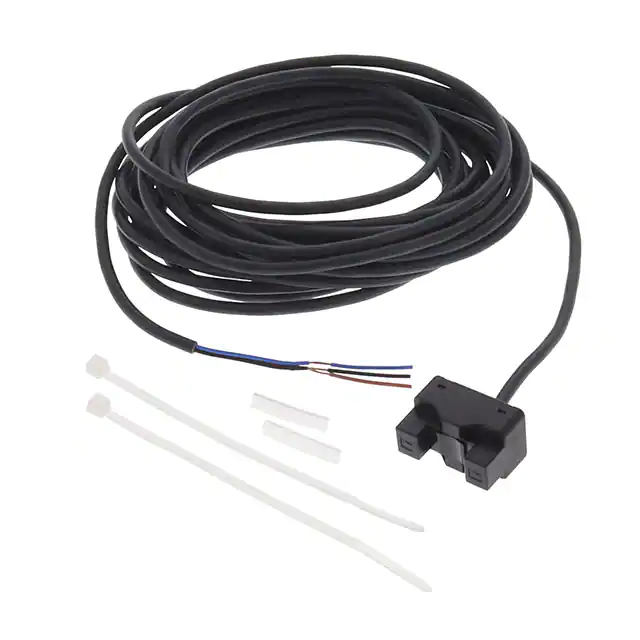

EE-SPX613 5MSENSOR OPT SLOT NPN MODUL 5M CBL |
2,304 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Active | 0.236" ~ 0.512" (6mm ~ 13mm) ADJ | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | - | - | - | - | -10°C ~ 55°C | - | - | Chassis Mount |
|
OPB841L55SENSOR OPT SLOT PHOTOTRAN PCB MT |
1,653 |
|
规格书 |
- | PCB Mount | Bulk | Active | 0.125" (3.18mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | - | -40°C ~ 85°C | - | - | Through Hole |
|

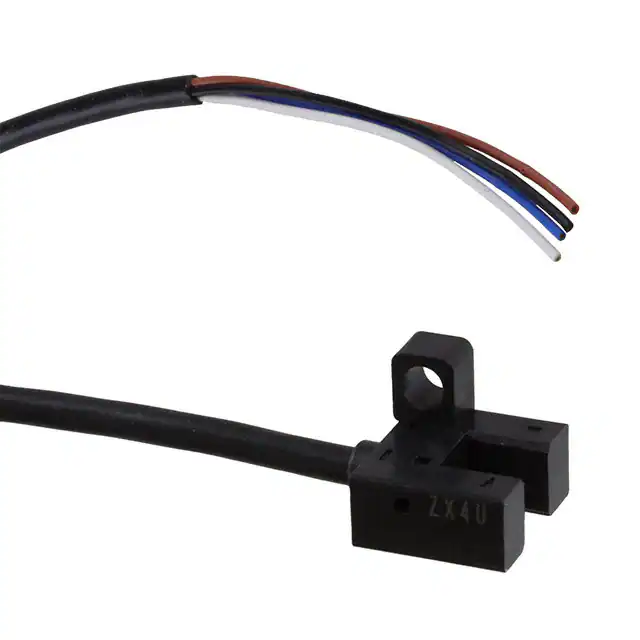

EE-SX952-R 3MSENS OPT SLOT NPN MOD 3M ROBOTIC |
1,880 |
|
规格书 |
EE-SX95 | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | NPN - Dark-ON/Light-ON - Selectable | 50 mA | 15 mA | 24 V | - | -25°C ~ 55°C | - | - | Chassis Mount |
|

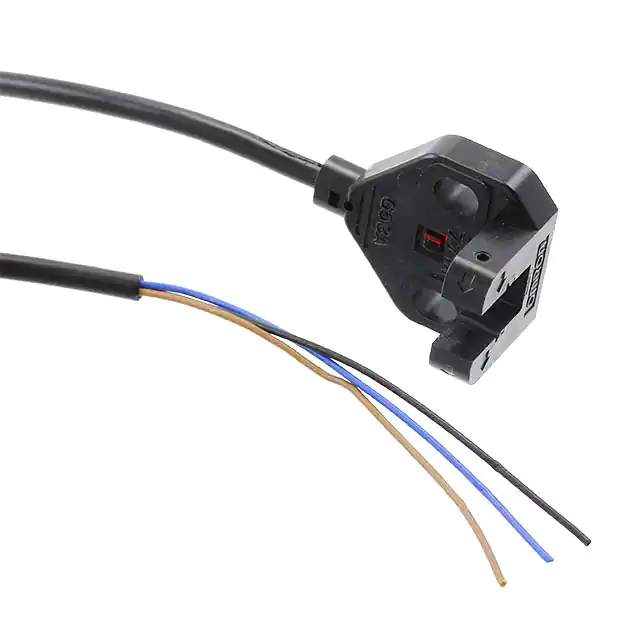

EE-SX771R 5MSENSOR OPT SLOT PNP MODULE 5M |
3,778 |
|
规格书 |
- | Module, Wire Leads, Slot Type | Bulk | Active | 0.197" (5mm) | Through-Beam | PNP - Open Collector/Dark-ON | - | - | - | - | -25°C ~ 55°C | - | - | Chassis Mount, M3 Screw |
|
ATIR0711S3.4X2.7MM REFLECTIVE PHOTO INTER |
870 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 0.071" (1.8mm) | Reflective | - | 50 mA | 20 mA | 35 V | 20µs | -25°C ~ 85°C | - | - | Surface Mount |
|
|
ATIR0711S-F3.4X2.7MM REFLECTIVE PHOTO INTER |
832 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 0.071" (1.8mm) | Reflective | - | 50 mA | 20 mA | 35 V | 20µs | -25°C ~ 85°C | - | - | Surface Mount |
|
|
ATIR0721DS3.4X2.7MM REFLECTIVE PHOTOINTERR |
840 |
|
规格书 |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 0.071" (1.8mm) | Reflective | - | 50 mA | 10 mA | 35 V | 80µs, 70µs | -25°C ~ 85°C | - | - | Surface Mount |
|

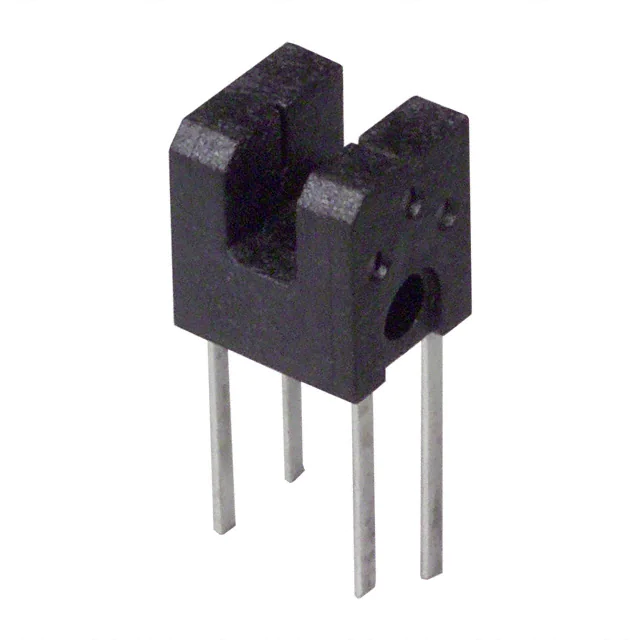

RPI-246SENSOR OPT SLOT PHOTOTRAN PCB MT |
889 |
|
规格书 |
- | PCB Mount | Bulk | Active | 0.079" (2mm) | Through-Beam | Phototransistor | 50 mA | 30 mA | 30 V | 10µs, 10µs | -25°C ~ 85°C | - | - | Through Hole |
|
|
ARA0212.6X7.5MM PHOTOINTERRUPTER LED |
747 |
|
规格书 |
- | Module, PC Pins, Slot Type | Bulk | Active | 0.197" (5mm) | Transmissive | - | 30 mA | 50 mA | 35 V | 15µs | -30°C ~ 85°C | - | - | Through Hole |
|
|
SL10VB6VSL10 SERIES: SLOT SENSOR; SLOT W |
2,225 |
|
规格书 |
SL10 | Module, Connector, Slot Type | Bulk | Active | 0.394" (10mm) | - | PNP/NPN | - | - | - | 1ms | -40°C ~ 70°C | - | - | Chassis Mount |
|
|
SLE30B6VQSLE30 EXPERT SERIES: TEACH MODE |
4,886 |
|
规格书 |
SLE30 | Module, Connector, Slot Type | Bulk | Active | 1.181" (30mm) | - | PNP/NPN | - | - | - | 500µs | -40°C ~ 70°C | - | - | Chassis Mount |
|
|
6037824SENSOR OPT SLOT PNP MODULE |
4,757 |
|
规格书 |
WFM | Module, Connector | Bulk | Active | 1.969" (50mm) | Optical Flag | PNP | - | - | - | 125µs | -10°C ~ 60°C (TA) | - | - | Chassis Mount |
|
|
6037819SENSOR OPT SLOT PNP MODULE |
4,125 |
|
规格书 |
WFM | Module, Connector | Bulk | Active | 1.181" (30mm) | Optical Flag | PNP | - | - | - | 125µs | -10°C ~ 60°C (TA) | - | - | Chassis Mount |
