当前位置：首页 > 商品目录 > 传感器，转换器 > 运动传感器 > 振动传感器

制造商	系列	封装/外壳	包装	产品状态	传感器类型	感应范围	灵敏度	输出类型	额定功率	工作温度	特性	安装类型	端接方式
Adafruit Industries LLC Advantech Corporation Amphenol PCB Piezotronics Amphenol Wilcoxon Sensing Technologies Analog Devices Inc. Banner Engineering Corporation BEANAIR SENSORS Broadsens Corporation Comus International DFRobot Goertek Microelectronics HAUBER Elektronik ifm efector, inc. KEMET Knowles Micro-Measurements (Division of Vishay Precision Group) Mide Technology National Control Devices NI Omron Electronics Inc-EMC Div Parallax Inc. Pepperl+Fuchs, Inc. Phoenix Contact Seeed SparkFun Electronics STI Vibration Monitoring STMicroelectronics TE Connectivity Measurement Specialties	* - BU D7A D7E D7H D7S DT DX80 ECOPACK® FDT HE100 HE101 ICP® iMEMS®, iSensor™ iSensor™ LDT LDTC PC420A PC420A-DA PC420A-EX PC420A-IS PC420ATP PC420DPP PC420V PC420V-DA PC420V-DV PC420V-EX PC420V-IS PC421 PCC420V PCC421 PCC423 PCH420V Performance Line Performance Plus Line PPA PR49 PR52 PR55 SDT Sure Cross® SVT Volture™ VS WIL	- 14-Module with Connector 14-VFLGA Module 2-DIP Module 6-LFLGA Module 6-TLGA Box Cantilever Magneto Film (Wafer) Cantilever Piezo Film (Wafer) Ceramic Cylinder, Threaded Cylinder, Threaded - M8 IoT Finished Device Module Nonstandard Piezo Film, Cantilever (Wafer) Radial, Can	Bag Box Bulk Case Retail Package Tape & Reel (TR) Tray	Active Discontinued at BomKey Last Time Buy Obsolete	- Acceleration Accelerometer Accelerometer, 2 Axis Accelerometer, 3 Axis Displacement Piezoelectric Vibration Vibration, Acceleration Vibration, Piezo Film	- -70 ~ 70 g 0.1Hz ~ 12kHz 0.3Hz ~ 10kHz 0Hz ~ 180Hz 0Hz ~ 4.5kHz 0Hz ~ 40Hz 0Hz ~ 42Hz 0Hz ~ 6kHz 0Hz ~ 90Hz 100 ~ 170 gal 10Hz ~ 15kHz 10Hz ~ 1kHz 10Hz ~ 240Hz 120Hz ~ 360Hz 1Hz ~ 10kHz 1Hz ~ 1kHz 1Hz ~ 6kHz 26Hz ~ 110Hz 2Hz ~ 10kHz 2Hz ~ 1kHz 2Hz ~ 2kHz 45Hz ~ 155Hz 50Hz ~ 4kHz 5Hz ~ 10kHz 60Hz ~ 140Hz 6kHz 75Hz ~ 175Hz 80Hz ~ 205Hz 90 ~ 170 gal ±1.2g, ±2.4g ±10g ±16g ±18g ±2000 gal ±2g ±2g ~ ±16g ±2g ~ ±8g ±2g, ±4g, ±8g ±32g ±50g ±8g ~ ±64g	- -148dB -15dBV/g -25dBV/g -40dB ±3dB -45dB ±4.5dB 0.3052mg/LSB 0.488mg/LSB 0.9535mg/LSB 1.192mg/LSB 1.1V/g 100mV/g 10mV/g 20 gal 200mV/g 250mV/g 4.768mg/LSB 50mV/g	- Analog Analog, Digital Digital I2C I2C, SPI LAN, Wireless LoRaWAN SPDT SPST SPST-NC SPST-NO Voltage Wireless	- 1.52V ~ 1.89V / 50μA 1.65V ~ 3.3V / 700µA 1.6V ~ 3.6V / 125µA 10V ~ 30V / 25mA 10V ~ 30V / 50mA 10V, 500µA / 12V, 8mA 125V, 100mA / 30V 100mA 125V, 10A ~ 250V, 10A 12V ~ 30V 13V, 4mA / 15V, 6A 18V ~ 30V / 120mA 18V ~ 30V / 220mA 18V ~ 30V / 25mA 18V ~ 30V / 50mA 18V ~ 30V / 700mA 2.1V ~ 3.6V 24V / 100mA 24V / 200mA 24V / 50mA 3.0 V ~ 3.6 V / 23.9mA 3.0 V ~ 3.6 V / 37mA 3.0 V ~ 3.6 V / 39mA 3.0 V ~ 3.6 V / 40mA 3.0 V ~ 5.5 V / 350µA 3.0V ~ 3.6V / 31.6mA 3.15 V ~ 3.6 V / 43mA 3.2V ~ 5.5V / 500µA 3.6V 3V, 5µA ~ 3V, 1mA 5 V ~ 12 V 5V ~ 15V / 6mA 5V, 100nA ~ 30V, 100mA 7.2V ~ 10.8V / 15mA 9.6V ~ 32V	- -10°C ~ 70°C -14°F ~ 158°F -20°C ~ 105°C -20°C ~ 60°C -20°C ~ 80°C -25°C ~ 60°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -30°C ~ 125°C -30°C ~ 60°C -30°C ~ 70°C -30°C ~ 80°C -30°C ~ 85°C -35°C ~ 60°C -37°C ~ 100°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 140°C -40°C ~ 60°C -40°C ~ 80°C -40°C ~ 85°C -40°C ~ 90°C -50°C ~ 125°C -55°C ~ 125°C -55°C ~ 85°C 0°C ~ 70°C 0°C ~ 85°C 260°C	- Built-In Amplifier Coaxial Cable, Integrated Electronic Piezoelectric (IEPE) Explosion Proof Explosion Proof, Intrinsically Safe High Frequency Intrinsically Safe Intrinsically Safe, Low Power, Waterproof, Wireless IP66 Piezoelectric Vibration Energy Harvesting, Hermetically Sealed Programmable Transceiver Waterproof	- Chassis Mount Connector DIN Rail Panel Mount Screw Mount Screw Mount, Magnet, Mounting Hole Screw Mount, Mounting Hole Surface Mount Through Hole User Defined	- Cable Cable with Connector Cable/Wire Leads Connector PC Pins Quick Connect Quick Connect - 0.187" (4.7mm) Rectangular Connector - 14 Pos Screw Terminal Solder Pads Solder Posts Threaded Wire Leads

全部重置

应用所有

结果:

振动传感器

图片	型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	传感器类型	感应范围	灵敏度	输出类型	额定功率	工作温度	特性	安装类型	端接方式
	ADIS16229AMLZ SENSOR VIBRATION W/RF TXRX Analog Devices Inc.	2,165	-	立即询价	规格书	-	Module	Bulk	Obsolete	Accelerometer, 2 Axis	±18g	0.3052mg/LSB	Digital	3.0 V ~ 3.6 V / 39mA	-40°C ~ 125°C	Transceiver	Screw Mount, Mounting Hole	Threaded
	ADCMXL3021BMLZ HIGH FREQ DIGITAL MEMS 3 AXIS AC Analog Devices Inc.	4,161	-	立即询价	规格书	-	Module	Tray	Active	Accelerometer, 3 Axis	±50g	0.9535mg/LSB	Digital	3.0V ~ 3.6V / 31.6mA	-40°C ~ 105°C	Programmable	Chassis Mount	Connector
	ADCMXL1021-1BMLZ HIGH FREQ DIGITAL MEMS 1 AXIS (Z Analog Devices Inc.	4,797	-	立即询价	规格书	iMEMS®, iSensor™	Module	Tray	Active	Acceleration	±50g	0.9535mg/LSB	Digital	3.0 V ~ 3.6 V / 23.9mA	-40°C ~ 105°C	Programmable	Chassis Mount	Connector

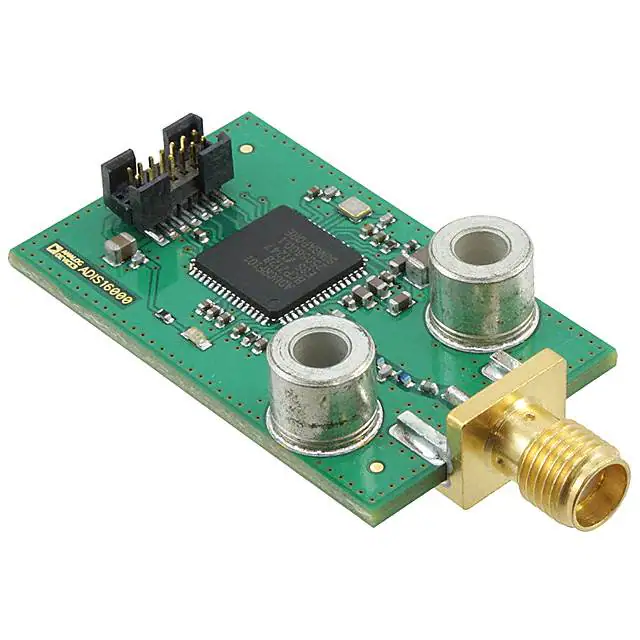

	ADIS16000AMLZ SENSOR VIBRATION W/RF TXRX Analog Devices Inc.	2,130	-	立即询价	规格书	-	14-Module with Connector	Box	Obsolete	Vibration	-	-	Digital	3.0 V ~ 3.6 V / 37mA	-40°C ~ 125°C	Transceiver	Connector	Threaded

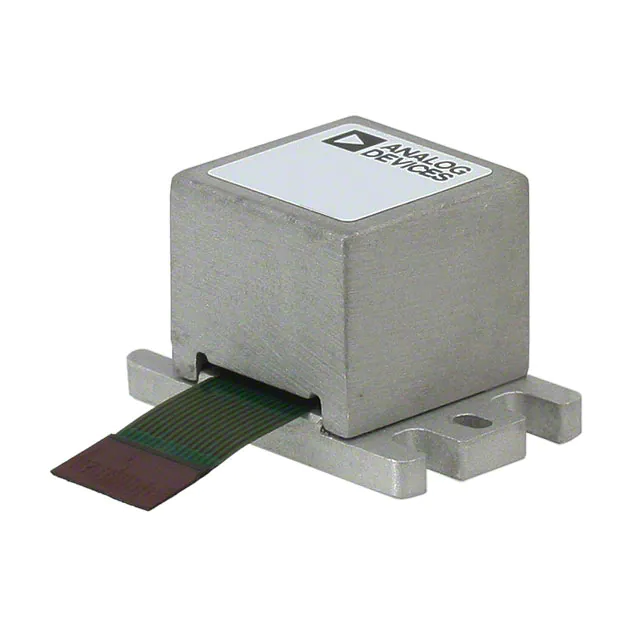

	ADIS16228CMLZ IC SENSOR DIGITAL TRI VIB 15-MOD Analog Devices Inc.	2,218	-	立即询价	规格书	iSensor™	Module	Tray	Obsolete	Acceleration	±18g	-	Digital	3.0 V ~ 3.6 V / 40mA	-40°C ~ 125°C	Programmable	Chassis Mount	-

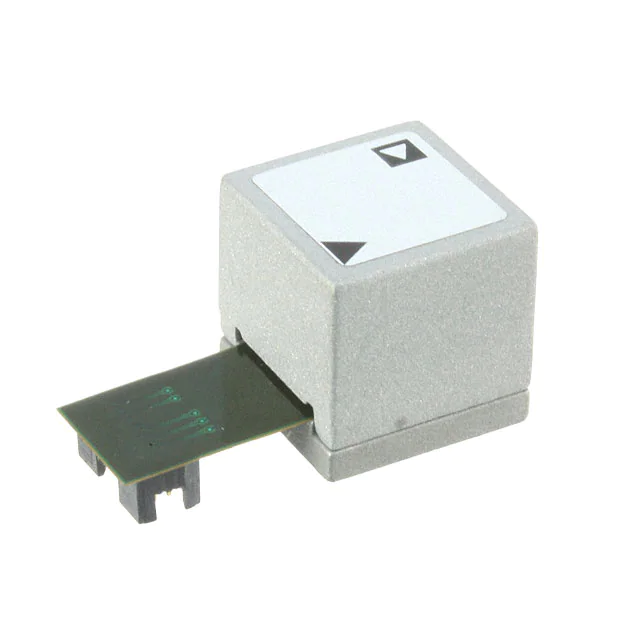

	ADIS16223CMLZ SENSOR VIBRATION -70+70G MODUL Analog Devices Inc.	1,053	-	立即询价	规格书	iMEMS®, iSensor™	14-Module with Connector	Bulk	Obsolete	Vibration, Acceleration	-70 ~ 70 g	4.768mg/LSB	Digital	3.15 V ~ 3.6 V / 43mA	-40°C ~ 125°C	Programmable	Screw Mount	Rectangular Connector - 14 Pos

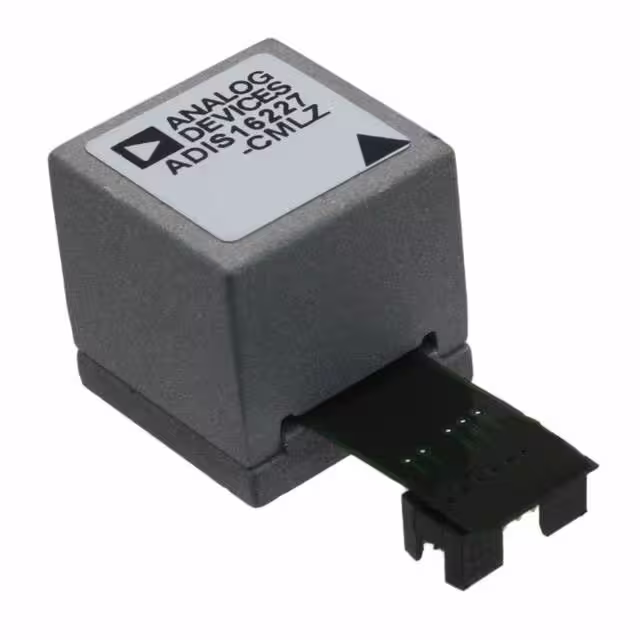

	ADIS16227CMLZ SENSOR VIBRATION -70+70G MODUL Analog Devices Inc.	3,255	-	立即询价	规格书	iMEMS®, iSensor™	14-Module with Connector	Box	Obsolete	Acceleration	-70 ~ 70 g	1.192mg/LSB	Digital	3.15 V ~ 3.6 V / 43mA	-40°C ~ 125°C	Programmable	Screw Mount	Rectangular Connector - 14 Pos
