购物车光学运动传感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 传感器类型 | 感应距离 | 输出类型 | 电压 - 电源 | 触发类型 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWP20-20PAREA SENSOR PNP L=380MM 12-24VDC |
4,111 |
|
规格书 |
BWP | Module | Box | Active | Area Reflective | 197" (5m) 16.4' | PNP - Open Collector | 12V ~ 24V | Internal | - | -10°C ~ 55°C |
|
BW40-08AREA SENSOR NPN L=280MM 12-24VDC |
3,457 |
|
规格书 |
BW | Module | Box | Active | Area Reflective | 275.6" (7m) | NPN - Open Collector | 12V ~ 24V | Internal | - | -10°C ~ 55°C |
|
BW20-16AREA SENSOR NPN L=300MM 12-24VDC |
1,480 |
|
规格书 |
BW | Module | Box | Active | Area Reflective | 275.6" (7m) | NPN - Open Collector | 12V ~ 24V | Internal | - | -10°C ~ 55°C |
|
BW20-28AREA SENSOR NPN L=540MM 12-24VDC |
1,863 |
|
规格书 |
BW | Module | Box | Active | Area Reflective | 275.6" (7m) | NPN - Open Collector | 12V ~ 24V | Internal | - | -10°C ~ 55°C |
|
BW40-22PAREA SENSOR PNP L=840MM 12-24VDC |
2,066 |
|
规格书 |
BW | Module | Box | Active | Area Reflective | 275.6" (7m) | PNP - Open Collector | 12V ~ 24V | Internal | - | -10°C ~ 55°C |
|
PYD 1598 / 7655LOW POWER DIGIPYRO MOTION SENS |
4,277 |
|
规格书 |
DigiPyro® | - | Tube | Active | PIR (Passive Infrared) | - | Digital | 1.8V ~ 3.6V | - | Low Power | - |
|
|
PYD 1588LOW POWER DIGIPYRO MOTION SENS |
4,953 |
|
规格书 |
DigiPyro® | - | Tube | Active | PIR (Passive Infrared) | - | Digital | 1.8V ~ 3.6V | - | Low Power | - |
|
PYD2592 / 7765SMD 1CH DUAL LOW POWER DIGIPYRO |
2,934 |
|
规格书 |
DigiPyro® | 6-SMD | Tape & Reel (TR) | Active | PIR (Passive Infrared) | - | Digital | 1.8V ~ 3.6V | Internal | Low Power | -40°C ~ 70°C |
|
EKMC1607111LOW PROFILE LENS, 170UA, STD SEN |
2,811 |
|
规格书 |
EKMC | Module | Tray | Active | PIR (Passive Infrared) | 275.6" (7m) | Digital | 3V ~ 6V | Internal | Low Profile Lens, White | -20°C ~ 60°C |
|

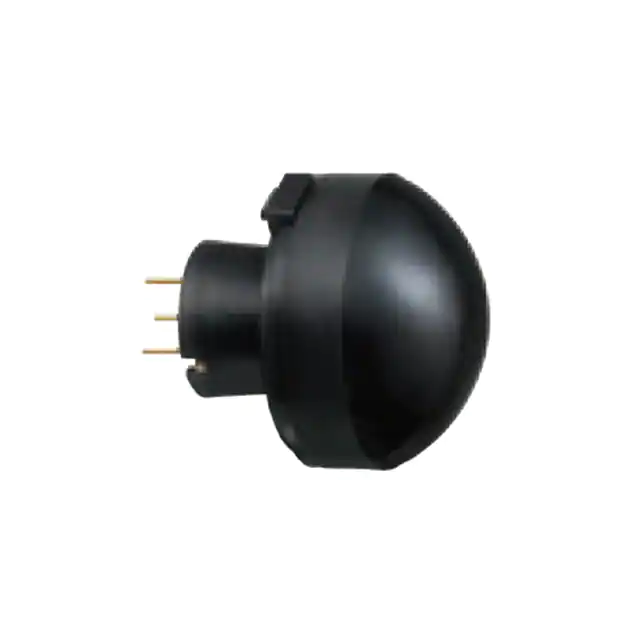

EKMC1604112SENSOR PIR WALL MNT 170UA BLK LE |
4,253 |
|
规格书 |
EKMC | Module | Tray | Active | PIR (Passive Infrared) | 16.40' (5m) | Digital | 3V ~ 6V | Internal | Wall Installation Lens, Black | -20°C ~ 60°C |
|
EKMC1609112SENSOR PIR 170UA DIGITAL BLACK |
3,834 |
|
规格书 |
EKMC | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 161" (4.1m) 13.5' | Digital | 3V ~ 6V | Internal | Ultra Slight Motion Lens, Black | -20°C ~ 60°C |
|
|
EKMB1307111KLOW PROFILE LENS, 6UA, STD SENSI |
1,411 |
|
规格书 |
EKMB | Module | Tray | Active | PIR (Passive Infrared) | 275.6" (7m) | Digital | 2.3V ~ 4V | Internal | Low Profile Lens, White | -20°C ~ 60°C |
|
EKMC1693112SENSOR MOTION PIR STD BLK LENS S |
2,554 |
|
规格书 |
EKMC | Module | Tray | Active | PIR (Passive Infrared) | 86.614" (2.2m) | Digital | 3V ~ 6V | External | Saturn Lens, Black | -20°C ~ 70°C |
|

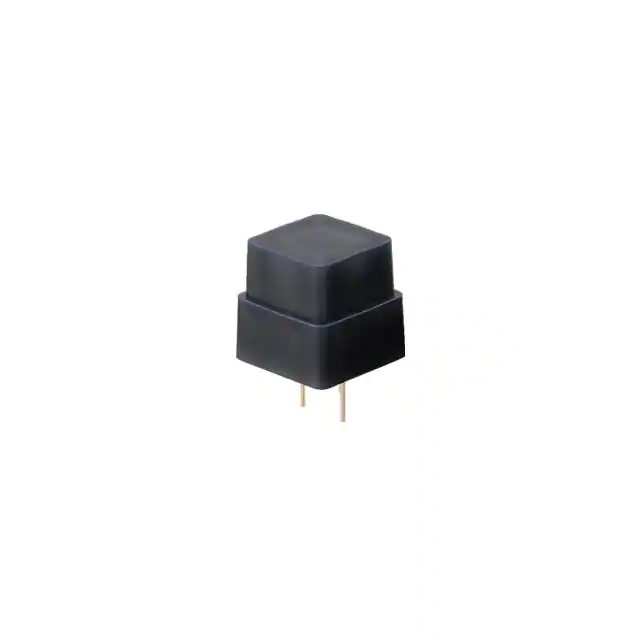

EKMC1610112SENSOR PIR 170UA DIGITAL BLACK |
1,416 |
|
规格书 |
EKMC | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 197" (5m) 16.4' | Digital | 3V ~ 6V | Internal | Flat Square Lens, Black | -20°C ~ 60°C |
|

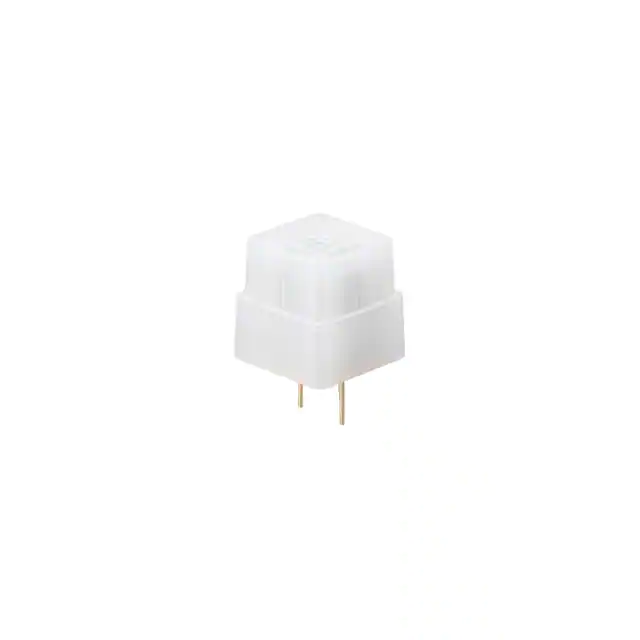

EKMC1610111SENSOR PIR 170UA DIGITAL WHITE |
3,539 |
|
规格书 |
EKMC | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 197" (5m) 16.4' | Digital | 3V ~ 6V | Internal | Flat Square Lens, White | -20°C ~ 60°C |
|
EKMC7601111KSENSOR MOTION PIR STD WHT |
1,033 |
|
规格书 |
EKMC | Module | Tray | Active | PIR (Passive Infrared) | 197" (5m) 16.4' | Digital | 3V ~ 6V | Internal | Standard Lens, White | -20°C ~ 60°C |
|
EKMC1691112SENSOR MOTION PIR SLIGHT MOTION |
1,549 |
|
规格书 |
EKMC | Module | Tray | Active | PIR (Passive Infrared) | 98.425" (2.5m) | Digital | 3V ~ 6V | Internal | Slight Motion Lens, Black | -20°C ~ 60°C |
|
EKMC1691113SENSOR MOTION PIR SLIGHT MOTION |
3,647 |
|
规格书 |
EKMC | Module | Tray | Active | PIR (Passive Infrared) | 98.425" (2.5m) | Digital | 3V ~ 6V | Internal | Slight Motion Lens, Pearl White | -20°C ~ 60°C |
|
EKMC1609113SENSOR PIR 170UA DIGITAL PEARL |
4,588 |
|
规格书 |
EKMC | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 161" (4.1m) 13.5' | Digital | 3V ~ 6V | Internal | Ultra Slight Motion Lens, Pearl White | -20°C ~ 60°C |
|
EKMC1608113SENSOR PIR 170UA DIGITAL PEARL |
2,998 |
|
规格书 |
EKMC | Module | Tray | Active | Motion, Pyroelectric, PIR (Passive Infrared) | 232" (5.9m) 19.4' | Digital | 3V ~ 6V | Internal | Wide Area Lens, Pearl White | -20°C ~ 60°C |
