| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 轴向 | 范围 °/s | 灵敏度（LSB/(°/s)） | 灵敏度（mV/°/s） | 带宽 | 输出类型 | 电压 - 电源 | 电流 - 电源 | 特性 | 工作温度 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

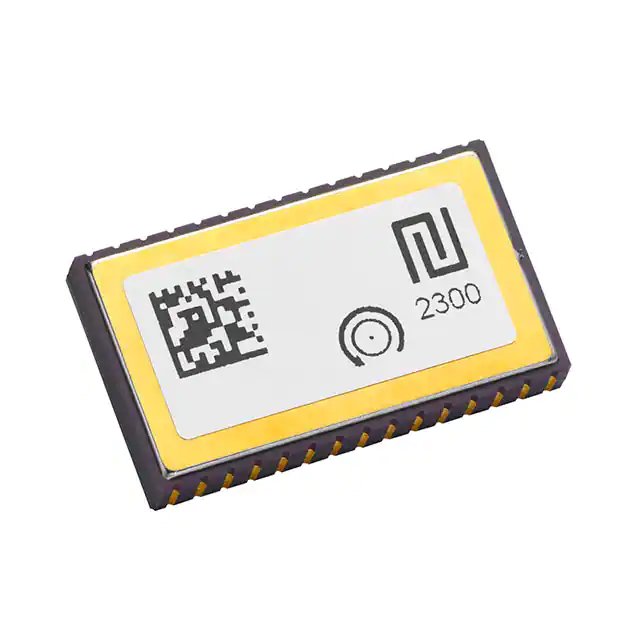

GYPRO2300LDMEMS GYRO Z-AXIS (YAW) 30-CLCC |
4,093 |
|
规格书 |
GYPRO® | 30-CLCC | Tray | Obsolete | Digital | Z (Yaw) | ±300 | 10000 | - | 100Hz | SPI | 4.75V ~ 5.25V | 25 mA | Temperature Compensated | -40°C ~ 85°C | - | - |
|

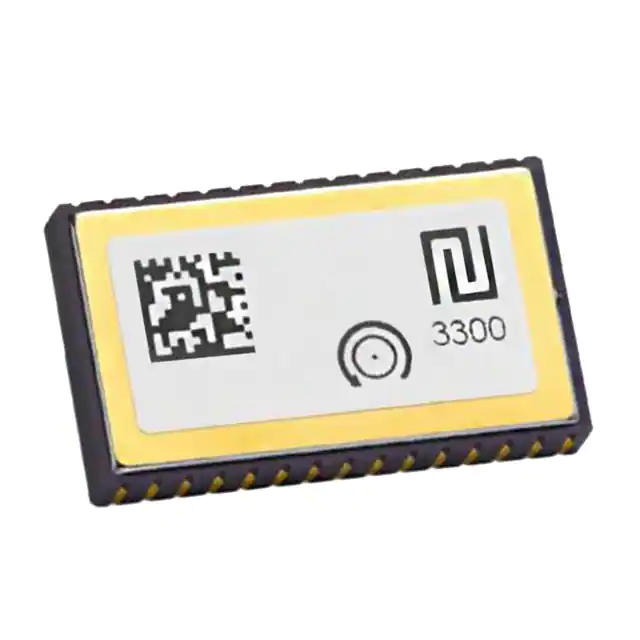

GYPRO3300MEMS GYRO Z-AXIS (YAW) 30-CLCC |
4,367 |
|
规格书 |
GYPRO® | 30-CLCC | Tray | Not For New Designs | Digital | Z (Yaw) | ±300 | 10000 | - | 200Hz | SPI | 4.75V ~ 5.25V | 25 mA | Temperature Compensated | -40°C ~ 85°C | - | - |
|

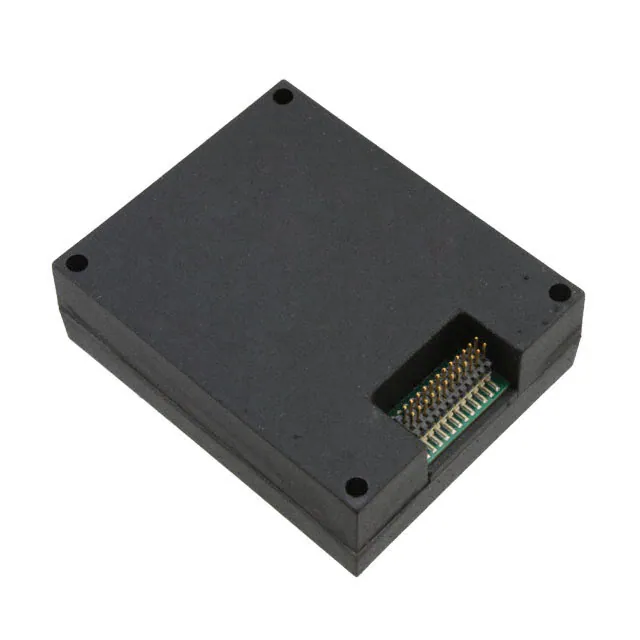

ADIS16130AMLZMODULE GYRO RATE SENSOR 24LD |
4,554 |
|
规格书 |
- | Module | Box | Obsolete | Digital | Z (Yaw) | ±250 | 23488 | - | 300Hz | SPI | 4.75V ~ 5.25V | 73 mA | Temperature Sensor | -40°C ~ 85°C | - | - |
|
ADIS16080ACCZIC ACCEL GYRO RATE I2C 16-LGA |
4,672 |
|
规格书 |
- | 16-BFLGA | Tray | Obsolete | Digital | Z (Yaw) | ±80 | 10 | - | 40Hz | SPI | 4.75V ~ 5.25V | 7 mA | Adjustable Bandwidth, Temperature Sensor | -40°C ~ 85°C | - | - |
|
XV-8100CB:50.3KHZGYRO SENSOR 50.3KHZ |
4,697 |
|
- |
- | 8-SMD, No Lead | Bulk | Obsolete | Analog | X (Pitch), Y (Roll), Z (Yaw) | ±100 | - | 2.5 | - | Analog Voltage | 2.85V ~ 3.15V | 1.7 mA | - | -40°C ~ 85°C | - | - |
|
ADXRS610BBGZ-RLIC SENSOR GYRO 6MV 300D/S 32CBGA |
4,469 |
|
规格书 |
- | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADXRS614BBGZ-RLIC SENSOR GYRO 25MV 50D/S 32CBGA |
3,253 |
|
规格书 |
- | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADXRS613BBGZ-RLIC SENS GYR 12.5MV 150D/S 32CBGA |
1,861 |
|
规格书 |
- | - | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CMR3000-D01GYROSCOPE 3-AXIS SPI/I2C SMD |
2,547 |
|
规格书 |
- | 10-VFBGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±2000 | 1.33 | - | 20Hz ~ 80Hz | I2C, SPI | 2.5V ~ 3.6V | 5 mA | Adjustable Bandwidth, Sleep Mode | -40°C ~ 85°C | - | - |
|
A3G4250DIC MEMS MOTION SENSOR 16-LGA |
2,150 |
|
规格书 |
- | 16-TFLGA | Tray | Active | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±245 | 114 | - | 4.45Hz ~ 483Hz | I2C, SPI | 2.4V ~ 3.6V | 6.1 mA | Adjustable Bandwidth, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | Automotive | AEC-Q100 |
|
MAX21000+IC GYROSCOPE 3-AXIS 16LGA |
2,110 |
|
规格书 |
- | 16-VFLGA | Tray | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±31.25, 62.50, 125, 250, 500, 1000, 2000 | 15 ~ 960 | - | 0.1Hz ~ 400Hz | I2C, SPI | 1.71V ~ 3.6V | 5.4 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
MAX21000+TIC GYROSCOPE 3-AXIS 16LGA |
3,100 |
|
规格书 |
- | 16-VFLGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±31.25, 62.50, 125, 250, 500, 1000, 2000 | 15 ~ 960 | - | 0.1Hz ~ 400Hz | I2C, SPI | 1.71V ~ 3.6V | 5.4 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
MAX21002+IC GYROSCOPE 2-AXIS 16LGA |
4,171 |
|
规格书 |
- | 16-VFLGA | Tray | Obsolete | Digital | X (Pitch), Y (Roll) | ±31.25, 62.50, 125, 250, 500, 1000 | 30 ~ 960 | - | 0.1Hz ~ 400Hz | I2C, SPI | 1.71V ~ 3.6V | 5.1 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
MAX21003+IC GYROSCOPE 2-AXIS 16LGA |
2,554 |
|
规格书 |
- | 16-VFLGA | Tray | Obsolete | Digital | X (Pitch), Y (Roll) | ±31.25, 62.50, 125, 250, 500, 1000 | 30 ~ 960 | - | 0.1Hz ~ 400Hz | I2C, SPI | 1.71V ~ 3.6V | 5.1 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|

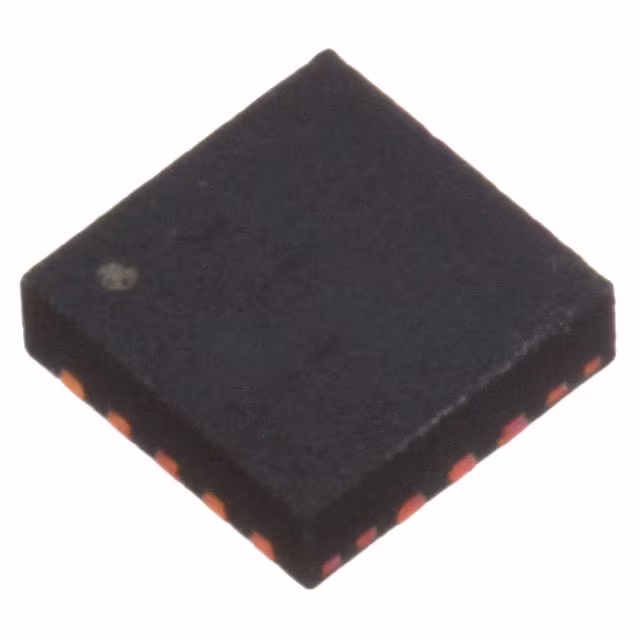

ISZ-2510MEMS GYROSCOPE 1-AXIS 16QFN |
3,259 |
|
规格书 |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 5Hz ~ 8.8kHz | I2C, SPI | 1.71V ~ 3.6V | 2.8 mA | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | -40°C ~ 85°C | - | - |
|
IXZ-2510MEMS GYROSCOPE 2-AXIS 16QFN |
3,635 |
|
规格书 |
- | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Z (Yaw) | ±250, 500, 1000, 2000 | 16.4 ~ 131 | - | 250Hz ~ 3.6kHz | I2C, SPI | 1.71V ~ 3.6V | 2.8 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
MAX21002+TIC GYROSCOPE 2-AXIS 16LGA |
3,397 |
|
规格书 |
- | 16-VFLGA | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll) | ±31.25, 62.50, 125, 250, 500, 1000 | 30 ~ 960 | - | 0.1Hz ~ 400Hz | I2C, SPI | 1.71V ~ 3.6V | 5.1 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
|
ITG-3701MEMS GYROSCOPE 3AXIS 16QFN |
1,080 |
|
规格书 |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Digital | X (Pitch), Y (Roll), Z (Yaw) | ±500, 1000, 2000, 4000 | 8.2 ~ 65.5 | - | 500Hz ~ 16kHz | I2C, SPI | 1.71V ~ 3.6V | 3.3 mA | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor | -40°C ~ 85°C | - | - |
|
ADXRS800WBRGZ-RLIC GYROSCOPE QUAD 16SOIC |
2,209 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Digital | Z (Yaw) | ±300 | - | - | - | SPI | 3.3V ~ 5V | - | Temperature Sensor | -40°C ~ 105°C | Automotive | - |
|
ADXRS800WBRGZIC GYROSCOPE QUAD 16SOIC |
2,805 |
|
规格书 |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Digital | Z (Yaw) | ±300 | - | - | - | SPI | 3.3V ~ 5V | - | Temperature Sensor | -40°C ~ 105°C | Automotive | - |
