购物车电流/电压变送器监视器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输入范围 | 输出 | 隔离 | 响应时间 | 精度 | 电压 - 电源 | 安装类型 | 端接样式 | 工作温度 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATR-5A-04TRANSDUCER 3PH 60000A:5A 4"COIL |
3,500 |
|
规格书 |
ATR | Tape & Box (TB) | Active | AC Current Transducer | 2.5 ~ 60000A | 5A | - | 10ms | 0.01% | 24VDC | Chassis Mount, DIN Rail | Screw Terminal | - | CE, UL |
|
|
ATR-5A-07TRANSDUCER 3PH 60000A:5A 7"COIL |
1,205 |
|
规格书 |
ATR | Tape & Box (TB) | Active | AC Current Transducer | 2.5 ~ 60000A | 5A | - | 10ms | 0.01% | 24VDC | Chassis Mount, DIN Rail | Screw Terminal | - | CE, UL |
|
|
ATR-5A-11TRANSDUCER 3PH 60000A:5A 11"COIL |
3,369 |
|
规格书 |
ATR | Tape & Box (TB) | Active | AC Current Transducer | 2.5 ~ 60000A | 5A | - | 10ms | 0.01% | 24VDC | Chassis Mount, DIN Rail | Screw Terminal | - | CE, UL |
|
CR4510-250TRANSDUCER VOLTAGE 24VDC |
3,551 |
|
规格书 |
CR4500 | Box | Active | True RMS AC Voltage Transducer | 0 ~ 250VAC | 0 ~ 5VDC | 2500VDC | 250ms | 0.5% | 24VDC | DIN Rail | Screw Terminal | 0°C ~ 60°C | CE, cURus |
|
CR4510-500TRANSDUCER VOLTAGE 24VDC |
4,940 |
|
规格书 |
CR4500 | Box | Active | True RMS AC Voltage Transducer | 0 ~ 500VAC | 0 ~ 5VDC | 2500VDC | 250ms | 0.5% | 24VDC | DIN Rail | Screw Terminal | 0°C ~ 60°C | CE, cURus |
|
ISOBLOCK I-FG-1C (6A 10V)TRANSDUCER CURRENT 9-28VDC |
4,752 |
|
规格书 |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 6A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK I-FG-1C (50A 10V)TRANSDUCER CURRENT 9-28VDC |
3,403 |
|
规格书 |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 50A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Screw Terminal, Spring Terminal | -25°C ~ 70°C | - |
|
2308108TRANSDUCER CURRENT 24VDC |
3,079 |
|
规格书 |
MCR | Bulk | Active | Current Transducer | 0 ~ 100A | 0 ~ 10VDC | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
|
2308027TRANSDUCER CURRENT 24VDC |
4,588 |
|
规格书 |
MCR | Bulk | Active | Current Transducer | 0 ~ 100A | 4 ~ 20mA | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
|
2308030TRANSDUCER CURRENT 24VDC |
1,580 |
|
规格书 |
MCR | Bulk | Active | Current Transducer | 0 ~ 200A | 4 ~ 20mA | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
ISOBLOCK V-1C (50V 10V)TRANSDUCER VOLTAGE 9-28VDC |
4,445 |
|
规格书 |
IsoBlock V | Box | Active | Voltage Transducer | ±50V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (300V 10V)TRANSDUCER VOLTAGE 9-28VDC |
2,612 |
|
规格书 |
IsoBlock V | Box | Active | Voltage Transducer | ±300V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (750V 10V)TRANSDUCER VOLTAGE 9-28VDC |
2,484 |
|
规格书 |
IsoBlock V | Box | Active | Voltage Transducer | ±750V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (100V 10V)TRANSDUCER VOLTAGE 9-28VDC |
1,857 |
|
规格书 |
IsoBlock V | Box | Active | Voltage Transducer | ±100V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (500V 10V)TRANSDUCER VOLTAGE 8-28VDC |
4,966 |
|
规格书 |
IsoBlock V | Box | Active | Voltage Transducer | ±500V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 8 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|

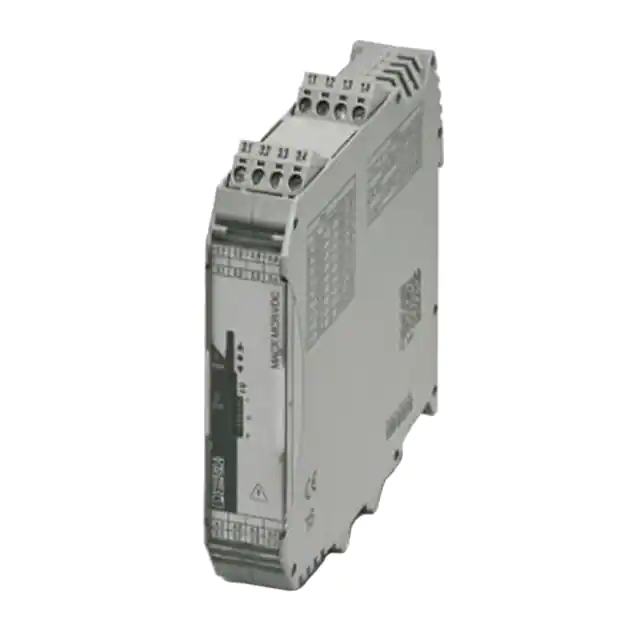

2906242TRANSDUCER VOLTAGE 24VDC |
1,855 |
|
规格书 |
MACX | Bulk | Active | Voltage Transducer | ±660VDC | ±10V | 5300VAC (Test) | 16ms | - | 24VDC | DIN Rail | Screw Terminal | -25°C ~ 60°C | CE, cULus |
|

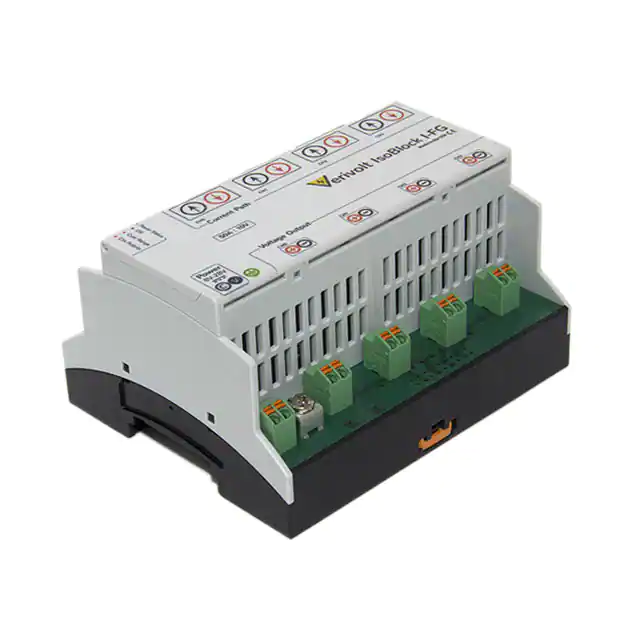

ISOBLOCK I-FG-4C (6A 10V)TRANSDUCER CURRENT 9-28VDC |
1,747 |
|
规格书 |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 6A | ±10V | 1200V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK I-FG-4C (25A 10V)TRANSDUCER CURRENT 9-28VDC |
3,422 |
|
规格书 |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 25A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK I-FG-4C (15A 10V)TRANSDUCER CURRENT 9-28VDC |
2,801 |
|
规格书 |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 15A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
ISOBLOCK V-4C (1000V 10V)TRANSDUCER VOLTAGE 9-28VDC |
4,671 |
|
规格书 |
IsoBlock V | Box | Active | Voltage Transducer | ±1000V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
