结果:

磁性、干簧开关

型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	电路	工作范围	释放范围	电流 - 切换	电压 - 切换交流	电压 - 切换直流	额定功率	动作时间	释放时间	安装类型	端接样式	长度 - 总体	尺寸 - 主体	板上高度	工作温度	电容	电流 - 承载

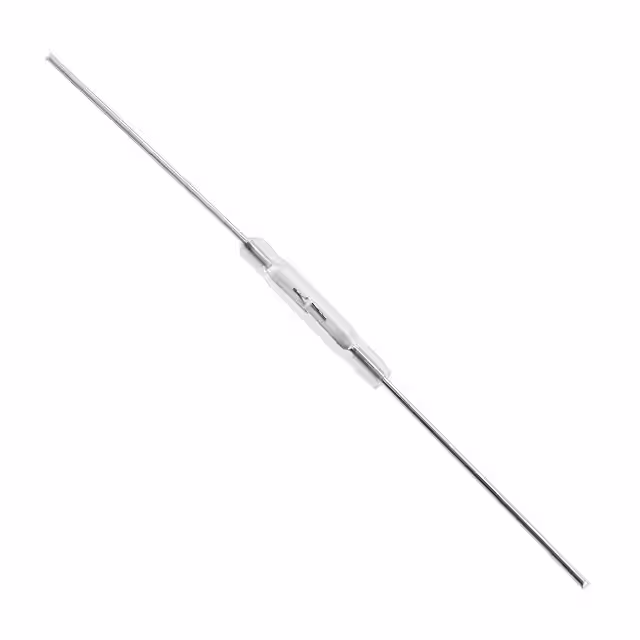

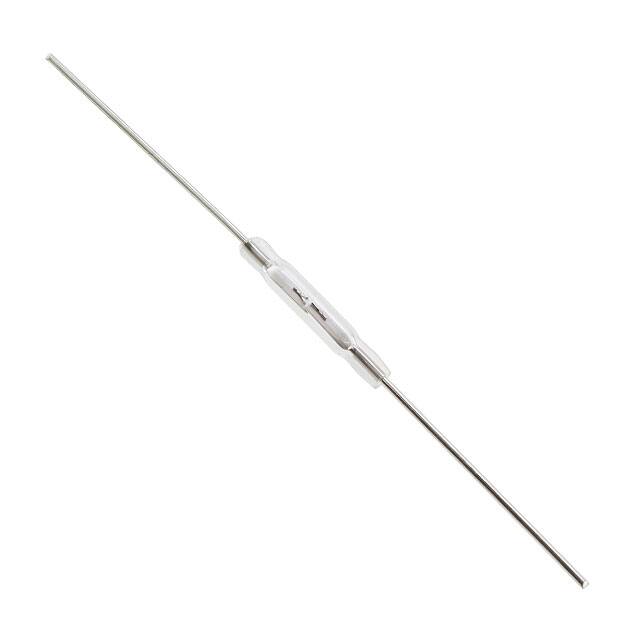

SW GR560/10-15 AT SWITCH REED SPST-NO 1A 125V Standex-Meder Electronics	4,044	-	立即询价	规格书	GR560	Bulk	Obsolete	Glass Body Reed	SPST-NO	10 ~ 15AT	6 ~ 21AT	1A (AC/DC)	125 V	100 V	10VA	0.6 ms	0.1 ms	Through Hole	Axial	2.126" (54.00mm)	0.091" Dia x 0.559" L (2.30mm x 14.20mm)	-	-40°C ~ 125°C	0.2 pF	1.5A (AC/DC)
SW GR560/15-20 AT SWITCH REED SPST-NO 1A 125V Standex-Meder Electronics	1,626	-	立即询价	规格书	GR560	Bulk	Obsolete	Glass Body Reed	SPST-NO	15 ~ 20AT	6 ~ 21AT	1A (AC/DC)	125 V	100 V	10VA	0.6 ms	0.1 ms	Through Hole	Axial	2.126" (54.00mm)	0.091" Dia x 0.559" L (2.30mm x 14.20mm)	-	-40°C ~ 125°C	0.2 pF	1.5A (AC/DC)
SW GR560/20-25 AT SWITCH REED SPST-NO 1A 125V Standex-Meder Electronics	2,999	-	立即询价	规格书	GR560	Bulk	Obsolete	Glass Body Reed	SPST-NO	20 ~ 25AT	6 ~ 21AT	1A (AC/DC)	125 V	100 V	10VA	0.6 ms	0.1 ms	Through Hole	Axial	2.126" (54.00mm)	0.091" Dia x 0.559" L (2.30mm x 14.20mm)	-	-40°C ~ 125°C	0.2 pF	1.5A (AC/DC)
DRR-129-42-83 SWITCH REED SPST-NO 2.1A 280V Littelfuse Inc.	1,117	-	立即询价	规格书	DRR-129	Box	Obsolete	Glass Body Reed	SPST-NO	42 ~ 83AT	-	2.1A (AC), 3A (DC)	280 V	400 V	100W	4.5 ms	2.5 ms	Surface Mount	Axial, Flat	3.250" (82.55mm)	0.207" Dia x 2.000" L (5.25mm x 50.80mm)	-	-40°C ~ 125°C	0.6 pF	6A (DC)
59045-1-U-00-0 SWITCH REED SPST-NO 350MA 140V Littelfuse Inc.	3,591	-	立即询价	规格书	59045	Box	Active	Molded Body Reed	SPST-NO	25 ~ 30AT	-	350mA (AC), 500mA (DC)	140 V	200 V	10W	1 ms	1 ms	Through Hole	PC Pin	0.700" (17.78mm)	0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm)	0.170" (4.33mm)	-40°C ~ 105°C	0.3 pF	1.2A (DC)
59050-2-S-00-0 SWITCH REED SPST-NO 300MA 265V Littelfuse Inc.	1,602	-	立即询价	-	59050	Box	Active	Molded Body Reed	SPST-NO	12 ~ 18AT	-	300mA (AC), 400mA (DC)	265 V	300 V	10W	1 ms	1 ms	Through Hole	PC Pin	0.900" (22.86mm)	0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm)	0.180" (4.57mm)	-20°C ~ 105°C	0.2 pF	1.4A (DC)
DRR-129-42-58 SWITCH REED SPST-NO 2.1A 280V Littelfuse Inc.	4,238	-	立即询价	规格书	DRR-129	Box	Active	Glass Body Reed	SPST-NO	42 ~ 58AT	-	2.1A (AC), 3A (DC)	280 V	400 V	100W	4.5 ms	2.5 ms	Surface Mount	Axial, Flat	3.250" (82.55mm)	0.207" Dia x 2.000" L (5.25mm x 50.80mm)	-	-40°C ~ 125°C	0.6 pF	6A (DC)
DRR-129-47-78 SWITCH REED SPST-NO 2.1A 280V Littelfuse Inc.	3,386	-	立即询价	规格书	DRR-129	Box	Active	Glass Body Reed	SPST-NO	47 ~ 78AT	-	2.1A (AC), 3A (DC)	280 V	400 V	100W	4.5 ms	2.5 ms	Surface Mount	Axial, Flat	3.250" (82.55mm)	0.207" Dia x 2.000" L (5.25mm x 50.80mm)	-	-40°C ~ 125°C	0.6 pF	6A (DC)
DRR-129-52-78 SWITCH REED SPST-NO 2.1A 280V Littelfuse Inc.	3,217	-	立即询价	规格书	DRR-129	Box	Active	Glass Body Reed	SPST-NO	52 ~ 78AT	-	2.1A (AC), 3A (DC)	280 V	400 V	100W	4.5 ms	2.5 ms	Surface Mount	Axial, Flat	3.250" (82.55mm)	0.207" Dia x 2.000" L (5.25mm x 50.80mm)	-	-40°C ~ 125°C	0.6 pF	6A (DC)
DRR-129-57-78 SWITCH REED SPST-NO 2.1A 280V Littelfuse Inc.	4,926	-	立即询价	规格书	DRR-129	Box	Active	Glass Body Reed	SPST-NO	57 ~ 78AT	-	2.1A (AC), 3A (DC)	280 V	400 V	100W	4.5 ms	2.5 ms	Surface Mount	Axial, Flat	3.250" (82.55mm)	0.207" Dia x 2.000" L (5.25mm x 50.80mm)	-	-40°C ~ 125°C	0.6 pF	6A (DC)
DRR-DTH-50-80 SWITCH REED SPDT 350MA 350V Littelfuse Inc.	1,979	-	立即询价	规格书	DRR-DTH	Box	Obsolete	Glass Body Reed	SPDT	50 ~ 80AT	-	350mA (AC), 500mA (DC)	350 V	500 V	30W	4.5 ms	7 ms	Through Hole	Axial	3.375" (85.73mm)	0.210" Dia x 1.500" L (5.33mm x 38.10mm)	-	-20°C ~ 125°C	2 pF	3A (DC)
DRT-DTH-50-70 SWITCH REED SPDT 1A 350V Littelfuse Inc.	2,120	-	立即询价	规格书	DRT-DTH	Box	Active	Glass Body Reed	SPDT	50 ~ 70AT	-	1A (AC), 1.5A (DC)	350 V	500 V	50W	5.5 ms	8 ms	Through Hole	Axial	3.375" (85.73mm)	0.210" Dia x 1.500" L (5.33mm x 38.10mm)	-	-20°C ~ 125°C	2 pF	2A (DC)
HA15-2-22-33 SWITCH REED SPST-NO 350MA 265V Littelfuse Inc.	3,661	-	立即询价	规格书	HA15-2	Box	Active	Glass Body Reed	SPST-NO	22 ~ 33AT	-	350mA (AC), 500mA (DC)	265 V	200 V	10W	0.6 ms	0.2 ms	Through Hole	Axial	1.590" (40.39mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	-	-20°C ~ 125°C	0.2 pF	1.5A (DC)
MDSM-DTB-25-30 SWITCH REED SPDT 180MA 120V Littelfuse Inc.	2,946	-	立即询价	规格书	MDSM-DT	Box	Active	Glass Body Reed	SPDT	25 ~ 30AT	-	180mA (AC), 250mA (DC)	120 V	175 V	5W	0.7 ms	1 ms	Surface Mount	Gull Wing	1.000" (25.40mm)	0.100" Dia x 0.580" L (2.54mm x 14.73mm)	0.101" (2.56mm)	-40°C ~ 125°C	1 pF	1.5A (DC)
MDSR-10-10-25 SWITCH REED SPST-NO 350MA 140V Littelfuse Inc.	2,749	-	立即询价	规格书	MDSR-10	Box	Active	Glass Body Reed	SPST-NO	10 ~ 25AT	-	350mA (AC), 500mA (DC)	140 V	200 V	10W	0.5 ms	0.1 ms	Through Hole	Axial	1.590" (40.39mm)	0.071" Dia x 0.400" L (1.80mm x 10.16mm)	-	-40°C ~ 125°C	0.2 pF	1A (DC)
MRPR-3-22-33 SWITCH REED SPST-NO 1.1A 140V Littelfuse Inc.	3,908	-	立即询价	规格书	MRPR-3	Box	Obsolete	Glass Body Reed	SPST-NO	22 ~ 33AT	-	1.1A (AC), 1.5A (DC)	140 V	200 V	50W	0.75 ms	0.3 ms	Through Hole	Axial	2.230" (56.64mm)	0.112" Dia x 0.775" L (2.84mm x 19.69mm)	-	-40°C ~ 125°C	0.2 pF	3A (DC)
MRPR-3-22-38 SWITCH REED SPST-NO 1.1A 140V Littelfuse Inc.	2,291	-	立即询价	规格书	MRPR-3	Box	Active	Glass Body Reed	SPST-NO	22 ~ 38AT	-	1.1A (AC), 1.5A (DC)	140 V	200 V	50W	0.75 ms	0.3 ms	Through Hole	Axial	2.230" (56.64mm)	0.112" Dia x 0.775" L (2.84mm x 19.69mm)	-	-40°C ~ 125°C	0.2 pF	3A (DC)
MDSM-4R-12-28 SWITCH REED SPST-NO 350MA 140V Littelfuse Inc.	2,731	-	立即询价	规格书	MDSM-4	Tape & Reel (TR)	Active	Glass Body Reed	SPST-NO	12 ~ 28AT	-	350mA (AC), 500mA (DC)	140 V	200 V	10W	0.6 ms	0.2 ms	Surface Mount	Gull Wing	0.760" (19.30mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	0.112" (2.85mm)	-40°C ~ 125°C	0.2 pF	1.2A (DC)
MDSM-4R-12-38 SWITCH REED SPST-NO 350MA 140V Littelfuse Inc.	1,785	-	立即询价	规格书	MDSM-4	Tape & Reel (TR)	Active	Glass Body Reed	SPST-NO	12 ~ 38AT	-	350mA (AC), 500mA (DC)	140 V	200 V	10W	0.6 ms	0.2 ms	Surface Mount	Gull Wing	0.760" (19.30mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	0.112" (2.85mm)	-40°C ~ 125°C	0.2 pF	1.2A (DC)
MDSM-DTR-15-30 SWITCH REED SPDT 180MA 120V Littelfuse Inc.	3,730	-	立即询价	规格书	MDSM-DT	Tape & Reel (TR)	Active	Glass Body Reed	SPDT	15 ~ 30AT	-	180mA (AC), 250mA (DC)	120 V	175 V	5W	0.7 ms	1 ms	Surface Mount	Gull Wing	1.000" (25.40mm)	0.100" Dia x 0.580" L (2.54mm x 14.73mm)	0.101" (2.56mm)	-40°C ~ 125°C	1 pF	1.5A (DC)

共 1007 记录«上一页 1... 41 42 43 444546 47 48...51 下一页»
