结果:

磁性、干簧开关

型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	电路	工作范围	释放范围	电流 - 切换	电压 - 切换交流	电压 - 切换直流	额定功率	动作时间	释放时间	安装类型	端接样式	长度 - 总体	尺寸 - 主体	板上高度	工作温度	电容	电流 - 承载
HA15-2-17-28 SWITCH REED SPST-NO 300MA 265V Littelfuse Inc.	1,529	-	立即询价	规格书	HA15-2	Box	Active	Glass Body Reed	SPST-NO	17 ~ 28AT	-	300mA (AC), 400mA (DC)	265 V	200 V	10W	0.6 ms	0.2 ms	Through Hole	Axial	1.590" (40.39mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	-	-20°C ~ 125°C	0.2 pF	1.4A (DC)
HA15-2-17-38 SWITCH REED SPST-NO 300MA 265V Littelfuse Inc.	2,192	-	立即询价	规格书	HA15-2	Box	Active	Glass Body Reed	SPST-NO	17 ~ 38AT	-	300mA (AC), 400mA (DC)	265 V	200 V	10W	0.6 ms	0.2 ms	Through Hole	Axial	1.590" (40.39mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	-	-20°C ~ 125°C	0.2 pF	1.4A (DC)
HA15-2-22-38 SWITCH REED SPST-NO 350MA 265V Littelfuse Inc.	1,370	-	立即询价	规格书	HA15-2	Box	Active	Glass Body Reed	SPST-NO	22 ~ 38AT	-	350mA (AC), 500mA (DC)	265 V	200 V	10W	0.6 ms	0.2 ms	Through Hole	Axial	1.590" (40.39mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	-	-20°C ~ 125°C	0.2 pF	1.5A (DC)
HA15-2-27-38 SWITCH REED SPST-NO 350MA 265V Littelfuse Inc.	3,276	-	立即询价	规格书	HA15-2	Box	Active	Glass Body Reed	SPST-NO	27 ~ 38AT	-	350mA (AC), 500mA (DC)	265 V	200 V	10W	0.6 ms	0.2 ms	Through Hole	Axial	1.590" (40.39mm)	0.090" Dia x 0.600" L (2.28mm x 15.24mm)	-	-20°C ~ 125°C	0.2 pF	1.5A (DC)

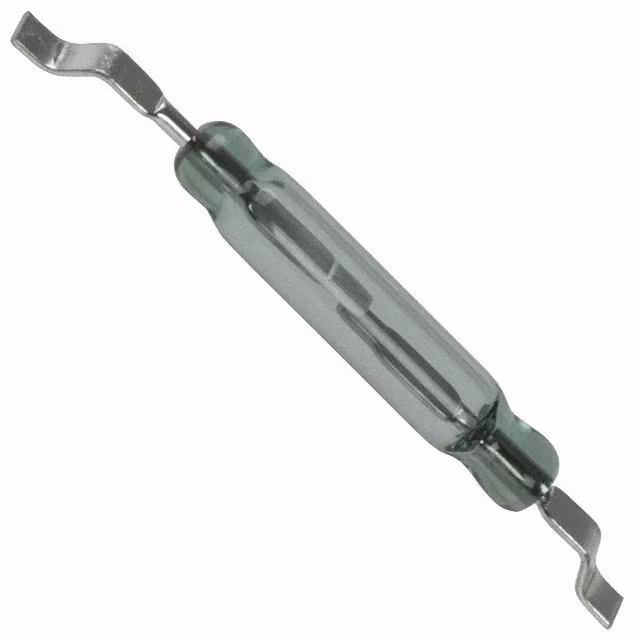

RI-02SMD-G1 SWITCH REED SPST-NO 500MA 140V Comus International	3,270	-	立即询价	规格书	RI-02	Tape & Reel (TR)	Obsolete	Glass Body Reed	SPST-NO	5 ~ 18AT	2 ~ 17AT	500mA (AC/DC)	140 V	200 V	10W	0.3 ms	0.07 ms	Surface Mount	Gull Wing	0.639" (16.23mm)	0.071" Dia x 0.394" L (1.80mm x 10.00mm)	0.087" (2.20mm)	-55°C ~ 125°C	0.3 pF	500mA (DC)

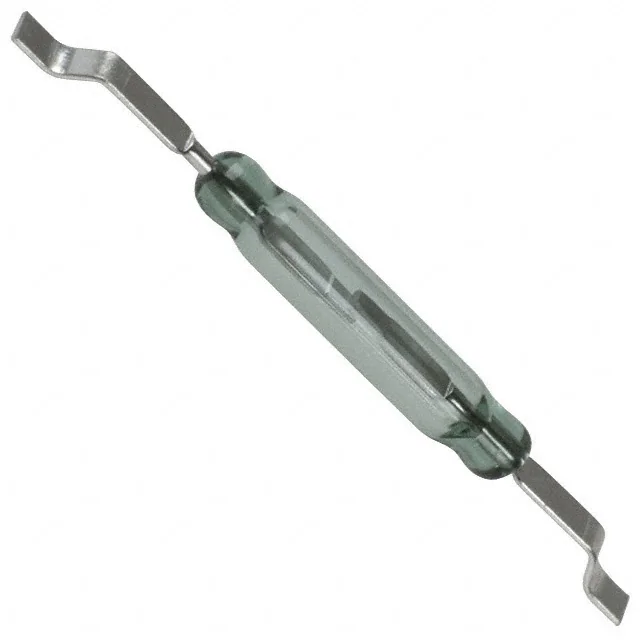

RI-02SMD-G2 SWITCH REED SPST-NO 500MA 140V Comus International	1,524	-	立即询价	规格书	RI-02	Tape & Reel (TR)	Obsolete	Glass Body Reed	SPST-NO	5 ~ 18AT	2 ~ 17AT	500mA (AC/DC)	140 V	200 V	10W	0.3 ms	0.07 ms	Surface Mount	Gull Wing	0.770" (19.56mm)	0.071" Dia x 0.394" L (1.80mm x 10.00mm)	0.087" (2.20mm)	-55°C ~ 125°C	0.3 pF	500mA (DC)
CT10-1040-G2 SWITCH REED SPST-NO 500MA 140V Coto Technology	4,811	-	立即询价	规格书	CT10	Tape & Reel (TR)	Active	Molded Body Reed	SPST-NO	10 ~ 40AT	3 ~ 35AT	500mA (AC/DC)	140 V	200 V	10W	-	-	Surface Mount	Gull Wing	0.770" (19.56mm)	0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm)	0.115" (2.92mm)	-40°C ~ 125°C	-	500mA (DC)
ORD 229/25-30 AT SWITCH REED SPST-NO 500MA 300V Standex-Meder Electronics	2,482	-	立即询价	规格书	ORD	Bulk	Active	Glass Body Reed	SPST-NO	25 ~ 30AT	-	500mA (AC), 700mA (DC)	300 V	350 V	50W	0.6 ms	0.05 ms	Through Hole	Axial	2.181" (55.40mm)	0.108" Dia x 0.827" L (2.75mm x 21.00mm)	-	-	0.5 pF	2.5A (AC/DC)
AC031035 SWITCH REED SPST-NO 500MA Celduc Inc.	4,976	-	立即询价	规格书	-	Box	Obsolete	Glass Body Reed	SPST-NO	-	-	500mA (DC)	-	100 V	10W	0.5 ms	0.1 ms	Through Hole	Axial	1.646" (41.80mm)	0.071" Dia x 0.394" L (1.80mm x 10.00mm)	-	-60°C ~ 125°C	0.5 pF	700mA (DC)
AC051035 SWITCH REED SPST-NO 500MA Celduc Inc.	4,436	-	立即询价	规格书	-	Box	Obsolete	Glass Body Reed	SPST-NO	-	-	500mA (DC)	-	100 V	10W	1 ms	0.4 ms	Through Hole	Axial	1.760" (44.70mm)	0.091" Dia x 0.559" L (2.30mm x 14.20mm)	-	-60°C ~ 155°C	0.7 pF	700mA (DC)
MK23-87-B-4 SWITCH REED SPST-NO 400MA 200V Standex-Meder Electronics	2,253	-	立即询价	规格书	MK23	Tape & Reel (TR)	Active	Glass Body Reed	SPST-NO	10 ~ 15AT	-	400mA (AC/DC)	200 V	200 V	10W	0.6 ms	0.05 ms	Surface Mount	Gull Wing	0.646" (16.40mm)	0.079" Dia x 0.394" L (2.00mm x 10.00mm)	0.094" (2.40mm)	-40°C ~ 130°C	0.2 pF	500mA (AC/DC)
MITI-3V1-6-10 SWITCH REED SPST-NO 250MA Littelfuse Inc.	4,957	-	立即询价	规格书	MITI-3V1	Box	Obsolete	Glass Body Reed	SPST-NO	6 ~ 10AT	-	250mA (DC)	-	170 V	10W	0.45 ms	0.2 ms	Through Hole	Axial	1.811" (46.00mm)	0.071" Dia x 0.276" L (1.80mm x 7.00mm)	-	-40°C ~ 125°C	0.3 pF	500mA (DC)
MITI-3V1-6-8 SWITCH REED SPST-NO 250MA Littelfuse Inc.	1,027	-	立即询价	规格书	MITI-3V1	Bulk	Obsolete	Glass Body Reed	SPST-NO	6 ~ 8AT	-	250mA (DC)	-	170 V	10W	0.45 ms	0.2 ms	Through Hole	Axial	1.811" (46.00mm)	0.071" Dia x 0.276" L (1.80mm x 7.00mm)	-	-40°C ~ 125°C	0.3 pF	500mA (DC)

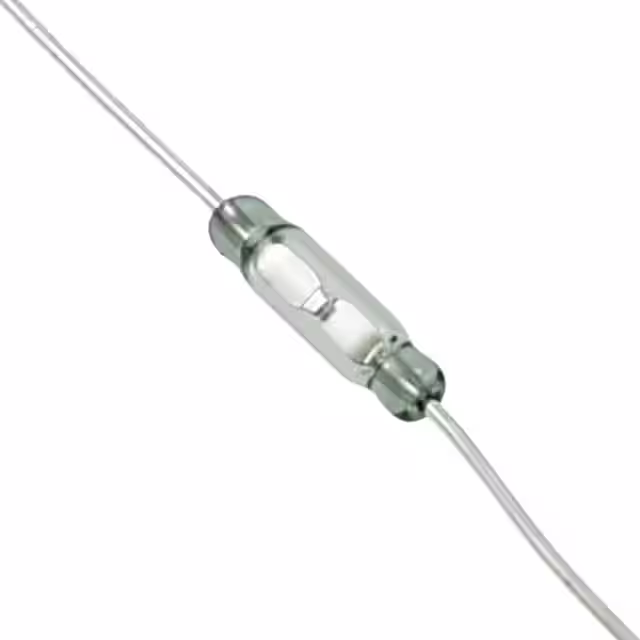

MITI-3V1-8-12.5 SWITCH REED SPST-NO 250MA Littelfuse Inc.	1,265	-	立即询价	规格书	MITI-3V1	Box	Obsolete	Glass Body Reed	SPST-NO	8 ~ 12AT	-	250mA (DC)	-	170 V	10W	0.45 ms	0.2 ms	Through Hole	Axial	1.811" (46.00mm)	0.071" Dia x 0.276" L (1.80mm x 7.00mm)	-	-40°C ~ 125°C	0.3 pF	500mA (DC)
FR2282 SWITCH REED SPST-NO 500MA 200V Coto Technology	2,242	-	立即询价	规格书	FR2	Tape & Reel (TR)	Obsolete	Glass Body Reed	SPST-NO	10 ~ 30AT	-	500mA (AC/DC)	200 V	200 V	10VA	0.5 ms	0.2 ms	Surface Mount	Gull Wing	0.770" (19.56mm)	0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm)	0.080" (2.03mm)	-40°C ~ 125°C	0.3 pF	1.5A (AC/DC)
KSK-1A52-2025 SWITCH REED SPST-NO 500MA 350V Standex-Meder Electronics	2,417	-	立即询价	规格书	KSK	Bulk	Active	Glass Body Reed	SPST-NO	20 ~ 25AT	-	500mA (AC/DC)	350 V	350 V	50W	1.1 ms	0.1 ms	Through Hole	Axial	2.181" (55.40mm)	0.108" Dia x 0.827" L (2.75mm x 21.00mm)	-	-40°C ~ 130°C	0.5 pF	2.5A (AC/DC)
KSK-1A52-3040 SWITCH REED SPST-NO 500MA 350V Standex-Meder Electronics	4,358	-	立即询价	规格书	KSK	Bulk	Active	Glass Body Reed	SPST-NO	30 ~ 40AT	-	500mA (AC/DC)	350 V	350 V	50W	1.1 ms	0.1 ms	Through Hole	Axial	2.181" (55.40mm)	0.108" Dia x 0.827" L (2.75mm x 21.00mm)	-	-40°C ~ 130°C	0.5 pF	2.5A (AC/DC)
MDSM-10R-15-20 SWITCH REED SPST-NO 350MA 140V Littelfuse Inc.	3,876	-	立即询价	规格书	MDSM-10	Tape & Reel (TR)	Active	Glass Body Reed	SPST-NO	15 ~ 20AT	-	350mA (AC), 500mA (DC)	140 V	200 V	10W	0.5 ms	0.1 ms	Surface Mount	Gull Wing	0.615" (15.62mm)	0.071" Dia x 0.400" L (1.80mm x 10.16mm)	0.079" (2.00mm)	-40°C ~ 125°C	0.2 pF	1A (DC)
59166-1-U-00-A SWITCH REED SPST-NO 350MA 140V Littelfuse Inc.	1,542	-	立即询价	规格书	59166	Tape & Reel (TR)	Obsolete	Molded Body Reed	SPST-NO	20 ~ 25AT	-	350mA (AC), 500mA (DC)	140 V	200 V	10W	0.6 ms	0.2 ms	Through Hole	Axial	1.590" (40.39mm)	0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)	-	-40°C ~ 125°C	0.3 pF	800mA (DC)
MK23-85-D-2 SWITCH REED SPST-NO 1A 1000V Standex-Meder Electronics	1,636	-	立即询价	规格书	MK23	Tape & Reel (TR)	Obsolete	Glass Body Reed	SPST-NO	20 ~ 25AT	-	1A (AC/DC)	1000 V	1000 V	100W	1.1 ms	0.1 ms	Surface Mount	Gull Wing	1.154" (29.30mm)	0.108" Dia x 0.827" L (2.75mm x 21.00mm)	0.112" (2.85mm)	-40°C ~ 130°C	0.5 pF	2.5A (AC/DC)

共 1007 记录«上一页 1... 26 27 28 293031 32 33...51 下一页»
