购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z-15GQ-BSWITCH SNAP ACTION SPDT 15A 125V |
7,258 |
|
规格书 |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP00 | - | 250 ~ 350gf | 114gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|

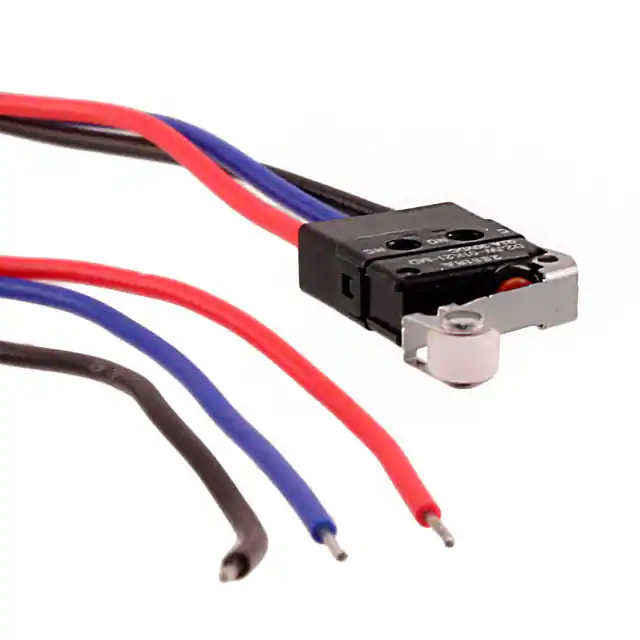

D2JW-01K21-MDSWITCH SNAP ACTION SPDT 0.1A 30V |
420 |
|
规格书 |
D2JW | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 100gf | 20gf | 0.575" (14.6mm) | 0.205" (5.2mm) | 0.020" (0.5mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|

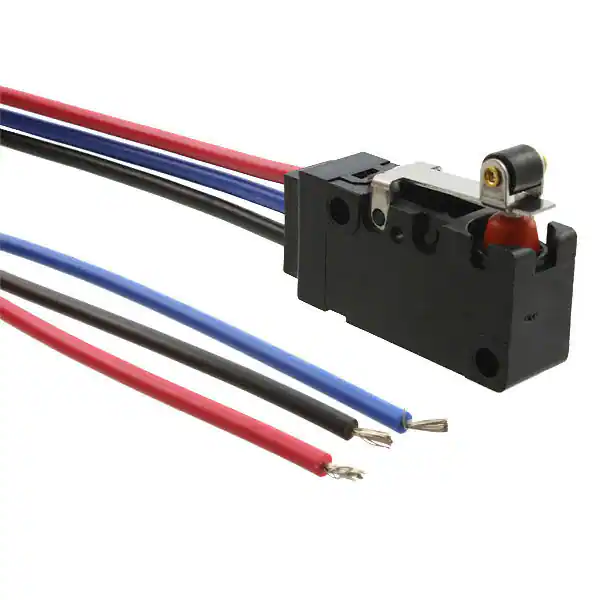

D2VW-01L2A-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
668 |
|
规格书 |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
311SX2-TSWITCH SNAP ACTION SPDT 5A 125V |
2,715 |
|
规格书 |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.325" (8.25mm) | 0.114" (2.9mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -55°C ~ 125°C |
|
Z-15GQ22-BSWITCH SNAP ACTION SPDT 15A 125V |
2,351 |
|
规格书 |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 250 ~ 350gf | 114gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
Z-15GW-BSWITCH SNAP ACTION SPDT 15A 125V |
229 |
|
规格书 |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 70gf | 14gf | 0.748" (19.0mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
BZ-2RW82-A2SWITCH SNAP ACTION SPDT 15A 125V |
570 |
|
规格书 |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 21gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|

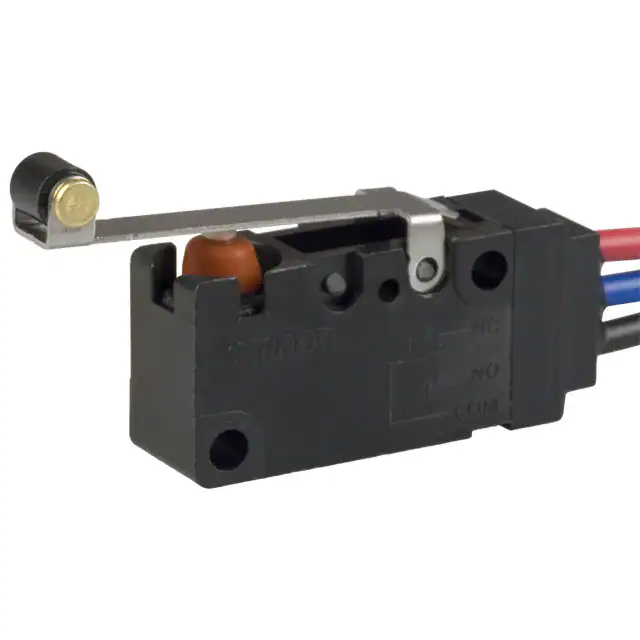

D2VW-5L2-1MSSWITCH SNAP ACTION SPDT 5A 125V |
1,505 |
|
规格书 |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
311SX4-TSWITCH SNAP ACTION SPDT 5A 125V |
195 |
|
规格书 |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 60gf | 11gf | 0.557" (14.15mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|
1SX1-TSWITCH SNAP ACTION SPDT 7A 250V |
758 |
|
规格书 |
SX | Tray | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
2DM409SWITCH SNAP ACTION DPDT 10A 125V |
103 |
|
规格书 |
DM | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 680gf | - | 0.745" (18.9mm) | - | - | 0.590" (15.0mm) | -37°C ~ 82°C |
|
11TL602SWITCH SNAP ACTION SPDT 15A 125V |
1,015 |
|
规格书 |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

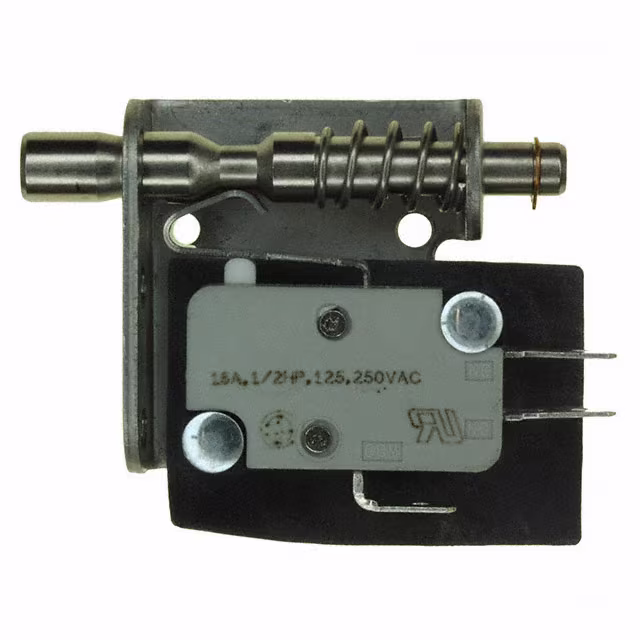

11TL404SWITCH SNAP ACTION SPDT 15A 125V |
403 |
|
规格书 |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
X0201731SWITCH SNAP ACTION SPDT 10A 250V |
120 |
|
规格书 |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 408gf | 102gf | 0.451" (11.45mm) | - | 0.020" (0.5mm) | 0.026" (0.7mm) | -20°C ~ 85°C |
|

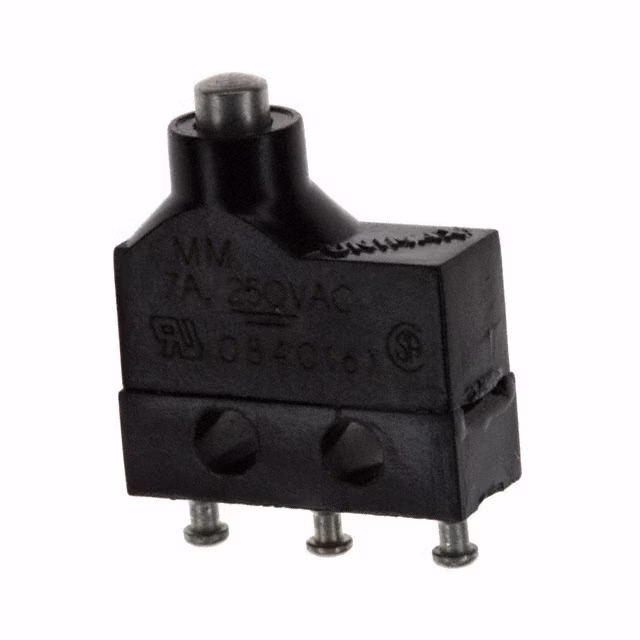

MMGGD1D0CSWITCH SNAP ACTION SPDT 7A 250V |
165 |
|
规格书 |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Overtravel Plunger | Chassis Mount | Solder Turret | - | - | 142gf | 20gf | 0.472" (12.0mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -55°C ~ 135°C |
|
311SX5-TSWITCH SNAP ACTION SPDT 5A 125V |
202 |
|
规格书 |
SX | Tray | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Simulated Roller | Chassis Mount | Solder Turret | - | - | 30gf | 5.099gf | 0.585" (14.86mm) | 0.106" (2.7mm) | 0.035" (0.9mm) | 0.022" (0.55mm) | -55°C ~ 125°C |
|
11SM23-TSWITCH SNAP ACTION SPDT 1A 125V |
308 |
|
规格书 |
SM | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
BZ-2R55-A2-SSWITCH SNAP ACTION SPDT 15A 125V |
464 |
|
规格书 |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 425gf | 113gf | 0.625" (15.9mm) | - | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|

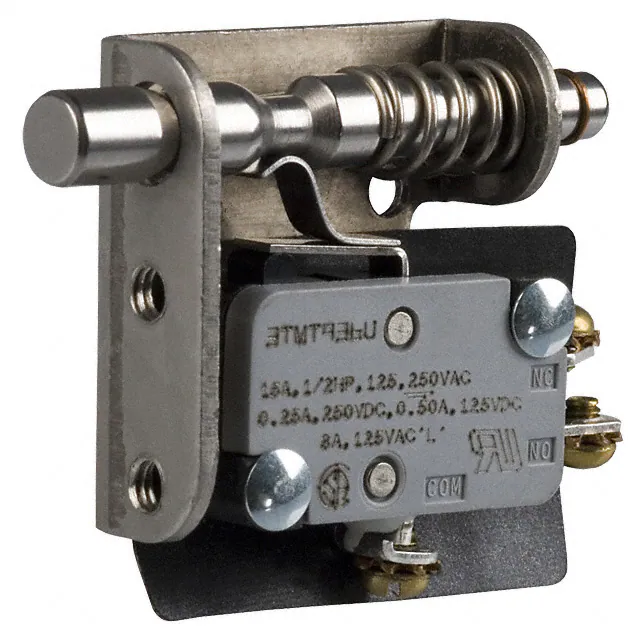

11TL604SWITCH SNAP ACTION SPDT 15A 125V |
526 |
|
规格书 |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|

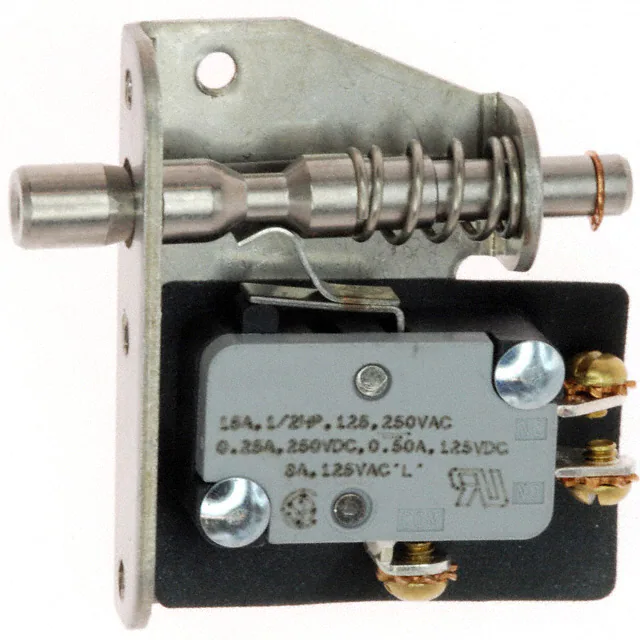

12TL604SWITCH SNAP ACTION SPDT 15A 125V |
319 |
|
规格书 |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
