购物车LED 发射器 - 红外线、紫外线、可见光
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 电流 - 直流正向（If）（最大值） | 辐射强度 (Ie) 最小值 @ If | 波长 | 电压 - 正向 (Vf)（典型值） | 视角 | 方向 | 工作温度 | 等级 | 认证 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUN9GF1A395NM CA3535_FLAT PACKAGE |
927 |
|
规格书 |
- | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1.4A | - | 395nm | 3.5V | 115° | Top View | -10°C ~ 85°C | - | - | Surface Mount |
|
ELUC3535NUB-P7085Q15070100-S22QHIGH POWER UVC LED (10 MW) |
841 |
|
规格书 |
ELUC3535NUB | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 150mA | - | 278nm | 6V | 120° | Top View | -30°C ~ 60°C | - | - | Surface Mount |
|
IN-C39ATOU4TOP VIEW 3939 3.9X3.9X3.0 |
598 |
|
规格书 |
IN-C39(X)TO UV | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1.2A | - | 380nm ~ 390nm | 3.7V | 30° | Top View | -40°C ~ 80°C | - | - | Surface Mount |
|
LS-0405-014405NM INGAN UV LED ASSY |
106 |
|
规格书 |
LS-0405 | TO-46-2 Lens Top Metal Can | Tray | Active | Ultraviolet (UV) | - | - | 405nm (400nm ~ 410nm) | 3.5V | - | Top View | -40°C ~ 100°C (TA) | - | - | Through Hole |
|
|
IN-C39CTOU2TOP VIEW 3939 3.9X3.9X1.53 |
266 |
|
规格书 |
IN-C39(X)TO UV | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1.2A | - | 365nm ~ 370nm | 3.7V | 120° | Top View | -40°C ~ 80°C | - | - | Surface Mount |
|
|
IN-C39BTOU2TOP VIEW 3939 3.9X3.9X2.5 |
240 |
|
规格书 |
IN-C39(X)TO UV | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1.2A | - | 365nm ~ 370nm | 3.7V | 60° | Top View | -40°C ~ 80°C | - | - | Surface Mount |
|
15335339AA350LED UV 395NM 800MA SMD |
265 |
|
规格书 |
WL-SUMW | 2-SMD, No Lead Exposed Pad | Tape & Reel (TR) | Active | Ultraviolet (UV) | 800mA | - | 395nm | 3.5V | 130° | Top View | -40°C ~ 85°C (TA) | - | - | Surface Mount |
|
|
AUV4-SQD1-0RT0J3W 3535, 130DEG, 365NM |
1,223 |
|
规格书 |
AUV4-Sxx1-0xx0J | 3-SMD, No Lead | Tape & Reel (TR) | Active | Ultraviolet (UV) | 500mA | 910mW/sr @ 500mA | 365nm | 3.55V | 130° | Top View | -10°C ~ 85°C | - | - | Surface Mount |
|
AUV3-SQ62-0RT0K3W 3535, 60DEG, 365NM |
1,035 |
|
规格书 |
AUV3-Sxx2-0xx0K | 1414 (3535 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 700mA | - | 365nm | 3.7V | 60° | Top View | -10°C ~ 85°C | - | - | Surface Mount |
|
|
LS-1050-0151050NM AIGAAS LED ASSY |
134 |
|
规格书 |
LS-1050 | TO-46-2 Lens Top Metal Can | Tray | Active | Infrared (IR) | 100mA | - | 1050nm (1030nm ~ 1070nm) | 1.15V | - | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|

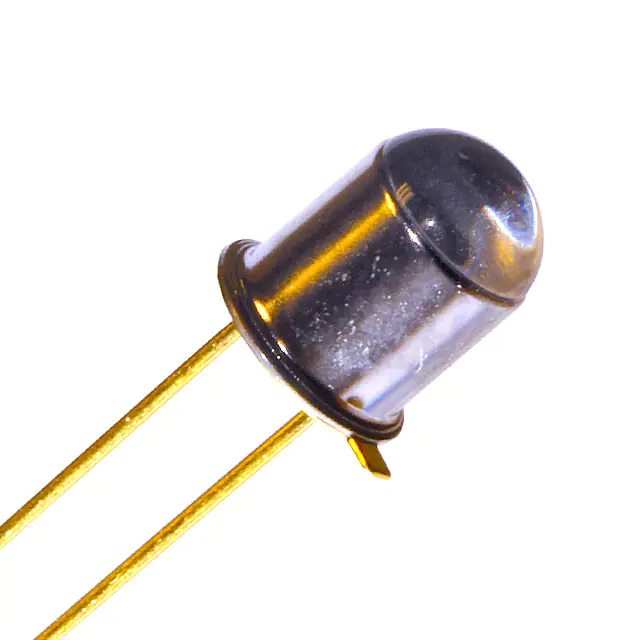

MTE5270NEMITTER 5MM 527NM LOW DOME TO18 |
128 |
|
规格书 |
- | TO-206AA, TO-18-3 Metal Can | Bulk | Active | Visible | 150mA | 26mW/sr @ 50mA | 527nm | 2.7V | 18° | Top View | -40°C ~ 100°C | - | - | Through Hole |
|
LS-1550-0151550NM AIGAAS LED ASSY |
154 |
|
规格书 |
LS-1550 | TO-46-2 Lens Top Metal Can | Tray | Active | Infrared (IR) | 200mA | - | 1550nm (1510nm ~ 1590nm) | 0.7V | - | Top View | -40°C ~ 85°C (TA) | - | - | Through Hole |
|
XBT-3535-UV-A130-CD270-00EMITTER UV 270NM MODULE |
1,053 |
|
规格书 |
- | 1414 (3535 Metric) | Tape & Reel (TR) | Last Time Buy | Ultraviolet (UV) | 800mA | - | 275nm | 6.5V | 130° | Top View | 100°C | - | - | Surface Mount |
|
IN-C68QABTMU4TOP VIEW / 6868 /6.8 X 6.8 X 3.7 |
103 |
|
规格书 |
IN-C68QA(X)TM UV | 2727 (6868 Metric) | Tape & Reel (TR) | Active | Ultraviolet (UV) | 1A | - | 380nm ~ 390nm | 14V | 60° | Top View | -40°C ~ 80°C | - | - | Surface Mount |
|

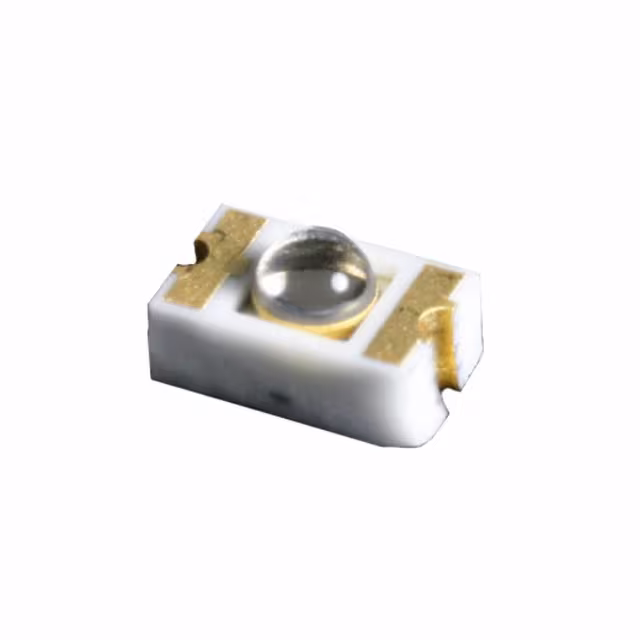

MTPS8085CPEMITTER IR 855NM 60MA SMD |
121 |
|
规格书 |
Point Source | 2-SMD, No Lead | Bulk | Active | Infrared (IR) | 60mA | - | 855nm | 1.7V | 12° | Top View | -20°C ~ 85°C (TA) | - | - | Surface Mount |
|

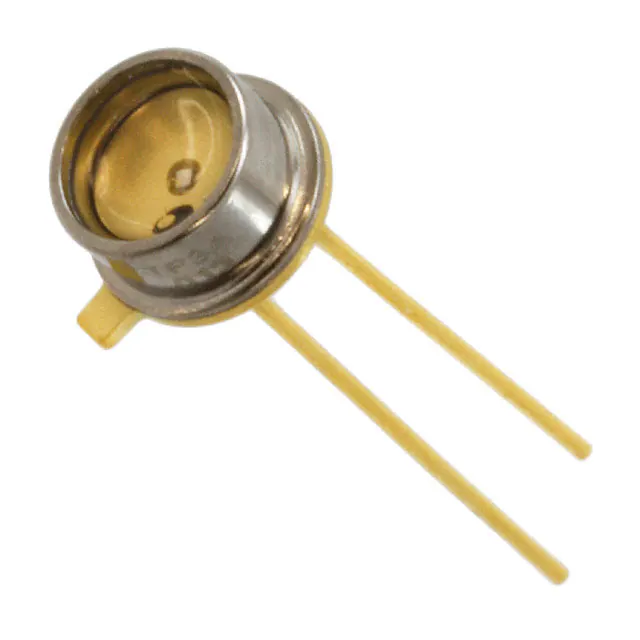

MTE1300-WRCEMITTER IR 1300NM 100MA TO-46 |
620 |
|
规格书 |
- | TO-46-2 Lens Top Metal Can | Bulk | Active | Infrared (IR) | 100mA | - | 1300nm | 0.8V | 90° | Top View | -25°C ~ 85°C (TA) | - | - | Through Hole |
|
OD-666EMITTER IR 880NM 400MA TO-66 |
4,993 |
|
规格书 |
- | TO-213AA, TO-66-2 | Tray | Active | Infrared (IR) | 400mA | - | 880nm | 9V | 120° | Top View | -55°C ~ 100°C (TA) | - | - | Through Hole |
|
OD-880-015EMITTER IR 880NM 400MA TO-66 |
4,941 |
|
规格书 |
- | TO-213AA, TO-66-2 | Tray | Active | Infrared (IR) | 400mA | - | 880nm | 4.5V | 120° | Top View | -55°C ~ 100°C (TA) | - | - | Through Hole |
|
CBM-25X-UV-Y31-CA400-22MOD COB LED UV MCPCB |
4,745 |
|
规格书 |
- | Module | Tray | Active | Ultraviolet (UV) | 4A | - | 405nm | 7.5V | - | Top View | 125°C | - | - | Chassis Mount |
|
|
ULM-1BUV-C LED CAP UNIT FOR STORAGE WA |
251 |
|
规格书 |
- | Radial | Box | Active | Ultraviolet (UV) | 300mA | - | 265nm | 6.6V | 60° | Top View | 0°C ~ 40°C | - | - | Through Hole |
