| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XLC-25-HO/P +9~54V300~1050MA |
2,384 |
|
规格书 |
XLC-25 (25W) | Bulk | Active | - | Constant Power | AC DC Converter | 1 | 110VAC | 305VAC | 9 ~ 54V | 1.05A | 25 W | 3.75 kV | - | OCP, OTP, OVP, SCP | - | -25°C ~ 85°C (With Derating) | 88% | Terminal Block | 4.21" L x 1.57" W x 1.26" H (107.0mm x 40.0mm x 32.0mm) | CB, CCC, CE, cULus, cURus, EAC, ENEC, UKCA |
|
|
XLC-25-12O/P +12V/2.1A |
2,191 |
|
规格书 |
XLC-25 (25W) | Bulk | Active | - | Constant Voltage | AC DC Converter | 1 | 110VAC | 305VAC | 12V | 2.1A | 25 W | 3.75 kV | - | OCP, OTP, OVP, SCP | - | -25°C ~ 85°C (With Derating) | 86% | Terminal Block | 4.21" L x 1.57" W x 1.26" H (107.0mm x 40.0mm x 32.0mm) | CB, CCC, CE, cULus, cURus, EAC, ENEC, UKCA |
|
PLP-60-48LED DRIVER CC AC/DC 36-48V 1.3A |
4,124 |
|
规格书 |
PLP-60 (60W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 264VAC | 36 ~ 48V | 1.3A | 62 W | 3.75 kV | - | OCP, OVP, SCP | - | -30°C ~ 70°C | 89% | Rectangular, 2 Position | 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.6mm) | CB, CCC, CE, TUV, UR |
|
|
RL12-60BF-LED60W, 120V, BF, AC LED DRIVER |
2,941 |
|
规格书 |
RL | Box | Active | - | - | AC AC Converter | 1 | 108VAC | 132VAC | 12V | 5A | 60 W | - | ELV | - | - | -20°C ~ 90°C | 90% | Wire Leads | 2.20" L x 1.23" W x 0.75" H (55.9mm x 31.2mm x 19.1mm) | cURus |
|
PLD-16-350ALED DRVR CC AC/DC 24-48V 350MA |
1,909 |
|
规格书 |
PLD-16 (16W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 135VAC | 24 ~ 48V | 350mA | 17 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 50°C | 84.5% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | UR |
|
PLP-30-24LED DRIVER CC AC/DC 18-24V 1.3A |
4,109 |
|
规格书 |
PLP-30 (30W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 264VAC | 18 ~ 24V | 1.3A | 31 W | 3.75 kV | - | OCP, OVP, SCP | - | -30°C ~ 70°C | 85.5% | Rectangular, 2 Position | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) | CB, CCC, CE, cURus, TUV |
|
|
PLD-16-350BLED DRVR CC AC/DC 24-48V 350MA |
3,584 |
|
规格书 |
PLD-16 (16W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 24 ~ 48V | 350mA | 17 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 50°C | 85.5% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | CB, CE, UR |
|
|
PLD-16-700BLED DRVR CC AC/DC 16-24V 700MA |
3,865 |
|
规格书 |
PLD-16 (16W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 16 ~ 24V | 700mA | 17 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 50°C | 86% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | CB, CE, cURus |
|
|
PLD-16-1400ALED DRIVER CC AC/DC 8-12V 1.4A |
3,642 |
|
规格书 |
PLD-16 (16W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 135VAC | 8 ~ 12V | 1.4A | 17 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 50°C | 82.5% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | cURus |
|
|
PLD-16-1050ALED DRVR CC AC/DC 12-16V 1.05A |
3,263 |
|
规格书 |
PLD-16 (16W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 135VAC | 12 ~ 16V | 1.05A | 17 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 50°C | 84% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | cURus |
|
|
PLP-60-12LED DRIVER CC AC/DC 9-12V 5A |
4,571 |
|
规格书 |
PLP-60 (60W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 264VAC | 9 ~ 12V | 5A | 60 W | 3.75 kV | - | OCP, OVP, SCP | - | -30°C ~ 70°C | 84% | Rectangular, 2 Position | 4.00" L x 2.00" W x 1.17" H (101.6mm x 50.8mm x 29.6mm) | CB, CCC, CE, cURus, TUV |
|
PCD-25-700BLED DRVR CC AC/DC 24-36V 700MA |
3,814 |
|
规格书 |
PCD-25 (25W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 24 ~ 36V | 700mA | 25 W | 3.75 kV | Triac | OTP, SCP | IP42 | -30°C ~ 60°C | 81% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | CB, CE |
|
|
PCD-25-1400ALED DRIVER CC AC/DC 12-18V 1.4A |
4,066 |
|
规格书 |
PCD-25 (25W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 135VAC | 12 ~ 18V | 1.4A | 25 W | 3.75 kV | Triac | OTP, SCP | IP42 | -30°C ~ 60°C | 80% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | cURus |
|
PLD-25-350LED DRVR CC AC/DC 36-58V 350MA |
4,908 |
|
规格书 |
PLD-25 (25W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 36 ~ 58V | 350mA | 20 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 60°C | 85% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | CB, CE, UR |
|

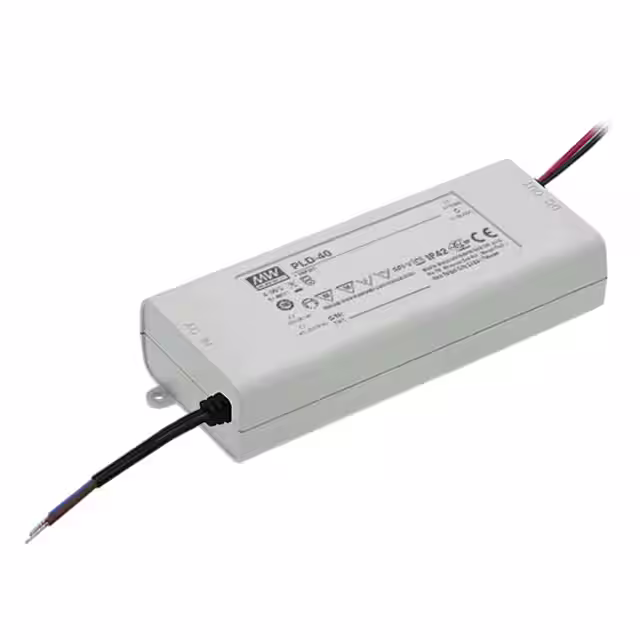

PLD-40-1400BLED DRIVER CC AC/DC 17-29V 1.4A |
3,200 |
|
规格书 |
PLD-40 (40W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 17 ~ 29V | 1.4A | 41 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 50°C | 86% | Wire Leads | 5.04" L x 2.36" W x 1.24" H (128.0mm x 60.0mm x 31.5mm) | CB, CE, ENEC |
|
|
XLC-40-HO/P +9~54V600~1400MA |
2,318 |
|
规格书 |
XLC-40 (40W) | Bulk | Active | - | Constant Power | AC DC Converter | 1 | 110VAC | 305VAC | 9 ~ 54V | 1.4A | 40 W | 3.75 kV | - | OCP, OTP, OVP, SCP | - | -25°C ~ 90°C (With Derating) | 88% | Terminal Block | 4.21" L x 1.57" W x 1.26" H (107.0mm x 40.0mm x 32.0mm) | CB, CCC, CE, cULus, cURus, EAC, ENEC, UKCA |
|
|
XLC-40-12O/P +12V/3.4A |
3,442 |
|
规格书 |
XLC-40 (40W) | Bulk | Active | - | Constant Voltage | AC DC Converter | 1 | 110VAC | 305VAC | 12V | 3.4A | 40 W | 3.75 kV | - | OCP, OTP, OVP, SCP | - | -25°C ~ 90°C (With Derating) | 86% | Terminal Block | 4.21" L x 1.57" W x 1.26" H (107.0mm x 40.0mm x 32.0mm) | CB, CCC, CE, cULus, cURus, EAC, ENEC, UKCA |
|
|
XLC-40-24O/P +24V/1.7A |
2,348 |
|
规格书 |
XLC-40 (40W) | Bulk | Active | - | Constant Voltage | AC DC Converter | 1 | 110VAC | 305VAC | 24V | 1.7A | 40 W | 3.75 kV | - | OCP, OTP, OVP, SCP | - | -25°C ~ 90°C (With Derating) | 88% | Terminal Block | 4.21" L x 1.57" W x 1.26" H (107.0mm x 40.0mm x 32.0mm) | CB, CCC, CE, cULus, cURus, EAC, ENEC, UKCA |
|
|
PLD-25-1400LED DRIVER CC AC/DC 12-18V 1.4A |
3,849 |
|
规格书 |
PLD-25 (25W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 12 ~ 18V | 1.4A | 25 W | 3.75 kV | - | OTP, SCP | IP42 | -30°C ~ 60°C | 84% | Wire Leads | 3.31" L x 2.24" W x 1.16" H (84.0mm x 57.0mm x 29.5mm) | CB, CE, cURus |
|
|
AB-D2030-V24-Q110VAC INPUT, 24VDC OUPUT, 30W |
3,393 |
|
规格书 |
AB-D2030-Vxx-Q | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 90VAC | 132VAC | 24V | 1.25A | 30 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 86% | Screw Terminal | 6.14" L x 1.97" W x 0.67" H (156.0mm x 50.0mm x 17.0mm) | cULus, cURus |
