| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-150-C1050ALED POWER SUPPLIES 150.15W 1050M |
2,871 |
|
规格书 |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 72 ~ 143V | 1.05A | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 70°C (With Derating) | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
ELG-150-24BLED DRVR CC/CV AC/DC 12-24V |
4,871 |
|
规格书 |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12 ~ 24V | 6.25A | 150 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 89% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC, RCM |
|
HLG-80H-42ALED DVR CC/CV AC/DC 38-46V 1.95A |
2,332 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 38 ~ 46V | 1.95A | 82 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL |
|
|
HLG-80H-48BLED DVR CC/CV ACDC 28.8-48V 1.7A |
1,181 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 1.7A | 82 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL |
|
USVI-120012FALED DRIVER |
3,973 |
|
规格书 |
USVI S12 | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 2 | 108VAC | 305VAC | 12V | 10A, 5A | 120 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 86% | Wire Leads | 11.75" L x 1.70" W x 1.18" H (298.5mm x 43.2mm x 30.0mm) | cCSAus, CE, cULus |
|
|
ELG-150-C1050BLED POWER SUPPLIES 150.15W 1050M |
2,578 |
|
规格书 |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 72 ~ 143V | 1.05A | 150 W | 3.75 kV | PWM | OTP, OVP, SCP | IP67 | -40°C ~ 70°C (With Derating) | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
ELG-150-C500BLED DRVR CC AC/DC 150-300V 500MA |
2,469 |
|
规格书 |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 150 ~ 300V | 500mA | 150 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC |
|
XLG-240-L-AB240W LED POWER SUPPLY O/P +178~ |
2,461 |
|
规格书 |
XLG-240 (240W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 178 ~ 342V | 700mA | 239 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
ELG-150-54ALED DRVR CC/CV AC/DC 27-54V 2.8A |
3,376 |
|
规格书 |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 27 ~ 54V | 2.8A | 151 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 91% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, ENEC, RCM |
|
NPF-200-12200W CLASS II & IP67 POWER SUPPL |
2,126 |
|
规格书 |
NPF-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12V | 15A | 200 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67, NEMA 410 | -40°C ~ 85°C | 92% | Wire Leads | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CCC, CE, cURus, EAC, ENEC |
|
HBG-100-48BLED DRIVER CC AC/DC 28.8-48V 2A |
2,034 |
|
规格书 |
HBG-100 (100W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 28.8 ~ 48V | 2A | 96 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP | IP67 | -40°C ~ 85°C | 91% | Wire Leads | 5.12" Dia x 2.62" H (130.0mm x 66.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
HLG-80H-48ALED DRVR CC/CV AC/DC 43-53V 1.7A |
2,712 |
|
规格书 |
HLG-80H (80W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 43 ~ 53V | 1.7A | 82 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 80°C | 91% | Wire Leads | 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm) | CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL |
|
PLC-60-12LED DRIVER CC AC/DC 8.4-12V 5A |
3,224 |
|
规格书 |
PLC-60 (60W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 264VAC | 8.4 ~ 12V | 5A | 60 W | 3.75 kV | - | OCP, OTP, OVP, SCP | - | -30°C ~ 50°C | 85% | Terminal Block | 7.15" L x 2.44" W x 1.38" H (181.5mm x 62.0mm x 35.0mm) | CB, CCC, CE, cURus, PSE, TUV |
|
PLC-100-12LED DRIVER CC/CV AC/DC 12V 5A |
1,402 |
|
规格书 |
PLC-100 (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 264VAC | 12V | 5A | 60 W | 3.75 kV | - | OTP, OVP, SCP | - | -30°C ~ 50°C | 83% | Wire Leads | 7.89" L x 2.74" W x 1.38" H (200.5mm x 69.5mm x 35.0mm) | CB, CCC, CE, cURus, PSE, TUV |
|

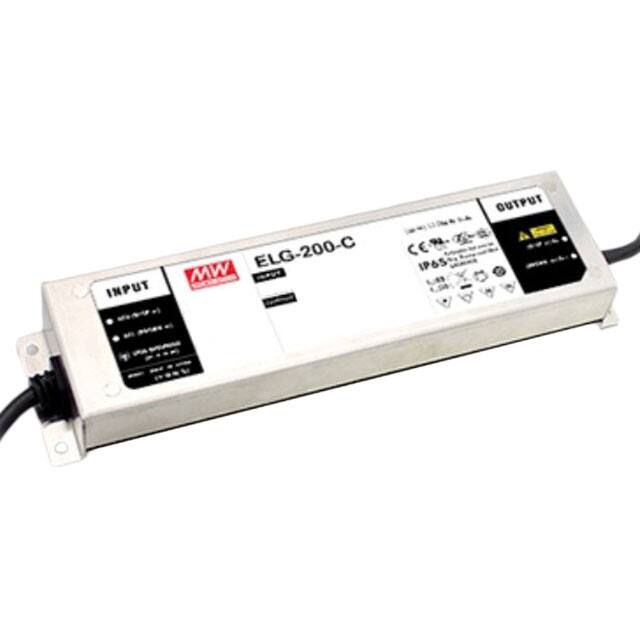

ELG-200-C1400ALED POWER SUPPLIES 198.8W71-142V |
1,196 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 71 ~ 142V | 1.4A | 199 W | 3.75 kV | - | OTP, OVP, SCP | IP65 | -40°C ~ 85°C | 92% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
ELG-200-C700LED DRVR CC AC/DC 142-286V 700MA |
3,655 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 142 ~ 286V | 700mA | 200 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 7.87" L x 2.80" W x 1.48" H (200.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|

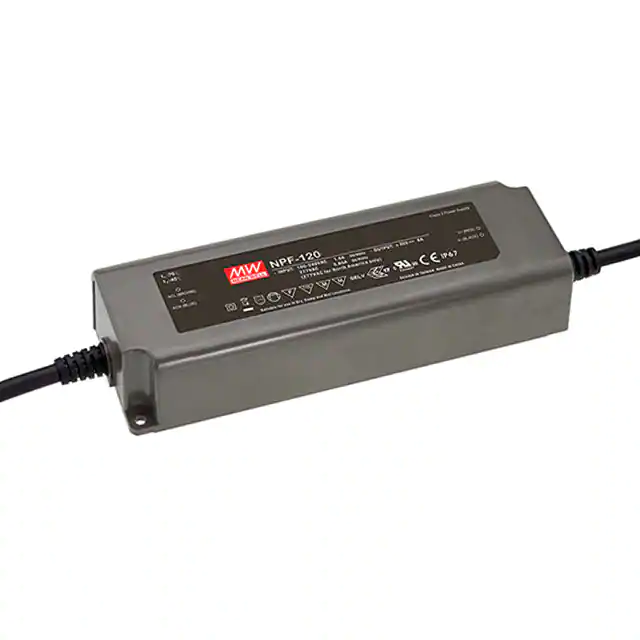

NPF-120-20LED DRVR CC/CV AC/DC 12-20V 6A |
4,689 |
|
规格书 |
NPF-120 (120W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 20V | 6A | 120 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 90% | Wire Leads | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC |
|
HLG-100H-54BLED DVR CC/CV AC/DC 27-54V 1.77A |
4,701 |
|
规格书 |
HLG-100H (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 27 ~ 54V | 1.77A | 96 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 93% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
|
HLG-100H-36BLED DVR CC/CV AC/DC 18-36V 2.65A |
3,671 |
|
规格书 |
HLG-100H (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 36V | 2.65A | 95 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 80°C | 93% | Wire Leads | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) | CB, CCC, CE, cURus, PSE, RCM, TUV |
|
ELG-200-C1050BLED POWER SUPPLIES 199.5W95-190V |
4,131 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 95 ~ 190V | 1.05A | 200 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
