购物车LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLED75W-015LED DRIVER CV AC/DC 15V 5A |
2,100 |
|
规格书 |
PLED75W | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 15V | 5A | 75 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 86% | Wire Leads | 5.00" L x 2.32" W x 1.47" H (140.2mm x 58.9mm x 37.3mm) | CE, cULus |
|
|
PLED75W-036LED DRIVER CV AC/DC 36V 2.1A |
1,589 |
|
规格书 |
PLED75W | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 36V | 2.1A | 75 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 89% | Wire Leads | 5.00" L x 2.32" W x 1.47" H (140.2mm x 58.9mm x 37.3mm) | CE, cULus |
|
|
PLED75W-048LED DRIVER CV AC/DC 48V 1.56A |
4,649 |
|
规格书 |
PLED75W | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 48V | 1.56A | 75 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 90% | Wire Leads | 5.00" L x 2.32" W x 1.47" H (140.2mm x 58.9mm x 37.3mm) | CE, cULus |
|
PLED96W-274-C0350LED DRIVR CC AC/DC 92-274V 350MA |
1,476 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 92 ~ 274V | 350mA | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 92% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-137-C0700LED DRIVR CC AC/DC 46-137V 700MA |
4,434 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 46 ~ 137V | 700mA | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 92% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-092-C1050LED DRIVER CC AC/DC 31-92V 1.05A |
4,744 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 31 ~ 92V | 1.05A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 91% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-069-C1400LED DRIVER CC AC/DC 23-69V 1.4A |
1,418 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 23 ~ 69V | 1.4A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 91% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-048-C2000LED DRIVER CC AC/DC 16-48V 2A |
3,860 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 16 ~ 48V | 2A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 90% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-046-C2100LED DRIVER CC AC/DC 16-46V 2.1A |
2,047 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 16 ~ 46V | 2.1A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 90% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-036-C2660LED DRIVER CC AC/DC 12-36V 2.66A |
1,653 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 12 ~ 36V | 2.66A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 89% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-027-C3500LED DRIVER CC AC/DC 9-27V 3.5A |
1,124 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 27V | 3.5A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 88% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-025-C3840LED DRIVER CC AC/DC 9-25V 3.84A |
3,660 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 25V | 3.84A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 88% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-024-C4000LED DRIVER CC AC/DC 8-24V 4A |
1,932 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 8 ~ 24V | 4A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 88% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-020-C4800LED DRIVER CC AC/DC 7-20V 4.8A |
1,680 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 7 ~ 20V | 4.8A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 87% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
PLED96W-025-C3840-DLED DRIVER CC AC/DC 9-25V 3.84A |
1,604 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 9 ~ 25V | 3.84A | 96 W | - | Analog | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 88% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-046LED DRIVER CV AC/DC 46V 2.1A |
1,979 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 46V | 2.1A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 90% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|
|
PLED96W-054LED DRIVER CV AC/DC 54V 1.75A |
4,085 |
|
规格书 |
PLED96W | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 54V | 1.75A | 96 W | - | - | OCP, OVP, SCP | IP66, NEMA 6 | -30°C ~ 65°C | 91% | Wire Leads | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) | CE, cULus |
|

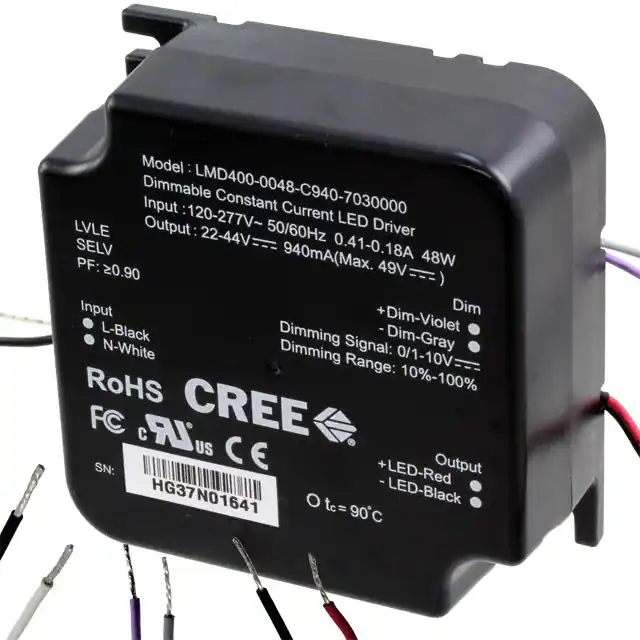

LMD400-0048-C940-7030000LED DRIVER CC AC/DC 22-44V 940MA |
1,488 |
|
规格书 |
LMD400 | Tray | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 108VAC | 305VAC | 22 ~ 44V | 940mA | 41 W | - | Analog | - | IP20, NEMA 410 | 0°C ~ 90°C | 87% | Wire Leads | 3.54" L x 3.54" W x 1.48" H (90.0mm x 90.0mm x 37.5mm) | CE, CQC, cULus |
|
LED75W-015LED DRIVER CV AC/DC 15V 5A |
2,185 |
|
规格书 |
LED-75W | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 15V | 5A | 75 W | - | - | OCP, OVP, SCP | IP66 | -30°C ~ 70°C | 86% | Wire Leads | 6.42" L x 2.81" W x 1.83" H (173.0mm x 71.3mm x 46.5mm) | CE, cULus |
|
|
LED75W-015-C5000LED DRIVER CC AC/DC 5-15V 5A |
1,462 |
|
规格书 |
LED-75W | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 5 ~ 15V | 5A | 75 W | - | - | OCP, OVP, SCP | IP66 | -30°C ~ 70°C | 86% | Wire Leads | 6.42" L x 2.81" W x 1.83" H (173.0mm x 71.3mm x 46.5mm) | CE, cULus |
