购物车LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

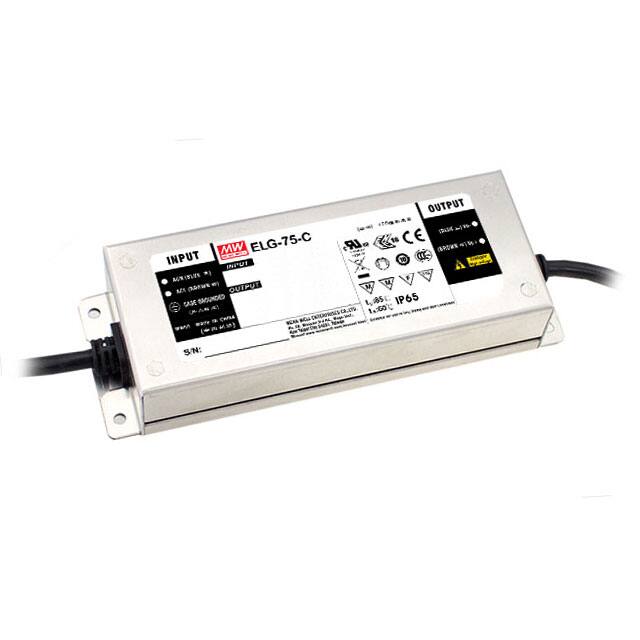

ELG-75-C700DALED POWER SUPPLIES 700MA 53-107V |
2,822 |
|
规格书 |
ELG-75-C (75W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 53 ~ 107V | 700mA | 75 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90% | Wire Leads | 6.14" L x 2.48" W x 1.40" H (156.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
ELG-75-42D2LED POWER SUPPLIES 75.6W 72V 1.8 |
4,381 |
|
规格书 |
ELG-75 (75W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 21 ~ 42V | 1.8A | 76 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90% | Wire Leads | 6.14" L x 2.48" W x 1.40" H (156.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
ELG-150-C700DALED POWER SUPPLIES 700MA107-214V |
4,439 |
|
规格书 |
ELG-150-C (150W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 107 ~ 214V | 700mA | 150 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 70°C (With Derating) | 92% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
USCI-100140GAUSCI-PRO 100W DIMMING |
4,051 |
|
规格书 |
USCI-PRO | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 108VAC | 305VAC | 47 ~ 143V | 1.4A | 100 W | 3.75 kV | Analog | OCP, OTP, OVP, SCP | IP52 | -40°C ~ 65°C | 92.5% | Wire Leads | 5.50" L x 2.36" W x 1.50" H (139.7mm x 59.9mm x 38.1mm) | CB, CE, cULus |
|
USVI-180012FALED DRIVER |
1,940 |
|
规格书 |
USVI S12 | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 3 | 108VAC | 305VAC | 12V | 15A, 5A | 180 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | - | -40°C ~ 55°C | 89% | Wire Leads | 16.70" L x 1.70" W x 1.18" H (424.2mm x 43.2mm x 30.0mm) | cCSAus, CE, cULus |
|
PWM-200-48200W CLASS II & IP67 POWER SUPPL |
4,546 |
|
规格书 |
PWM-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 48V | 4.17A | 200 W | 3.75 kV | Analog, PWM | OTP, OVP, SCP | IP67, NEMA 410 | -40°C ~ 85°C | 94% | Wire Leads | 7.68" L x 2.68" W x 1.56" H (195.0mm x 68.0mm x 39.5mm) | CB, CCC, CE, cURus, EAC, ENEC |
|
ELG-200-C700DALED POWER SUPPLIES 200.2W 142-28 |
3,913 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 142 ~ 286V | 700mA | 200 W | 3.75 kV | DALI | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
ELG-200-C1400DALED POWER SUPPLIES 198.8W71-142V |
4,925 |
|
规格书 |
ELG-200-C (200W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 71 ~ 142V | 1.4A | 199 W | 3.75 kV | DALI | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 92% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
USCI-150140GCUSCI-PRO 150W DIMMING |
3,887 |
|
规格书 |
USCI-PRO | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 108VAC | 305VAC | 72 ~ 214V | 1.4A | 150 W | 3.75 kV | Analog | OCP, OTP, OVP, SCP | IP52 | -40°C ~ 65°C | 93% | Wire Leads | 8.40" L x 2.36" W x 1.50" H (213.4mm x 59.9mm x 38.1mm) | CB, CE, cULus |
|
|
ELG-200-48AB-3YLED AC/DC DRIVER 200W |
3,660 |
|
规格书 |
ELG-200 (200W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 48V | 4.16A | 200 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|

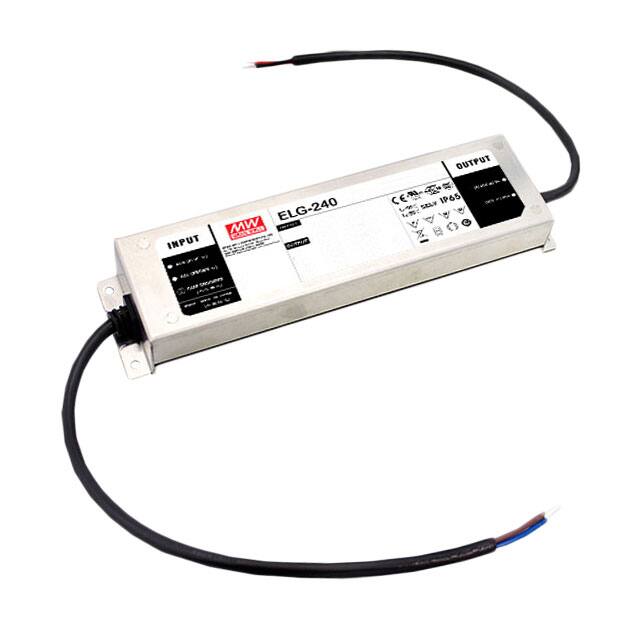

ELG-240-48DALED POWER SUPPLIES 240W 48V 5A C |
1,640 |
|
规格书 |
ELG-240 (240W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 24 ~ 48V | 5A | 240 W | 3.75 kV | DALI | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 93% | Wire Leads | 8.66" L x 2.80" W x 1.48" H (220.0mm x 71.0mm x 37.5mm) | CB, CCC, CE, cURus, ENEC, RCM |
|
ALD-514012PJ134LED DRIVER CC BOOST 44V 140MA |
4,057 |
|
规格书 |
ALD | Bulk | Not For New Designs | Not Verified | Constant Current | Boost | 5 | 10.8V | 13.2V | 44V (Max) | 140mA | 7 W | - | Analog, PWM | Remote On/Off, OVP | - | -30°C ~ 85°C | - | Connector | 3.94" L x 1.97" W x 0.20" H (100.0mm x 50.0mm x 5.2mm) | - |
|
USCO-250140GAUSCO-PRO 250W DIMMING, IP67 |
3,967 |
|
规格书 |
USCO-PRO | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 99VAC | 305VAC | 90 ~ 238V | 1.4A | 250 W | 3.75 kV | Analog | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 55°C | 94.5% | Wire Leads | 8.78" L x 2.68" W x 1.46" H (223.0mm x 68.0mm x 37.0mm) | CB, CE, cURus, ENEC |
|
|
LNE-36V600WBGALED 600W 36V LOW LINE |
4,222 |
|
规格书 |
LNE-600W | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 277VAC | 36V | 16.7A | 601 W | 3.3 kV | - | OCP, OTP, OVP, SCP | - | -40°C ~ 70°C (With Derating) | 95.5% | Wire Leads | 12.11" L x 4.50" W x 2.00" H (307.6mm x 114.3mm x 50.8mm) | ATEX, CB Scheme, CE, EN, UL |
|
|
LNE-54V600WBGALED DRIVER |
3,190 |
|
规格书 |
LNE-600W | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 277VAC | 54V | 11.11A | 600 W | 3.3 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 70°C (With Derating) | 96% | Wire Leads | 12.11" L x 4.50" W x 2.00" H (307.6mm x 114.3mm x 50.8mm) | CB, CE, cURus, ENEC |
|
|
AB-D2015-V12-Q110VAC INPUT, 12VDC OUPUT, 15W |
3,703 |
|
规格书 |
AB-D2015-Vxx-Q | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 90VAC | 132VAC | 12V | 1.25A | 15 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 83% | Screw Terminal | 4.06" L x 1.40" W x 0.63" H (103.0mm x 35.5mm x 16.0mm) | cULus, cURus |
|
|
AB-D2015-V24-Q110VAC INPUT, 24VDC OUPUT, 15W |
1,164 |
|
规格书 |
AB-D2015-Vxx-Q | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 90VAC | 132VAC | 24V | 625mA | 15 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 86% | Screw Terminal | 4.06" L x 1.40" W x 0.63" H (103.0mm x 35.5mm x 16.0mm) | cULus, cURus |
|
LDB-350LWLED DRVR CC BCK-BST 2-40V 350MA |
2,284 |
|
规格书 |
LDB-L | Tray | Active | Not Verified | Constant Current | Buck-Boost | 1 | 9V | 36V | 2 ~ 40V | 350mA | - | - | PWM | Remote On/Off, OTP, SCP | IP67 | -40°C ~ 71°C | 90% | Wire Leads | 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm) | CE |
|
|
AB-D2020-V24-Q110VAC INPUT, 24VDC OUPUT, 20W |
3,902 |
|
规格书 |
AB-D2020-Vxx-Q | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 90VAC | 132VAC | 24V | 833mA | 20 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 85% | Screw Terminal | 4.06" L x 1.40" W x 0.63" H (103.0mm x 35.5mm x 16.0mm) | cULus, cURus |
|
|
AB-D2020-V12-Q110VAC INPUT, 12VDC OUPUT, 20W |
4,849 |
|
规格书 |
AB-D2020-Vxx-Q | Box | Active | - | Constant Voltage | AC DC Converter | 1 | 90VAC | 132VAC | 12V | 1.67A | 20 W | - | Non-Dimmable | OCP, OTP, OVP, SCP | IP20 | -20°C ~ 45°C | 83% | Screw Terminal | 4.06" L x 1.40" W x 0.63" H (103.0mm x 35.5mm x 16.0mm) | cULus, cURus |
