LED 彩色照明

图片	型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	颜色	波长	电流 - 测试	电压 - 正向 (Vf)（典型值）	流明/瓦特 @ 电流 - 测试	电流 - 最大值	光通量 @ 电流/温度	测试温度	视角	安装类型	供应商设备封装	尺寸 / 尺寸	高度 - 安装后（最大值）
	ELSH-F41Y1-0LPNM-AA3A5 LED SHUEN AMBER 589NM SMD Everlight Electronics Co Ltd	3,637	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Tape & Reel (TR)	Active	Amber	589nm (585nm ~ 593nm)	350mA	2.35V	60 lm/W	600mA	49lm (45lm ~ 52lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)

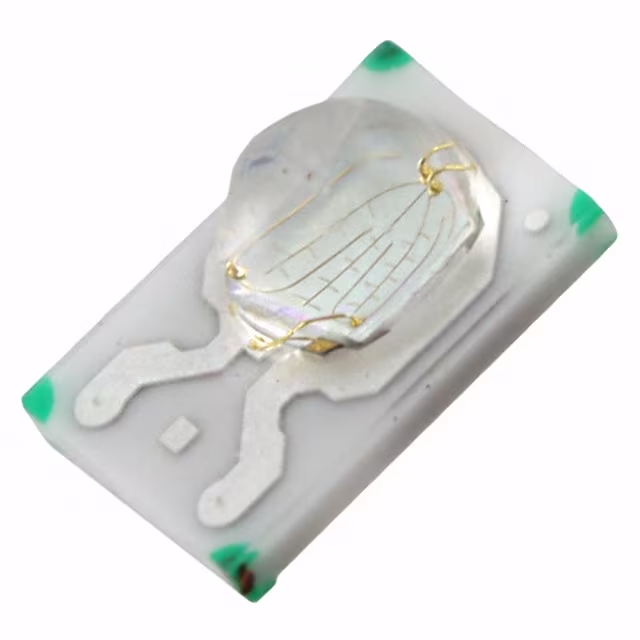

	ELSH-E71B1-0LPNM-CB7B8 LED SHUEN BLUE 465NM SMD Everlight Electronics Co Ltd	3,524	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Tape & Reel (TR)	Active	Blue	465nm (460nm ~ 470nm)	350mA	3.25V	15 lm/W	600mA	19lm (17lm ~ 20lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)

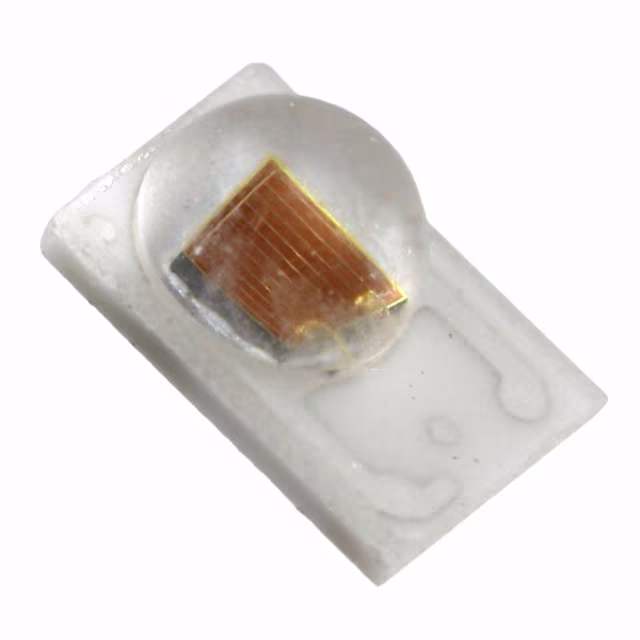

	ELSH-F51O1-0LPNM-AR3R4 LED SHUEN ORANGE 615NM SMD Everlight Electronics Co Ltd	1,708	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Tape & Reel (TR)	Active	Orange	615nm (610nm ~ 620nm)	350mA	2.35V	68 lm/W	600mA	56lm (52lm ~ 60lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)
	ELSH-F51R1-0LPNM-AR5R6 LED SHUEN RED 625NM SMD Everlight Electronics Co Ltd	4,968	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Tape & Reel (TR)	Active	Red	625nm (620nm ~ 630nm)	350mA	2.35V	68 lm/W	600mA	56lm (52lm ~ 60lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)
	ELSW-F51O1-0LPNM-AR3R4 LED SHWO ORANGE 615NM SMD Everlight Electronics Co Ltd	2,716	-	立即询价	规格书	SHWO	1414 (3535 Metric)	Tape & Reel (TR)	Active	Orange	615nm (610nm ~ 620nm)	350mA	2.35V	68 lm/W	400mA	56lm (52lm ~ 60lm)	25°C	120°	Surface Mount	SMD	0.138" L x 0.138" W (3.50mm x 3.50mm)	0.088" (2.23mm)
	ELSH-F61O1-0LPNM-AR3R4 LED SHUEN ORANGE 615NM SMD Everlight Electronics Co Ltd	1,680	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Cut Tape (CT)	Active	Orange	615nm (610nm ~ 620nm)	350mA	2.35V	79 lm/W	600mA	65lm (60lm ~ 70lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)
	ELSH-F81G1-0LPNM-CG2G3 LED SHUEN GREEN 530NM SMD Everlight Electronics Co Ltd	3,250	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Cut Tape (CT)	Active	Green	530nm (525nm ~ 535nm)	350mA	3.25V	75 lm/W	400mA	85lm (80lm ~ 90lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)
	ELSW-F81Y3-0LPNM-BA3A5 LED SHWO YELLOW 589NM SMD Everlight Electronics Co Ltd	2,209	-	立即询价	规格书	SHWO	1414 (3535 Metric)	Tape & Reel (TR)	Active	Yellow	589nm (585nm ~ 593nm)	700mA	2.65V	33 lm/W	750mA	85lm (80lm ~ 90lm)	25°C	120°	Surface Mount	SMD	0.138" L x 0.138" W (3.50mm x 3.50mm)	0.088" (2.23mm)
	ELSH-F71G1-0LPNM-CG1G2 LED SHUEN GREEN 525NM SMD Everlight Electronics Co Ltd	3,709	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Tape & Reel (TR)	Active	Green	525nm (520nm ~ 530nm)	350mA	3.25V	66 lm/W	600mA	75lm (70lm ~ 80lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)
	ELSH-F71G1-0LPNM-CG2G3 LED SHUEN GREEN 530NM SMD Everlight Electronics Co Ltd	3,070	-	立即询价	规格书	SHUEN	1218 (3246 Metric)	Tape & Reel (TR)	Active	Green	530nm (525nm ~ 535nm)	350mA	3.25V	66 lm/W	600mA	75lm (70lm ~ 80lm)	25°C	120°	Surface Mount	SMD	0.120" L x 0.177" W (3.05mm x 4.50mm)	0.085" (2.15mm)

共 145 记录«上一页 1... 8 9 10 111213 14 15 下一页»
