LED 彩色照明

图片	型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	颜色	波长	电流 - 测试	电压 - 正向 (Vf)（典型值）	流明/瓦特 @ 电流 - 测试	电流 - 最大值	光通量 @ 电流/温度	测试温度	视角	安装类型	供应商设备封装	尺寸 / 尺寸	高度 - 安装后（最大值）
	LTPL-P011R LED LTPL RED 1 WATT SMD Lite-On Inc.	3,709	-	立即询价	规格书	LTPL	2-SMD, Gull Wing Exposed Pad	Tape & Reel (TR)	Obsolete	Red	-	350mA	-	-	1A	37lm (Typ)	-	120°	Surface Mount	SMD	0.315" Dia (8.00mm)	0.220" (5.60mm)

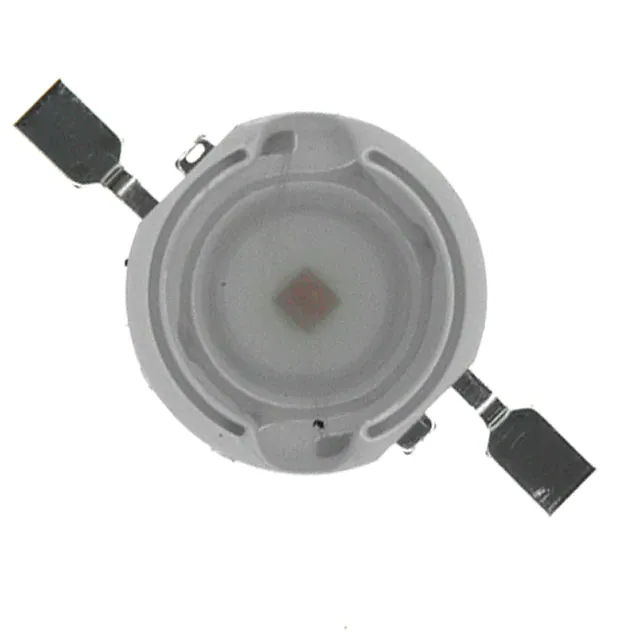

	LOPL-E001A LED LOPL AMBER 590NM SMD Lite-On Inc.	1,919	-	立即询价	规格书	LOPL	2-SMD, Gull Wing Exposed Pad	Tape & Reel (TR)	Obsolete	Amber	590nm (Typ)	350mA	2.57V	40 lm/W	350mA	36lm (Typ)	25°C	110°	Surface Mount	SMD	0.315" Dia (8.00mm)	0.087" (2.20mm)
	LOPL-E001R LED LOPL RED 625NM SMD Lite-On Inc.	4,052	-	立即询价	规格书	LOPL	2-SMD, Gull Wing Exposed Pad	Tape & Reel (TR)	Obsolete	Red	625nm (Typ)	350mA	2.57V	41 lm/W	350mA	37lm (Typ)	25°C	110°	Surface Mount	SMD	0.315" Dia (8.00mm)	0.087" (2.20mm)
	LOPL-E001H LED LOPL RED 617NM SMD Lite-On Inc.	3,095	-	立即询价	规格书	LOPL	2-SMD, Gull Wing Exposed Pad	Tape & Reel (TR)	Obsolete	Red	617nm (Typ)	350mA	2.57V	49 lm/W	350mA	44lm (Typ)	25°C	110°	Surface Mount	SMD	0.315" Dia (8.00mm)	0.087" (2.20mm)
	LTPL-P013B LED 3 WATT BLUE SMD Lite-On Inc.	3,179	-	立即询价	规格书	LTPL	2-SMD, Gull Wing Exposed Pad	Tape & Reel (TR)	Obsolete	Blue	-	350mA	-	-	1A	14lm (Typ)	-	110°	Surface Mount	-	-	-
	LOPL-E001C LED LOPL CYAN 505NM SMD Lite-On Inc.	3,178	-	立即询价	规格书	LOPL	2-SMD, Gull Wing Exposed Pad	Tape & Reel (TR)	Obsolete	Cyan	505nm (Typ)	350mA	3.7V	27 lm/W	350mA	35lm (Typ)	25°C	110°	Surface Mount	SMD	0.315" Dia (8.00mm)	0.087" (2.20mm)
	LTW-5630SP660 LED 5630 RED 642NM 4SMD Lite-On Inc.	3,988	-	立即询价	规格书	5630	4-SMD, Flat Lead Exposed Pad	Tape & Reel (TR)	Active	Red	642nm (Typ)	150mA	2.2V	24 lm/W	200mA	8lm (Typ)	-	120°	Surface Mount	4-SMD	0.209" L x 0.118" W (5.30mm x 3.00mm)	0.038" (0.97mm)
	LTW-5630SD630 LED 5630 630NM 4SMD Lite-On Inc.	1,374	-	立即询价	规格书	5630	4-SMD, Flat Lead Exposed Pad	Tape & Reel (TR)	Active	-	630nm (Typ)	150mA	2.4V	44 lm/W	-	16lm (Typ)	-	120°	Surface Mount	4-SMD	0.209" L x 0.118" W (5.30mm x 3.00mm)	0.038" (0.97mm)
	LTW-5630SD590 LED 5630 590NM 4SMD Lite-On Inc.	1,908	-	立即询价	规格书	5630	4-SMD, Flat Lead Exposed Pad	Tape & Reel (TR)	Active	-	590nm (Typ)	150mA	2.5V	69 lm/W	-	26lm (Typ)	-	120°	Surface Mount	4-SMD	0.209" L x 0.118" W (5.30mm x 3.00mm)	0.038" (0.97mm)
	LTW-5630SP750 LED 5630 RED 4SMD Lite-On Inc.	4,418	-	立即询价	规格书	5630	4-SMD, Flat Lead Exposed Pad	Tape & Reel (TR)	Active	Red	-	150mA	2V	-	200mA	85mW (75mW ~ 121mW)	-	120°	Surface Mount	4-SMD	0.209" L x 0.118" W (5.30mm x 3.00mm)	0.038" (0.97mm)

共 20 记录«上一页 12下一页»
