LED 彩色照明

图片	型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	颜色	波长	电流 - 测试	电压 - 正向 (Vf)（典型值）	流明/瓦特 @ 电流 - 测试	电流 - 最大值	光通量 @ 电流/温度	测试温度	视角	安装类型	供应商设备封装	尺寸 / 尺寸	高度 - 安装后（最大值）

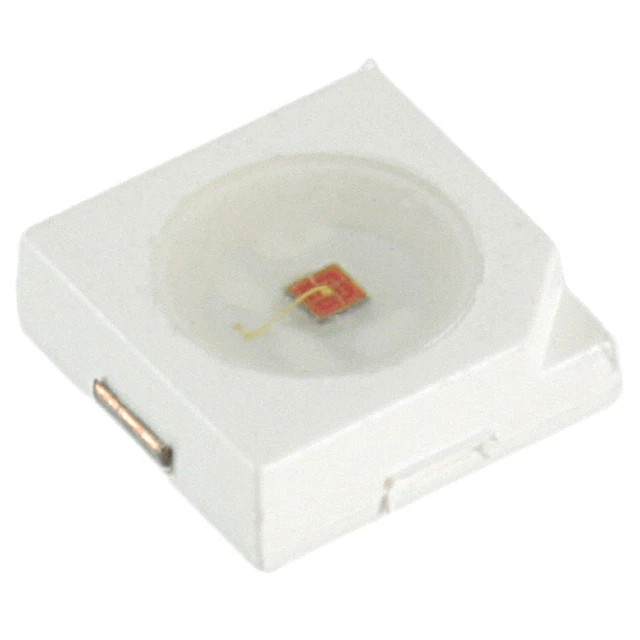

	VLMY51Z1AA-GS08 LED YELLOW 590NM 2PLCC Vishay Semiconductor Opto Division	880	-	立即询价	-	-	1414 (3535 Metric)	Tape & Reel (TR)	Obsolete	Yellow	590nm (585nm ~ 594nm)	140mA	2.2V	65 lm/W	200mA	20lm (Typ)	25°C	120°	Surface Mount	2-PLCC	0.138" L x 0.138" W (3.50mm x 3.50mm)	0.055" (1.40mm)
	VLMK71ABAD-GS08 LED LITTLE STAR AMBER 615NM SMD Vishay Semiconductor Opto Division	4,219	-	立即询价	-	Little Star®	2424 (6060 Metric)	Tape & Reel (TR)	Obsolete	Amber	615nm (610nm ~ 620nm)	400mA	2.5V	39 lm/W	400mA	39lm (26lm ~ 52lm)	25°C	120°	Surface Mount	SMD	0.236" L x 0.236" W (6.00mm x 6.00mm)	0.059" (1.50mm)

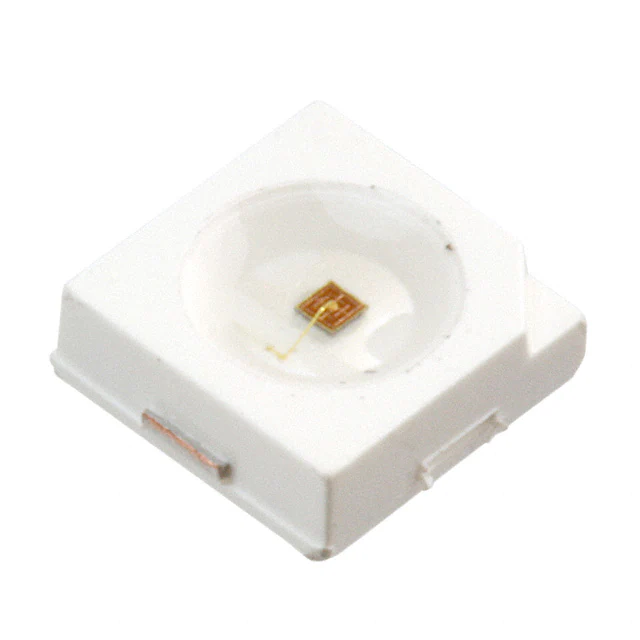

	VLMK51Z1AA-GS08 LED AMBER 616NM 2SMD Vishay Semiconductor Opto Division	3,910	-	立即询价	-	-	2-SMD, J-Lead	Cut Tape (CT)	Obsolete	Amber	616nm (610nm ~ 621nm)	140mA	2.2V	65 lm/W	200mA	20lm (Typ)	25°C	120°	Surface Mount	2-PLCC	0.138" L x 0.138" W (3.50mm x 3.50mm)	0.055" (1.40mm)

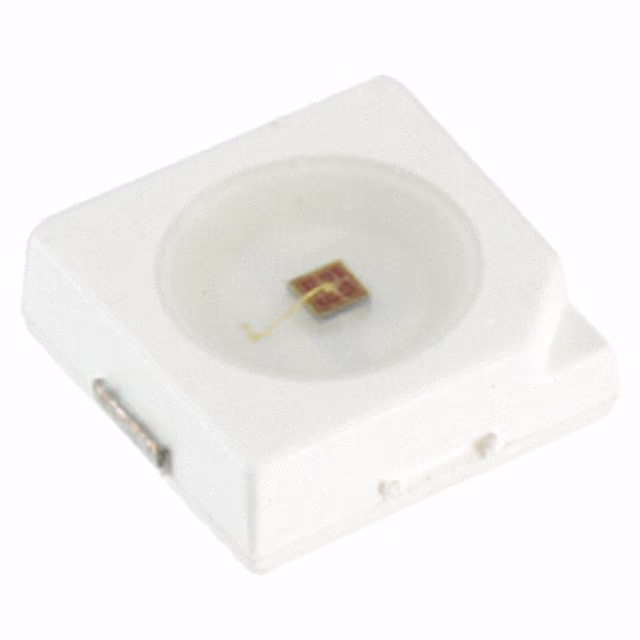

	VLMR51Z1AA-GS08 LED MINI PWR RED 2PLCC Vishay Semiconductor Opto Division	4,887	-	立即询价	-	-	1414 (3535 Metric)	Cut Tape (CT)	Obsolete	Red	625nm (620nm ~ 630nm)	140mA	2.2V	65 lm/W	200mA	20lm (Typ)	25°C	120°	Surface Mount	2-PLCC	0.138" L x 0.138" W (3.50mm x 3.50mm)	0.055" (1.40mm)
	VLMY71AAAC-GS08 SMD LED LITTLE STAR YELLOW Vishay Semiconductor Opto Division	1,559	-	立即询价	-	Little Star®	2424 (6060 Metric)	Cut Tape (CT)	Obsolete	Yellow	591nm (585nm ~ 597nm)	400mA	2.5V	30 lm/W	400mA	30lm (21lm ~ 39lm)	25°C	120°	Surface Mount	SMD	0.236" L x 0.236" W (6.00mm x 6.00mm)	0.059" (1.50mm)
	1.030.023.078 LED BLUE SMD PLCC2-E3 Vishay Semiconductor Opto Division	1,240	-	立即询价	-	-	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-
	8928B50056 LED BLUE SMD PLCC2-E3 Vishay Semiconductor Opto Division	4,001	-	立即询价	-	-	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-
	790438-70 POWER LED MINI YELLOW SMD Vishay Semiconductor Opto Division	2,972	-	立即询价	-	*	-	Tape & Reel (TR)	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-
