LED 彩色照明

型号	库存	价格	数量	规格书	系列	封装/外壳	包装	产品状态	颜色	波长	电流 - 测试	电压 - 正向 (Vf)（典型值）	流明/瓦特 @ 电流 - 测试	电流 - 最大值	光通量 @ 电流/温度	测试温度	视角	安装类型	供应商设备封装	尺寸 / 尺寸	高度 - 安装后（最大值）
XTEARY-02-0000-000000R06 XLAMP XT-E LIGHT EMITTING DIODE Cree LED	3,530	-	立即询价	规格书	XLamp® XT-E	1414 (3535 Metric)	Bulk	Active	Blue	463nm	350mA	2.8V	-	1.5A	638mW (625mW ~ 650mW)	85°C	130°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.095" (2.41mm)
XTEARY-02-0000-000000R05 XLAMP XT-E LIGHT EMITTING DIODE Cree LED	1,750	-	立即询价	规格书	XLamp® XT-E	1414 (3535 Metric)	Bulk	Active	Blue	458nm	350mA	2.8V	-	1.5A	638mW (625mW ~ 650mW)	85°C	130°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.095" (2.41mm)
XTEARY-02-0000-000000R08 XLAMP XT-E LIGHT EMITTING DIODE Cree LED	1,162	-	立即询价	规格书	XLamp® XT-E	1414 (3535 Metric)	Bulk	Active	Blue	460nm	350mA	2.8V	-	1.5A	638mW (625mW ~ 650mW)	85°C	130°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.095" (2.41mm)
XTEARY-02-0000-000000R04 XLAMP XT-E LIGHT EMITTING DIODE Cree LED	3,562	-	立即询价	规格书	XLamp® XT-E	1414 (3535 Metric)	Bulk	Active	Blue	453nm	350mA	2.8V	-	1.5A	638mW (625mW ~ 650mW)	85°C	130°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.095" (2.41mm)

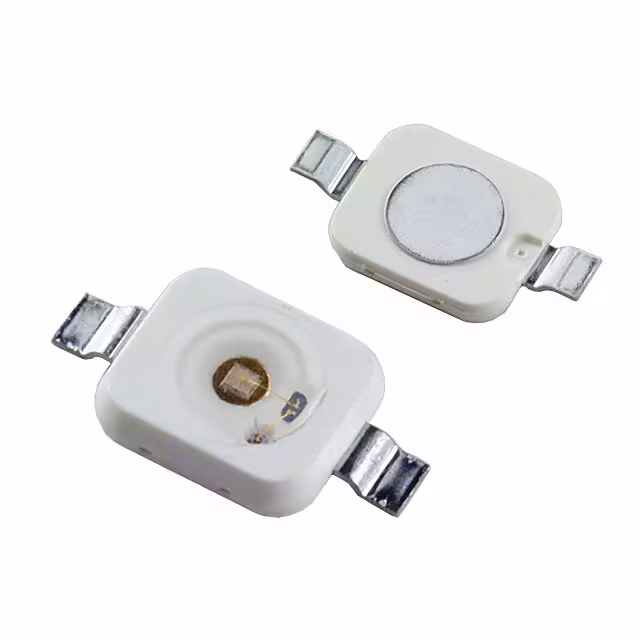

LB W5SG-DYEZ-35-Z LED GOLDEN DRAGON BLUE 470NM SMD ams-OSRAM USA INC.	1,322	-	立即询价	规格书	Golden DRAGON®	2-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	Blue	470nm (464nm ~ 476nm)	350mA	3.8V	6 lm/W	500mA	8lm (5lm ~ 11lm)	25°C	120°	Surface Mount	SMD	0.276" L x 0.236" W (7.00mm x 6.00mm)	0.079" (2.00mm)
XPEBFR-L1-0000-00A01 XLAMP XP-E LIGHT EMITTING DIODE Cree LED	2,923	-	立即询价	规格书	XLamp® XP-E2	1414 (3535 Metric)	Tape & Reel (TR)	Active	Red	-	350mA	1.85V	-	1.5A	-	25°C	140°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.094" (2.39mm)
XPEBLU-L1-0000-00601 XLAMP XP-E LIGHT EMITTING DIODE Cree LED	1,652	-	立即询价	规格书	XLamp® XP-E	1414 (3535 Metric)	Tape & Reel (TR)	Active	Blue	475nm	350mA	2.95V	62 lm/W	1A	65lm (62lm ~ 67lm)	25°C	130°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.084" (2.13mm)
QBHP684-RGBBU LED RGB 630NM/520NM/460NM 1414 QT Brightek (QTB)	2,490	-	立即询价	规格书	High Power	1414 (3535 Metric)	Tape & Reel (TR)	Active	Red, Green, Blue (RGB)	630nm Red, 520nm Green, 460nm Blue	350mA Red, 350mA Green, 350mA Blue	2.4V Red, 3.2V Green, 3.2V Blue	42 lm/W Red, 67 lm/W Green, 13 lm/W Blue	350mA Red, 350mA Green, 350mA Blue	35lm Red, 75lm Green, 15lm Blue	25°C	120°	Surface Mount	1414	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.085" (2.15mm)
XPEAMB-L1-R250-00201 LED XLAMP XPE AMB 590NM SMD Cree LED	2,494	-	立即询价	规格书	XLamp® XP-E	1414 (3535 Metric)	Tape & Reel (TR)	Active	Amber	590nm (585nm ~ 595nm)	350mA	2.1V	58 lm/W	500mA	43lm (40lm ~ 46lm)	25°C	130°	Surface Mount	SMD	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.084" (2.13mm)
XPEBBL-L1-R250-00303 LED XLAMP XPE2 BLUE SMD Cree LED	4,001	-	立即询价	规格书	XLamp® XP-E2	1414 (3535 Metric)	Tape & Reel (TR)	Active	Blue	-	350mA	3.1V	45 lm/W	1A	49lm (46lm ~ 52lm)	25°C	135°	Surface Mount	SMD	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.094" (2.39mm)
XEGAPM-H2-0000-000-000000V3003 XLAMP XEG PC MINT LED Cree LED	3,525	-	立即询价	-	XLamp® XE-G	2-SMD, No Lead	Tape & Reel (TR)	Active	Mint	-	1A	3.05V	141 lm/W	3A	430lm (420lm ~ 440lm)	85°C	125°	Surface Mount	2-SMD	0.081" L x 0.063" W (2.05mm x 1.60mm)	0.044" (1.13mm)
XEGABL-H2-0000-000-000000R2006 XLAMP XEG BLUE LED Cree LED	4,622	-	立即询价	-	XLamp® XE-G	2-SMD, No Lead	Tape & Reel (TR)	Active	Blue	475nm (465nm ~ 485nm)	1A	3.05V	39 lm/W	3A	118lm (114lm ~ 122lm)	85°C	125°	Surface Mount	2-SMD	0.081" L x 0.063" W (2.05mm x 1.60mm)	0.044" (1.13mm)
XEGAPM-H2-0000-000-000000V3002 XLAMP XEG PC MINT LED Cree LED	3,533	-	立即询价	-	XLamp® XE-G	2-SMD, No Lead	Tape & Reel (TR)	Active	Mint	-	1A	3.05V	141 lm/W	3A	430lm (420lm ~ 440lm)	85°C	125°	Surface Mount	2-SMD	0.081" L x 0.063" W (2.05mm x 1.60mm)	0.044" (1.13mm)
XEGAPL-H2-0000-000-000000V5002 XLAMP XEG PC LIME LED Cree LED	2,802	-	立即询价	-	XLamp® XE-G	2-SMD, No Lead	Tape & Reel (TR)	Active	Lime	-	1A	3.05V	154 lm/W	3A	470lm (460lm ~ 480lm)	85°C	125°	Surface Mount	2-SMD	0.081" L x 0.063" W (2.05mm x 1.60mm)	0.044" (1.13mm)
XEGAPL-H2-0000-000-000000V4003 XLAMP XEG PC LIME LED Cree LED	2,410	-	立即询价	-	XLamp® XE-G	2-SMD, No Lead	Tape & Reel (TR)	Active	Lime	-	1A	3.05V	148 lm/W	3A	450lm (440lm ~ 460lm)	85°C	125°	Surface Mount	2-SMD	0.081" L x 0.063" W (2.05mm x 1.60mm)	0.044" (1.13mm)
XEGACY-H2-0000-000-000000T3003 XLAMP XEG CYAN LED Cree LED	2,646	-	立即询价	-	XLamp® XE-G	2-SMD, No Lead	Tape & Reel (TR)	Active	Cyan	500nm (490nm ~ 510nm)	1A	3.05V	75 lm/W	3A	230lm (220lm ~ 240lm)	85°C	140°	Surface Mount	2-SMD	0.081" L x 0.063" W (2.05mm x 1.60mm)	0.044" (1.13mm)
GR CSHPM1.23-JUKQ-1-0-350-R18 LED OSLON SSL150 RED 626NM SMD ams-OSRAM USA INC.	1,001	-	立即询价	规格书	OSLON® SSL 150	1212 (3030 Metric)	Tape & Reel (TR)	Active	Red	626nm (620nm ~ 632nm)	350mA	2.1V	101 lm/W	1A	74lm (66lm ~ 82lm)	25°C	150°	Surface Mount	SMD	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.091" (2.31mm)
ELSW-R21E1-0EPNM-AD3D8 LED SHWO DEEP RED 660NM 3535 Everlight Electronics Co Ltd	4,068	-	立即询价	规格书	SHWO	1414 (3535 Metric)	Tape & Reel (TR)	Active	Red	660nm (645nm ~ 675nm)	350mA	2.35V	-	700mA	-	-	-	Surface Mount	3535	0.138" L x 0.138" W (3.50mm x 3.50mm)	0.086" (2.18mm)
XPEAMB-L1-R250-00Z03 LED XLAMP XPE AMB 593NM SMD Cree LED	4,338	-	立即询价	规格书	XLamp® XP-E	1414 (3535 Metric)	Tape & Reel (TR)	Active	Amber	593nm (590nm ~ 595nm)	350mA	2.1V	52 lm/W	500mA	38lm (35lm ~ 40lm)	25°C	130°	Surface Mount	SMD	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.084" (2.13mm)
XPERED-L1-R250-00201 LED XLAMP XPE RED SMD Cree LED	4,487	-	立即询价	规格书	XLamp® XP-E	1414 (3535 Metric)	Tape & Reel (TR)	Active	Red	-	350mA	2.1V	59 lm/W	700mA	43lm (40lm ~ 46lm)	25°C	130°	Surface Mount	SMD	0.136" L x 0.136" W (3.45mm x 3.45mm)	0.084" (2.13mm)

共 5115 记录«上一页 1... 153 154 155 156157158 159 160...256 下一页»
