购物车LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPB1-24F01-4080-00LED LINEAR MODULE, PERFORMANCE, New Energy |
2,599 |
|
规格书 |
- | Tray | Active | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 1244lm (Typ) | 200mA | 50°C | 33.5V | 179 lm/W | 300mA | 80 | - | - | 279.50mm L x 22.00mm W | 6.00mm | - | Flat |
|

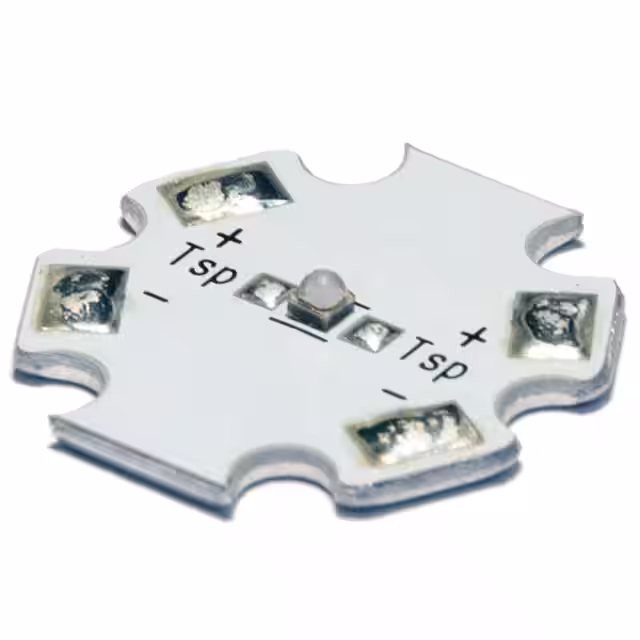

XQEROY-00-0000-000000Q01-SB01LED MOD XLAMP BLUE STARBOARD New Energy |
3,061 |
|
规格书 |
XLamp® XQ-E Horticulture | Tray | Active | LED Module | Blue | - | 458nm (450nm ~ 465nm) | Starboard | 613mW (600mW ~ 625mW) | 350mA | 25°C | 3.1V | - | 1A | - | 125° | - | - | - | - | Domed |
|
XPEFAR-L1-0000-00601-SB01LED MOD XLAMP RED STARBOARD New Energy |
2,814 |
|
规格书 |
XLamp® XP-E | Tray | Obsolete | LED Module | Red | - | 730nm (720nm ~ 740nm) | Starboard | - | 350mA | 25°C | 1.9V | - | 1A | - | 130° | - | 19.89mm Dia | - | - | Domed |
|
XHP50A-0S-01-0D0HH227GLED MOD XHP50A WARM WHT SQ 2700K New Energy |
3,485 |
|
规格书 |
XHP50A | Tray | Not For New Designs | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 900lm (Typ) | 700mA | 85°C | 11.5V | 112 lm/W | 1.5A | 80 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
|
XHP50A-0S-01-0D0BH430ELED MOD XHP50A WARM WHT SQ 3000K New Energy |
3,163 |
|
规格书 |
XHP50A | Tray | Not For New Designs | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 970lm (Typ) | 700mA | 85°C | 11.5V | 121 lm/W | 1.5A | 70 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
|
XHP50A-0S-01-0D0HH430GLED MOD XHP50 WHT SQUARE New Energy |
4,357 |
|
规格书 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Square | - | 700mA | 85°C | - | - | - | 80 | - | - | - | - | - | Domed |
|
|
XHP50A-0S-01-0D0UF427GLED MOD XHP50 SQUARE New Energy |
3,298 |
|
规格书 |
XHP50 | Tray | Not For New Designs | LED Module | - | - | - | Square | - | 700mA | 85°C | - | - | - | 90 | - | - | - | - | - | Domed |
|
LSS1-01C22-3070-00LED MOD XHP50.2 WM WHT SQ 3000K New Energy |
3,407 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 3000K 5-Step MacAdam Ellipse | - | Square | 1040lm (Typ) | 700mA | 85°C | 11.2V | 132 lm/W | 1.5A | 70 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
|
LSS1-01C22-2780-00LED MOD XHP50.2 WM WHT SQ 2700K New Energy |
1,721 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 900lm (Typ) | 700mA | 85°C | 11.2V | 115 lm/W | 1.5A | 80 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
|
|
LSS1-01C22-2790-00LED MOD XHP50.2 WM WHT SQ 2700K New Energy |
1,384 |
|
规格书 |
XHP50.2 | Tray | Active | LED Module | White, Warm | 2700K | - | Square | - | 700mA | 85°C | - | - | - | 90 | - | - | 36.83mm L x 36.83mm W | - | - | Domed |
