购物车LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW T5LWF2.CM-FB9-50AS4-1-20-T02-XXLED COB DURIS |
1,870 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF2.CM-FB9-50BS4-1-20-T02-XXLED COB DURIS |
1,559 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF2.CM-FC3-27BS4-1-20-T02-XXLED COB DURIS |
1,187 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF2.CM-FC3-27CS4-1-20-T02-XXLED COB DURIS |
4,260 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF2.CM-FC3-27AS4-1-20-T01-XXLED COB DURIS |
4,737 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BXRE-50C0800-D-74LED COB V8 COOL WHT SQUARE 5000K |
1,908 |
|
规格书 |
Gen 7 V8 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 1066lm (Typ) | 350mA | 25°C | 17.3V | 176 lm/W | 700mA | 70 | 120° | - | 12.50mm L x 12.50mm W | 1.70mm | 8.10mm Dia | Flat |
|
|
BXRC-40G2000-D-74LED COB VERO 13 WHT RND 4000K |
2,330 |
|
规格书 |
Gen 7 Vero® 13 Array | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 4-Step MacAdam Ellipse | - | Round | 2260lm (Typ) | 500mA | 25°C | 31.8V | 142 lm/W | 1A | 90 | 120° | - | 36.20mm Dia | 1.90mm | 13.20mm Dia | Flat |
|
|
BXRC-17E10K0-D-73LED COB VERO 29 WM WHT RND 1750K |
4,927 |
|
规格书 |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 1750K 3-Step MacAdam Ellipse | - | Round | 6994lm (Typ) | 2.1A | 25°C | 37.6V | 89 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
BXRC-17E4000-D-73LED COB VERO 18 WM WHT RND 1750K |
4,643 |
|
规格书 |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 1750K 3-Step MacAdam Ellipse | - | Round | 2710lm (Typ) | 1.05A | 25°C | 29V | 89 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-25E4000-D-73LED COB VERO 18 WM WHT RND 2500K |
3,438 |
|
规格书 |
Gen 7 Vero® 18 Array | Tray | Active | Chip On Board (COB) | White, Warm | 2500K 3-Step MacAdam Ellipse | - | Round | 4360lm (Typ) | 1.05A | 25°C | 29V | 143 lm/W | 2.1A | 80 | 120° | - | 36.20mm Dia | 1.90mm | 18.40mm Dia | Flat |
|
|
BXRC-50E10K0-D-74LED COB VERO 29 WHT RND 5000K |
2,258 |
|
规格书 |
Gen 7 Vero® 29 Array | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Round | 13501lm (Typ) | 2.1A | 25°C | 37.6V | 171 lm/W | 4.2A | 80 | 120° | - | 49.20mm Dia | 1.90mm | 29.20mm Dia | Flat |
|
|
ASLT76H10GC00H8LED TUBE L4 2FT T8 IPS DAY WHITE |
3,977 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

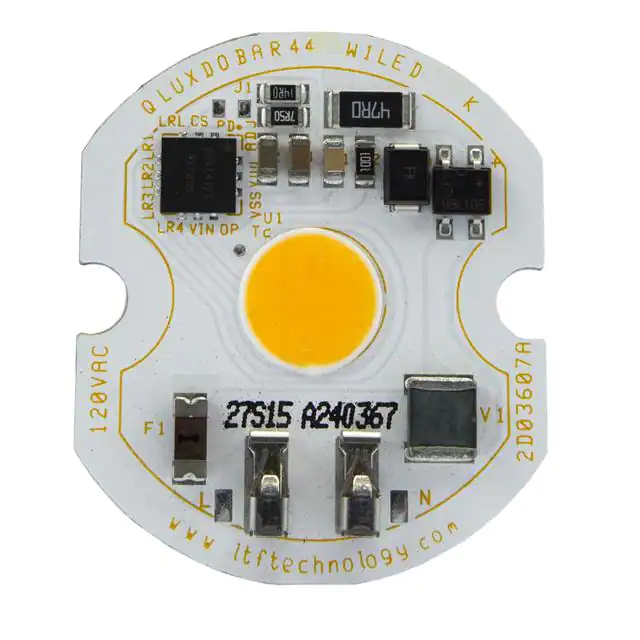

QLUXDOBAR4410W1LD930LED ENG QLUX WHT ROUND 3000K |
4,114 |
|
规格书 |
QLUX | Bag | Active | LED Engine | White, Neutral | 3000K 3-Step MacAdam Ellipse | - | Round | 870lm | - | 25°C | - | - | - | 91 | - | Dimming | 44.00mm L x 38.00mm W | 3.40mm | - | Flat |
|

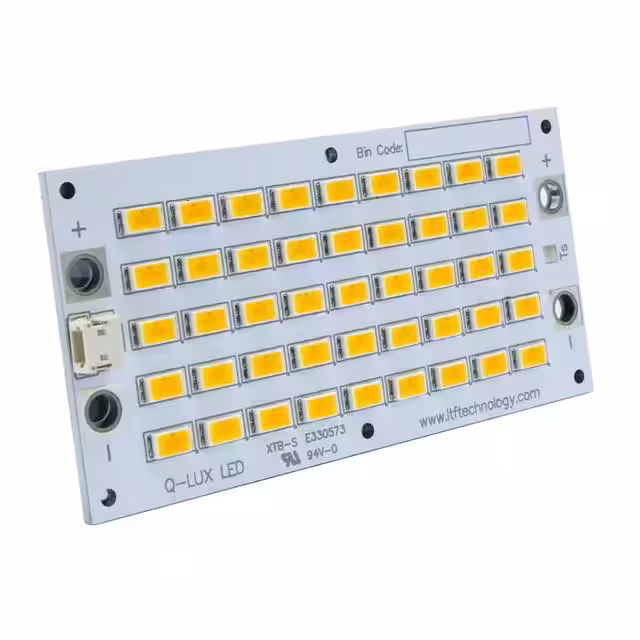

QLUX10W320C33V27K90CLED ENG QLUX NEUT WHT RECT 2700K |
3,638 |
|
规格书 |
QLUX | Bag | Active | LED Engine | White, Neutral | 2700K 3-Step MacAdam Ellipse | - | Rectangle | 822lm | 320mA | 25°C | 33V | 83 lm/W | 320mA | 90 | 160° | With Connector | 83.90mm L x 41.95mm W | 3.50mm | - | Flat |
|

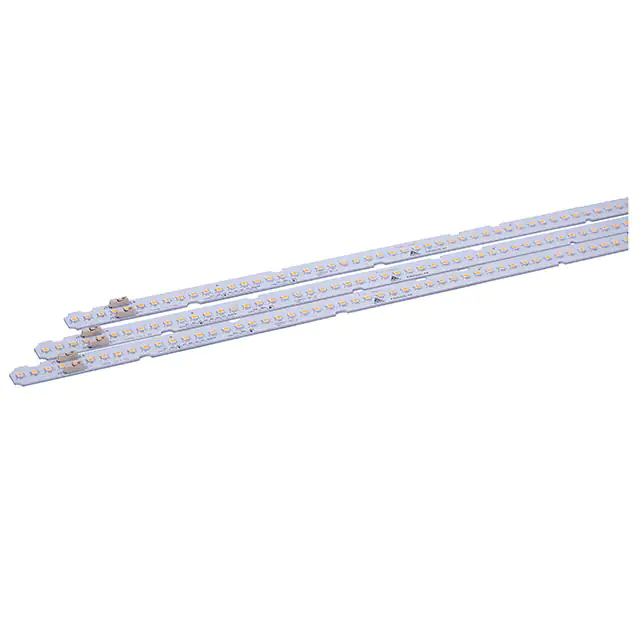

12523-A-509-2835LED MOD WH LNR LGT STRIP 5000K |
4,851 |
|
规格书 |
- | Box | Active | LED Module | White, Cool | 5000K | - | Linear Light Strip | 5438lm (Typ) | 1.2A | - | 32.45V | 140 lm/W | 1.8A | 90 | - | - | 1118.40mm L x 20.00mm W | - | - | Flat |
|
12524-A-308-2835LED MOD WM WHT LNR STRP 3000K |
4,338 |
|
规格书 |
- | Box | Active | LED Module | White, Warm | 3000K | - | Linear Light Strip | 2983lm (Typ) | 600mA | - | 32V | 153 lm/W | 900mA | 80 | - | - | 559.20mm L x 20.00mm W | - | - | Flat |
|
CFT-90-CG-L11-G100LED MOD GREEN RECT SMD |
2,139 |
|
规格书 |
- | Tray | Discontinued at Digi-Key | LED Module | Green | - | 579nm | Rectangle | - | 22.5A | 40°C | 3.8V | - | 22.5A | - | 120° | - | 42.00mm L x 28.00mm W | 5.70mm | 3.00mm L x 3.00mm W | Flat |
|
|
GW T5LWF2.CM-FB9-50AS4-1-20-T01-XXLED COB DURIS SMD |
4,679 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF2.CM-FB5-27S5-1-20-T02-XXLED COB DURIS SMD |
3,982 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GW T5LWF2.CM-FB5-27S5-1-20-T01-XXLED COB DURIS SMD |
4,873 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
