BOM
购物车键盘开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84BLN-BB2-014ANSWITCH KEYPAD 16KEY 0.01A 24V |
3,028 |
|
规格书 |
84BL | Bulk | Active | Snap Dome | 16 | 4 x 4 | Illuminated - Red | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ F | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | - |
|
|
86JC2-202SWITCH KEYPAD 20KEY 0.01A 24V |
3,861 |
|
规格书 |
86 | Bulk | Active | Snap Dome | 20 | 4 x 5 | Non-Illuminated | Partially Interchangeable | Polymer, Transparent Key Cap | Common Bus | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|
|
3K041203SWITCH KEYPAD 4KEY 0.05A 24V |
1,219 |
|
规格书 |
3000 | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Arrows | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|
|
3K120203SWITCH KEYPAD 12KEY 0.05A 24V |
1,514 |
|
规格书 |
3000 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|
|
3K12T203SWITCH KEYPAD 12KEY 0.05A 24V |
2,915 |
|
规格书 |
3000 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|
|
9004A103SWITCH KEYPAD 4KEY 0.05A 24V |
1,031 |
|
规格书 |
900 | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Black | Panel Mount, Front or Rear | Pin Header | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | 3.3 VDC | 0.05A @ 24VDC | - |
|

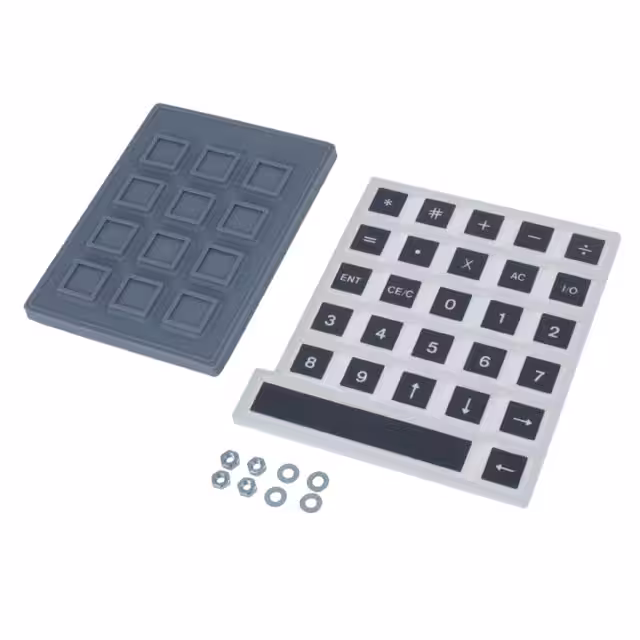

9012A103SWITCH KEYPAD 12KEY 0.05A 24V |
3,413 |
|
规格书 |
900 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Black | Panel Mount, Front or Rear | Pin Header | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | 3.3 VDC | 0.05A @ 24VDC | - |
|
|
9016A103SWITCH KEYPAD 16KEY 0.05A 24V |
4,969 |
|
规格书 |
900 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Black | Panel Mount, Front or Rear | Pin Header | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | 3.3 VDC | 0.05A @ 24VDC | - |
|
|
ICO10203SWITCH KEYPAD 1KEY NON-ILLUM |
1,610 |
|
规格书 |
AXS-COM | - | Obsolete | Conductive Rubber | 1 | 1 x 1 | Non-Illuminated | Fixed | Metal | Non-Standard (Controller Included) | Blank Buttons | - | Silver | Panel Mount, Front | Screw Terminal | - | - | IP54 - Dust Protected, Water Resistant | - | - | Anti-Vandal |
|
|
ICO40203SWITCH KEYPAD 4KEY NON-ILLUM |
4,143 |
|
规格书 |
AXS-COM | - | Obsolete | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Metal | Non-Standard (Controller Included) | Blank Buttons | - | Silver | Panel Mount, Front | Screw Terminal | - | - | IP54 - Dust Protected, Water Resistant | - | - | Anti-Vandal |
|
EZ08-222013SWITCH KEYPAD 8KEY NON-ILLUM |
2,885 |
|
规格书 |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 8 | - | Non-Illuminated | Fixed | Polymer | USB | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|
|
1041.3500SWITCH KEYPAD 12KEY 0.05A 30V |
4,996 |
|
规格书 |
- | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front | Cable with Connector | Rectangular - 100.50mm x 67.20mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 30VAC/DC | Anti-Vandal |
|
|
1041.6500SWITCH KEYPAD 12KEY 0.05A 30V |
3,327 |
|
规格书 |
- | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Rear | Cable with Connector | Rectangular - 100.50mm x 67.20mm | -25°C ~ 85°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 30VAC/DC | Anti-Vandal |
|
|
EZ05-21001-3SWITCH KEYPAD 5KEY NON-ILLUM |
4,646 |
|
规格书 |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 5 | - | Non-Illuminated | Fixed | Polymer | Matrix | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|
|
EZ08-21001-3SWITCH KEYPAD 8KEY NON-ILLUM |
4,251 |
|
规格书 |
NAV-Pad™ | Bulk | Obsolete | Conductive Rubber | 8 | - | Non-Illuminated | Fixed | Polymer | Matrix | Arrows, Help Button | Black, White | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 109.50mm x 95.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | - | Anti-Vandal |
|
84R-AB2-112-PDSWITCH KEYPAD 12KEY 0.01A 24V |
2,316 |
|
规格书 |
84R | Bulk | Obsolete | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.57mm x 64.52mm | -55°C ~ 85°C | - | - | 0.01A @ 24VDC | Anti-Vandal |
|
84R-BB2-014-PDSWITCH KEYPAD 16KEY 0.01A 24V |
1,829 |
|
规格书 |
84R | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format, A ~ F | Black | Silver | Panel Mount, Front or Rear | Pin Header | Square - 83.57mm² | -55°C ~ 85°C | - | - | 0.01A @ 24VDC | Anti-Vandal |
|
|
86YY3212B-517SWITCH KEYPAD 12 KEY CUSTOM |
1,197 |
|
规格书 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1068.1012.1110001SWITCH KEYPAD 12KEY 0.02A 50V |
3,499 |
|
规格书 |
- | Bulk | Obsolete | Piezo | 12 | 3 x 4 | Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | - | -25°C ~ 85°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | 0.02A @ 50VDC | Anti-Vandal |
|
|
1068.1016.1110001SWITCH KEYPAD 16KEY 0.02A 50V |
4,902 |
|
规格书 |
- | Bulk | Obsolete | Piezo | 16 | 4 x 4 | Illuminated | Fixed | Metal | Matrix | Telephone Format, Function Keys | Black | Silver | Panel Mount, Front or Rear | Pin Header | - | -25°C ~ 85°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | 0.02A @ 50VDC | Anti-Vandal |
