购物车键盘开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

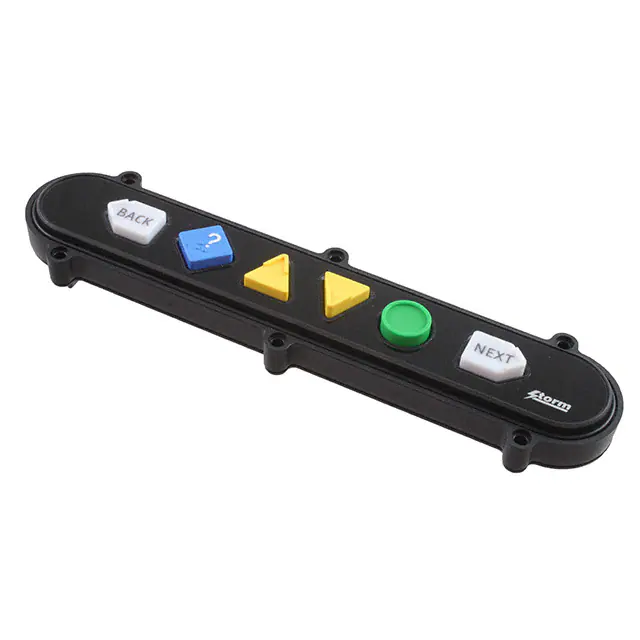

EZB6-630023SWITCH KEYPAD 6KEY ILLUM |
4,863 |
|
规格书 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | 6 x 1 | Illuminated | Fixed | Polymer | USB | Arrows, Help Button, Select | Black, White | Multiple | Panel Mount, Rear | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
09-0015.1111SWITCH KEYPAD 6KEY 0.03A 32V |
3,653 |
|
规格书 |
09 | Tray | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
|
09-0A22.1111SWITCH KEYPAD 6KEY 0.03A 32V |
2,051 |
|
规格书 |
09 | Box | Active | Snap Dome | 6 | 3 x 2 | Illuminated - White | Fixed | - | Matrix | - | White | Black | Panel Mount, Front | Cable with Connector | Rectangular - 107.10mm x 68.80mm | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.03A @ 32VDC | - |
|
26052SWITCH KEYPAD 16KEY NON-ILLUM |
4,525 |
|
规格书 |
- | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ F | White | Black | Panel Mount, Front | Pin Header | - | - | - | - | - | - |
|
COM-08653SWITCH KEYPAD 12KEY NON-ILLUM |
3,174 |
|
规格书 |
- | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front | Card Edge/Solder Pad | - | - | - | - | - | - |
|
|
82-101-72SWITCH KEYPAD 1KEY 0.1A 5V |
3,910 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (DPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-101-74SWITCH KEYPAD 1KEY 0.1A 5V |
1,028 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (4PST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-150-16SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
4,413 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (DPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-150-211SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
1,983 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Black | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-150-15SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
3,673 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Fixed | Polymer | Independent Switches (DPST) | No Legend | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-150-213SWITCH KEYPAD 1KEY ILLUM 0.1A 5V |
3,418 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 1 | 1 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (DPST) | Customizable (Sold Separate) | - | Black | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-201-41SWITCH KEYPAD 2KEY 0.1A 5V |
1,071 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 2 | 2 x 1 | Non-Illuminated | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-350-12SWITCH KEYPAD 3KEY ILLUM 0.1A 5V |
2,100 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-350-9SWITCH KEYPAD 3KEY ILLUM 0.1A 5V |
2,289 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (DPST) | Customizable (Sold Separate) | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
84SN-CC3-000SWITCH KEYPAD 1KEY 0.01A 24V |
4,146 |
|
规格书 |
84S | Bulk | Active | Snap Dome | 1 | 1 x 1 | Non-Illuminated | - | Rubber Overlay | Independent Switches (SPST) | No Buttons | - | - | Panel Mount, Front | Stud | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
82-350-10SWITCH KEYPAD 3KEY ILLUM 0.1A 5V |
4,864 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Illuminated - Light Source Not Included | Fixed | Polymer | Independent Switches (SPST) | No Legend | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
82-350-41SWITCH KEYPAD 3KEY ILLUM 0.1A 5V |
2,881 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Illuminated - Light Source Not Included | Interchangeable | Transparent Key Cap | Independent Switches (SPST) | Customizable (Sold Separate) | - | Black | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
84SN-CC3-001SWITCH KEYPAD 1KEY 0.01A 24V |
2,814 |
|
规格书 |
84S | Bulk | Active | Snap Dome | 1 | 1 x 1 | Non-Illuminated | Fixed | Rubber Overlay | Independent Switches (SPST) | No Legend | - | White | Panel Mount, Front | Stud | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
82-350-8SWITCH KEYPAD 3KEY ILLUM 0.1A 5V |
4,427 |
|
规格书 |
82 | Bulk | Active | Keyswitch | 3 | 3 x 1 | Illuminated - Light Source Not Included | Fixed | Polymer | Independent Switches (DPST) | No Legend | - | Gray | Through Hole | PC Pin | - | -40°C ~ 80°C | - | - | 0.1A @ 5VDC | - |
|
|
84SN-CC3-001-NSWITCH KEYPAD 1KEY 0.01A 24V |
4,692 |
|
规格书 |
84S | Bulk | Active | Snap Dome | 1 | 1 x 1 | Non-Illuminated | Fixed | Rubber Overlay | Independent Switches (SPST) | No Legend | - | White | Panel Mount, Front | Stud | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
