| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 矩阵（列 x 行） | 照明 | 标记类型 | 按键类型 | 输出类型 | 标记 | 标记颜色 | 按键颜色 | 安装类型 | 端接样式 | 面板开孔尺寸 | 工作温度 | 防护等级 | 照明电压（额定值） | 触点额定值 @ 电压 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7207-0410203SWITCH KEYPAD 4KEY 0.05A 24V |
199 |
|
规格书 |
720 GFX | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Included) | Black | Multiple | Panel Mount, Front or Rear | Pin Header | - | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | - |
|
96AB2-102-FSWITCH KEYPAD 12KEY 0.005A 12V |
265 |
|
规格书 |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
70040203SWITCH KEYPAD 4KEY 0.05A 24V |
216 |
|
规格书 |
700 | Bulk | Active | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Black Housing |
|
96BB2-006-RSWITCH KEYPAD 16KEY 0.005A 12V |
266 |
|
规格书 |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 63.50mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
70120203SWITCH KEYPAD 12KEY 0.05A 24V |
321 |
|
规格书 |
700 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Black Housing |
|
88BB2SWITCH KEYPAD 16KEY 0.01A 24V |
164 |
|
规格书 |
88 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
88AB2-172SWITCH KEYPAD 12KEY 0.01A 24V |
198 |
|
规格书 |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | Telephone Format | White | Blue | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
88AB2-152SWITCH KEYPAD 12KEY 0.01A 24V |
110 |
|
规格书 |
88 | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Polyester Overlay | Matrix | Telephone Format | Blue, White | Blue, White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
GS160203SWITCH KEYPAD 16KEY 0.05A 24V |
1,793 |
|
规格书 |
GFX | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|
70160203SWITCH KEYPAD 16KEY 0.05A 24V |
549 |
|
规格书 |
700 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Black Housing |
|
88JB2SWITCH KEYPAD 20KEY 0.01A 24V |
108 |
|
规格书 |
88 | Bulk | Active | Snap Dome | 20 | 5 x 4 | Non-Illuminated | Interchangeable | Polyester Overlay | Matrix | Customizable (Sold Separate) | - | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP42 | - | 0.01A @ 24VDC | - |
|
PLX12T203SWITCH KEYPAD 12KEY 0.05A 24V |
3,128 |
|
规格书 |
1000 PLX | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

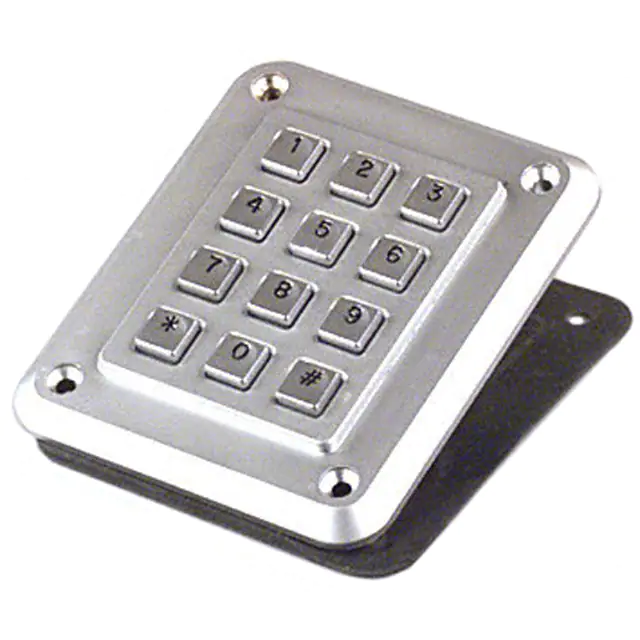

1K12T103SWITCH KEYPAD 12KEY 0.05A 24V |
128 |
|
规格书 |
1000 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

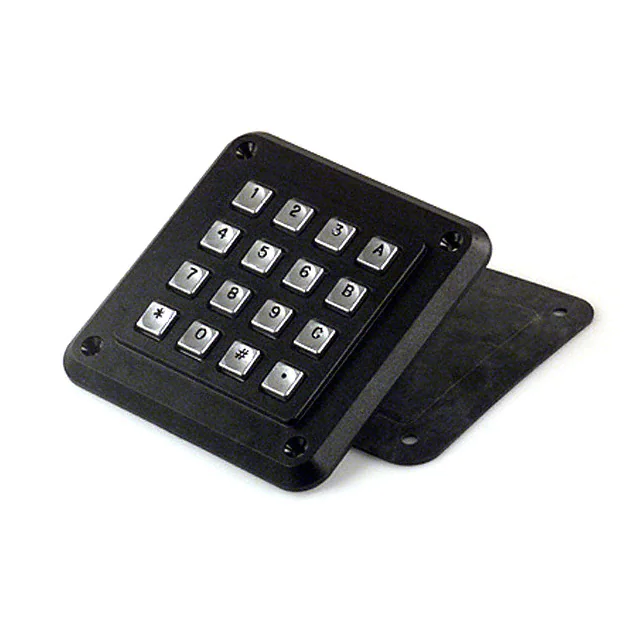

PLX16T203SWITCH KEYPAD 16KEY 0.05A 24V |
2,277 |
|
规格书 |
1000 PLX | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format, A ~ C | Black | Silver | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -40°C ~ 100°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

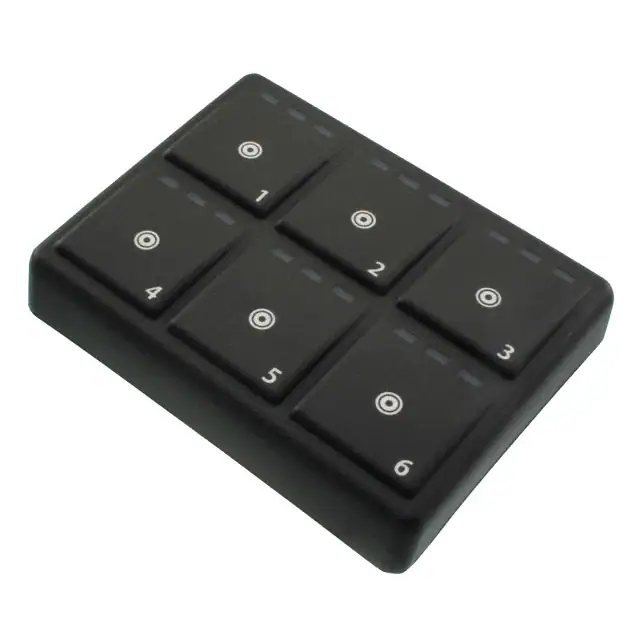

3K206-2RC3AGSWITCH KEYPAD 6KEY ILLUM |
760 |
|
规格书 |
3K | Bulk | Active | Snap Dome | 6 | 3 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|

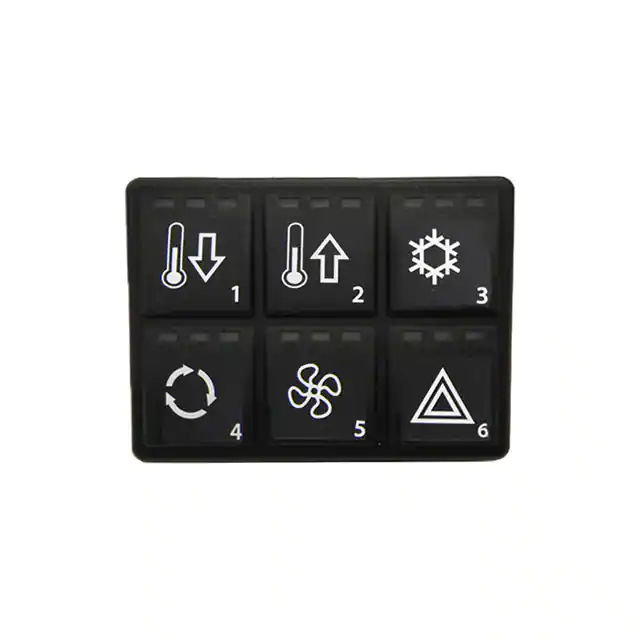

3K206-2RN3AGSWITCH KEYPAD 6KEY ILLUM |
403 |
|
规格书 |
3K | Bulk | Active | Snap Dome | 6 | 3 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Targets | White | Black | Panel Mount, Front | Connector | - | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|

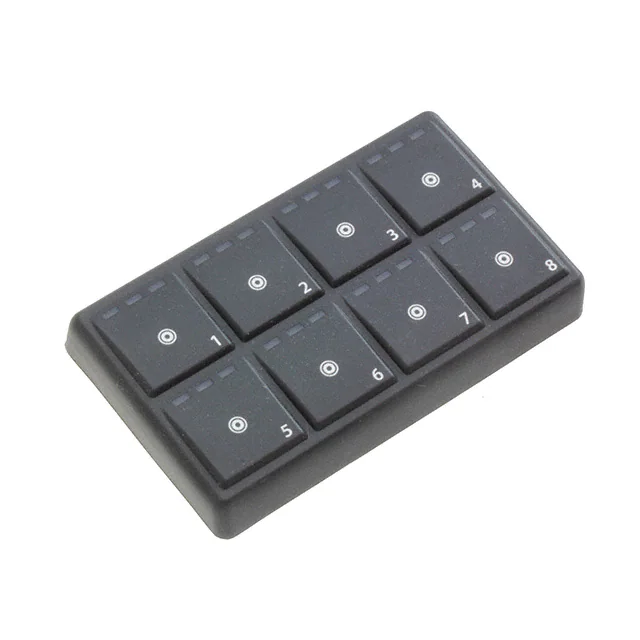

3K208-2RN3AGSWITCH KEYPAD 8KEY ILLUM |
324 |
|
规格书 |
3K | Bulk | Active | Snap Dome | 8 | 4 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|

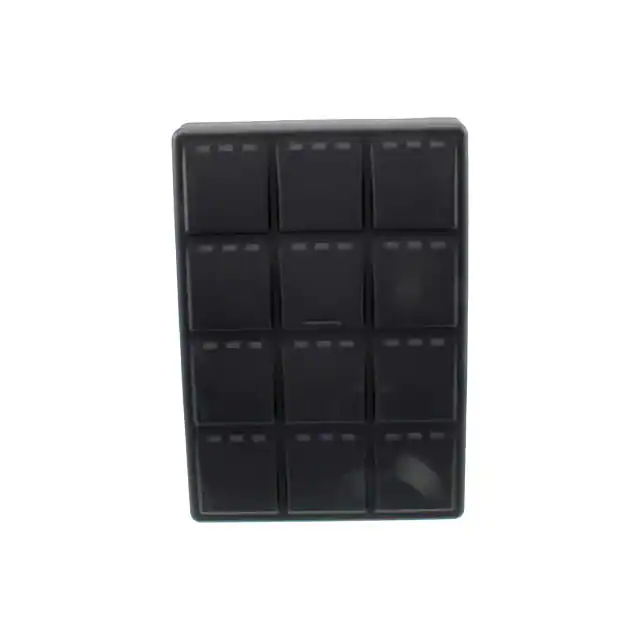

3K012-4RC3AGSWITCH KEYPAD 12KEY ILLUM |
597 |
|
规格书 |
3K | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | - | Black | Panel Mount, Front | Connector | Circular - 46.99mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|
3K012-4RN3AGSWITCH KEYPAD 12KEY ILLUM |
1,429 |
|
规格书 |
3K | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Blank Buttons | - | Black | Panel Mount, Front | Connector | Circular - 46.99mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
|
|
3K208-2RC3AGSWITCH KEYPAD 8KEY ILLUM |
304 |
|
规格书 |
3K | Bulk | Active | Snap Dome | 8 | 4 x 2 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 40.64mm Dia | -40°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | - | - |
