购物车隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACNW3190-300EOPTOISO 5KV 1CH GATE DVR 8SMD Broadcom Limited |
716 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | CSA, IEC/EN/DIN, UR |
|
HCPL-315J-500EOPTOISO 5KV 2CH GATE DVR 16SO Broadcom Limited |
2,941 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width), 12 Leads | Tape & Reel (TR) | Active | Optical Coupling | 2 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 500mA, 500mA | 600mA | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
|
ACPL-339J-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
3,659 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 25kV/µs | 300ns, 300ns | 150ns | - | 1A, 1A | 5.5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

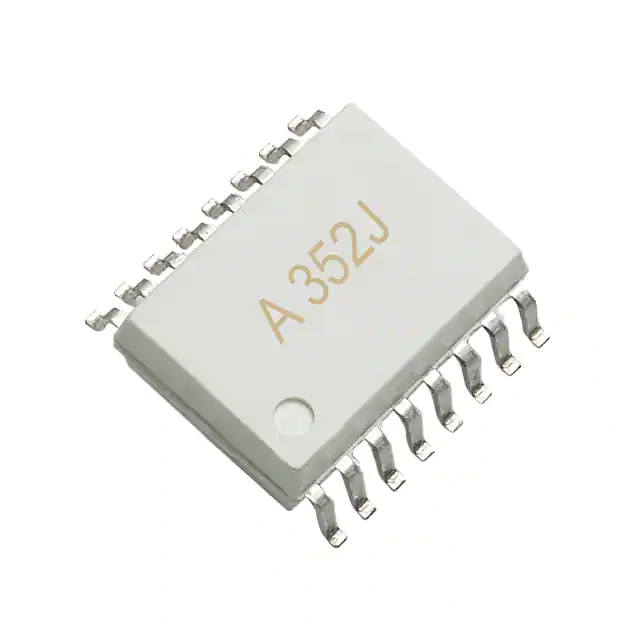

ACPL-352J-000EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
3,476 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 150ns, 150ns | 50ns | 37ns, 30ns | 4.5A, 4.5A | 5A | 1.55V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|
HCPL-5120OPTOISO 1.5KV 1CH GATE DVR 8DIP Broadcom Limited |
276 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 1500VDC | 10kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP | - |
|
|
HCPL-T251-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
3,355 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 1µs, 1µs | - | - | -, 100mA | 400mA | 1.6V | 20 mA | 15V ~ 30V | - | - | -20°C ~ 85°C | Through Hole | 8-DIP | CSA, UR |
|
|
HCPL-3020-500EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
294 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-J314-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
5,588 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
|
HCPL-3140-500EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
5,407 |
|
规格书 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
|
HCPL-3140-300EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
4,366 |
|
规格书 |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
