购物车隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
ACNU-4803-000EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
2,000 |
|
规格书 |
- | 8-SOIC (0.378", 9.60mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 120ns, 150ns | 90ns | 6ns, 6ns | 125mA, 125mA | - | 1.5V | 20 mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched | CSA, UL |
|
ACPL-3130-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
2,699 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, UR |
|
ACPL-P346-060EOPTOISO 3.75KV 1CH GATE DRVR 6SO Broadcom Limited |
1,592 |
|
规格书 |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-P346-560EOPTOISO 3.75KV 1CH GATE DRVR 6SO Broadcom Limited |
2,000 |
|
规格书 |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 50kV/µs | 120ns, 120ns | 50ns | 8ns, 8ns | 2A, 2A | 2.5A | 1.55V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched | CSA, IEC/EN/DIN, UR |
|
|
ACPL-312U-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
1,688 |
|
规格书 |
R²Coupler™ | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
ACPL-312T-500EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
1,988 |
|
规格书 |
R²Coupler™ | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
|
ACFJ-3262-000EGATE DRIVE OPTOCOUPLER,IEC+LF Broadcom Limited |
1,395 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width), 18 Leads | Bulk | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 95ns, 95ns | 20ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 10V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 24-SO | CSA, IEC/EN, UL |
|
|
ACFJ-3262T-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
1,360 |
|
规格书 |
- | 24-SOIC (0.295", 7.50mm Width), 18 Leads | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 100kV/µs | 95ns, 95ns | 20ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 10V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | CSA, IEC/EN, UL |
|
ACPL-336J-500EOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
1,631 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 5000Vrms | 30kV/µs | 220ns, 250ns | 120ns | 80ns, 45ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 16-SO | CSA, IEC/EN/DIN, UR |
|

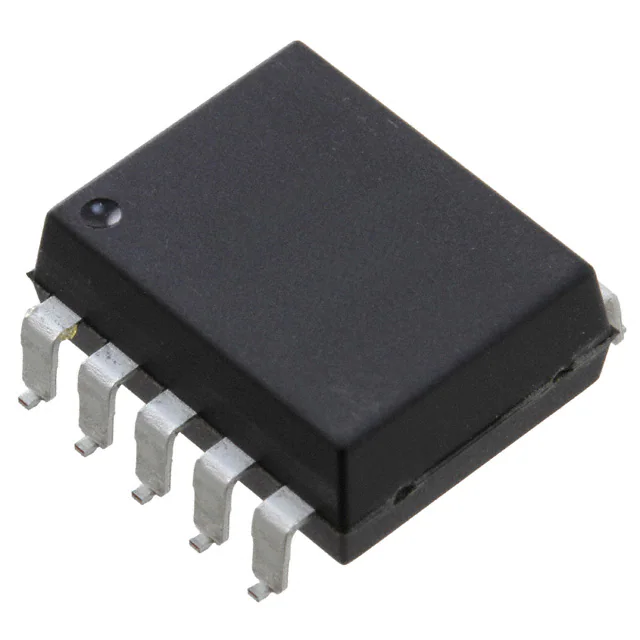

ACNV3130-500EOPTOISO 7.5KV 1CH GT DVR 10DIP Broadcom Limited |
1,500 |
|
规格书 |
- | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing | CSA, IEC/EN/DIN, UR |
