购物车隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8752AB-ISRDGTL ISO 2.5KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
907 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 2500Vrms | 20kV/µs | - | - | - | - | - | - | - | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
SI8261AAC-C-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
19,911 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 400mA, 600mA | 600mA | 2.8V (Max) | 30 mA | 6.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8261BBC-C-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
189,090 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 9.4V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|

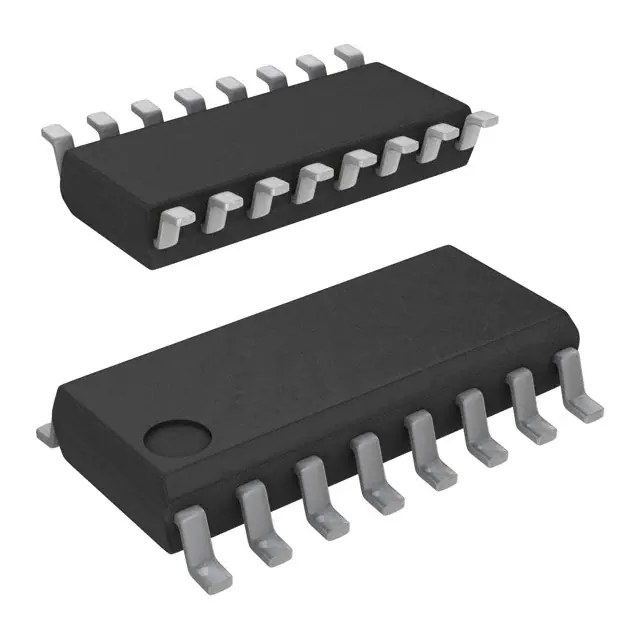

SI8274GB4D-IS1RDGTL ISO 2.5KV 2CH GT DVR 16SOIC Skyworks Solutions Inc. |
7,251 |
|
规格书 |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 2 | 2500Vrms | 200kV/µs | 105ns, 75ns | 47ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8271DB-ISRDGTL ISO 2.5KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
5,160 |
|
规格书 |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 9.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
SI8271AB-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
416 |
|
规格书 |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
SI8286CC-ISRDGT ISO 3.75KV 1CH GT DVR 16SOIC Skyworks Solutions Inc. |
5,565 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 13.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UL, VDE |
|
SI8261ABD-C-ISRDGTL ISO 5KV 1CH GT DVR 6SDIP GW Skyworks Solutions Inc. |
7,121 |
|
规格书 |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 400mA, 600mA | 600mA | 2.8V (Max) | 30 mA | 9.4V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 6-SDIP Gull Wing | CQC, CSA, UR, VDE |
|
|
SI8271GBD-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
16,706 |
|
规格书 |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 2500Vrms | 200kV/µs | 75ns, 75ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UL, VDE |
|
|
SI8271BB-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC Skyworks Solutions Inc. |
1,739 |
|
规格书 |
Si827x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 1 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 6.7V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
