购物车隔离器 - 栅极驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 电压 - 输出电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

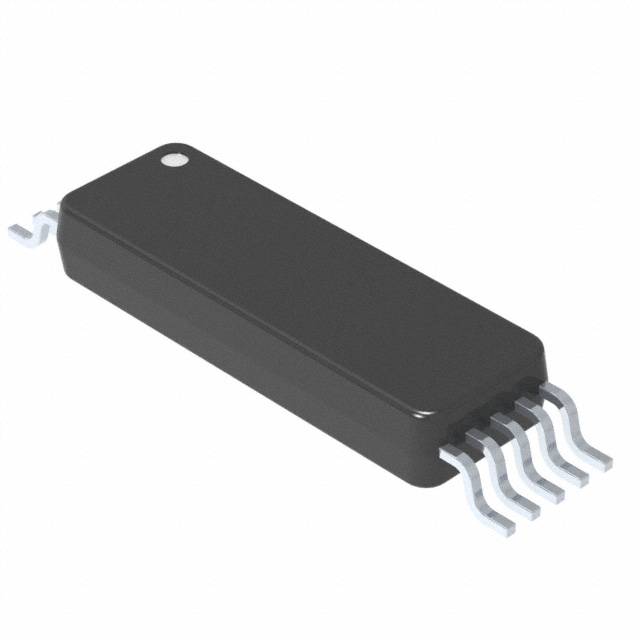

BM61M41RFV-CE2DGT ISO 3.75KV 1CH GT DVR 10SSOP Rohm Semiconductor |
1,365 |
|
规格书 |
- | 10-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3750Vrms | 100kV/µs | 65ns, 65ns | 60ns | 15ns, 15ns | 4A, 4A | - | - | - | 9V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP-BW | UL |
|
|
BM61S41RFV-CE2DGT ISO 3.75KV 1CH GT DVR 10SSOP Rohm Semiconductor |
16,169 |
|
规格书 |
- | 10-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 3750Vrms | 100kV/µs | 65ns, 65ns | 60ns | 15ns, 15ns | 4A, 4A | - | - | - | 16V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP-BW | UL |
|
|
BM61S40RFV-CE2DGTL ISO 2.5KV 1CH GT DVR 10SSOP Rohm Semiconductor |
2,843 |
|
规格书 |
- | 10-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 65ns, 65ns | 60ns | 15ns, 15ns | 4A, 4A | - | - | - | 16V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 10-SSOP-BW | UL |
|
BM60059FV-CE2DGTL ISO 2.5KV 1CH GT DVR 28SSOP Rohm Semiconductor |
1,364 |
|
规格书 |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Not For New Designs | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 450ns, 450ns | 400ns | - | 40µA, 160µA | 1A | - | - | 4.5V ~ 24V | - | - | -40°C ~ 125°C | Surface Mount | 28-SSOP-BW | UL |
|
|
BM61M22BFJ-CE2ISOLATION VOLTAGE 2500VRMS 1CH G Rohm Semiconductor |
2,321 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100kV/µs | 60ns, 60ns | 60ns | 15ns, 15ns | 2A, 2A | - | - | - | 9V ~ 24V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOP-J | UL |
|
|
BM6112FV-CE2DGT ISO 3.75KV 1CH GT DVR 28SSOP Rohm Semiconductor |
1,627 |
|
规格书 |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 150ns, 150ns | 30ns | 30ns, 30ns | - | - | - | - | 14V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 28-SSOP-BW | - |
|

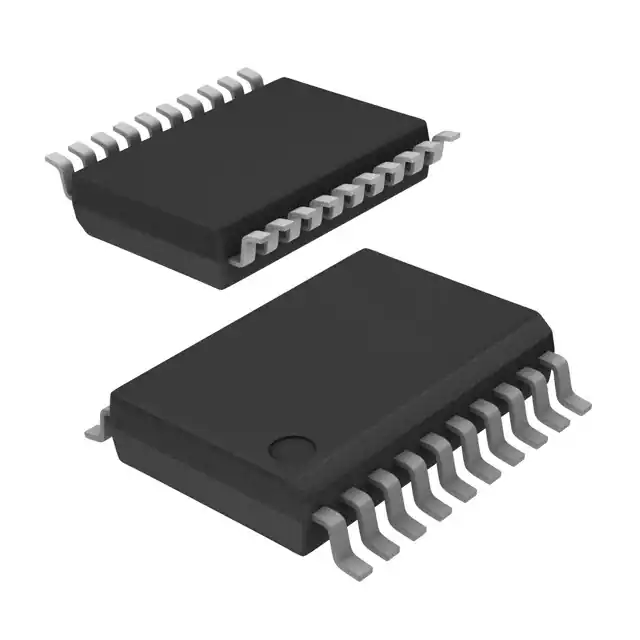

BM6104FV-CE2DGTL ISO 2.5KV 1CH GT DVR 20SSOP Rohm Semiconductor |
3,875 |
|
规格书 |
- | 20-SSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | 150ns, 150ns | - | 50ns, 50ns | - | 5A, 1A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SSOP-BW | UR |
|
|
BM60052FV-CE2DGTL ISO 2.5KV 1CH GT DVR 28SSOP Rohm Semiconductor |
1,954 |
|
规格书 |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | - | - | 50ns, 50ns | - | 5A | - | - | 10V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 28-SSOP-BW | UR |
|
|
BM60054FV-CE2DGTL ISO 2.5KV 1CH GT DVR 28SSOP Rohm Semiconductor |
2,622 |
|
规格书 |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 2500Vrms | 100kV/µs | - | - | 50ns, 50ns | - | 5A | - | - | 10V ~ 20V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 28-SSOP-BW | UR |
|
|
BM6101FV-CE2DGTL ISO 2.5KV 1CH GT DVR 20SSOP Rohm Semiconductor |
3,475 |
|
规格书 |
- | 20-SSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100V/µs | 350ns, 350ns | - | 50ns, 50ns | - | 5A, 1A | - | - | 14V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SSOP-B | UR |
