购物车联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

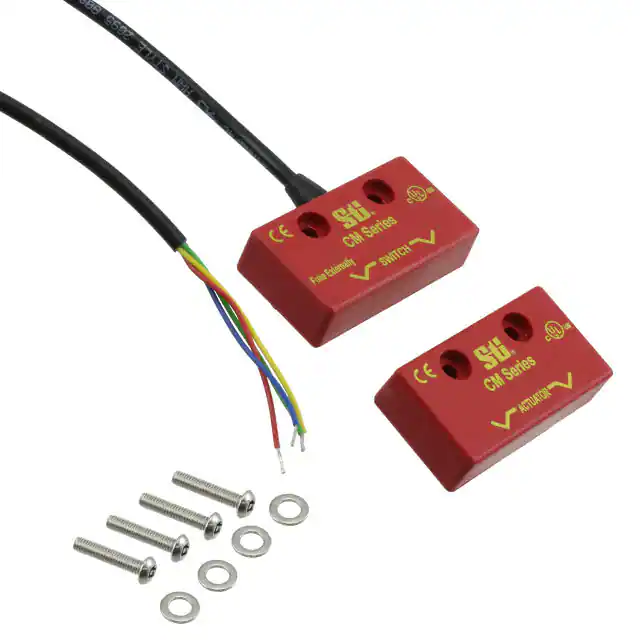

CM-S11PC5INTERLOCK MAGNETIC |
2,390 |
|
规格书 |
CM-STI | Bulk | Active | Magnetic | - | 500mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5 ~ 7mm | 8 ~ 12mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|
SI-RFST-UP8INTERLOCK SW RFID UNIQUE CODE |
1,337 |
|
规格书 |
SI-RF | Bag | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
|
SI-RFST-HP8INTERLOCK SWITCH RFID |
4,293 |
|
规格书 |
SI-RF | Bag | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
|
SI-RFPT-L2MINTERLOCK SWITCH RFID |
1,650 |
|
规格书 |
SI-RF | Box | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | Automatic Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
MA-15DP21C3INTERLOCK MAGNETIC 3PST |
4,629 |
|
规格书 |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 300mA (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-RFDT-UP8INTERLOCK SW RFID UNIQUE CODE |
3,177 |
|
规格书 |
SI-RF | Bag | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
|
SI-RFDL-HP8INTERLOCK SWITCH RFID |
4,055 |
|
规格书 |
SI-RF | Box | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Manual Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
XCSDMP700L01M12INTERLOCK MAGNETIC 3PST |
1,933 |
|
规格书 |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 100mA (DC) | 24VDC | - | - | Non-Contact | Connector (M12) | - | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

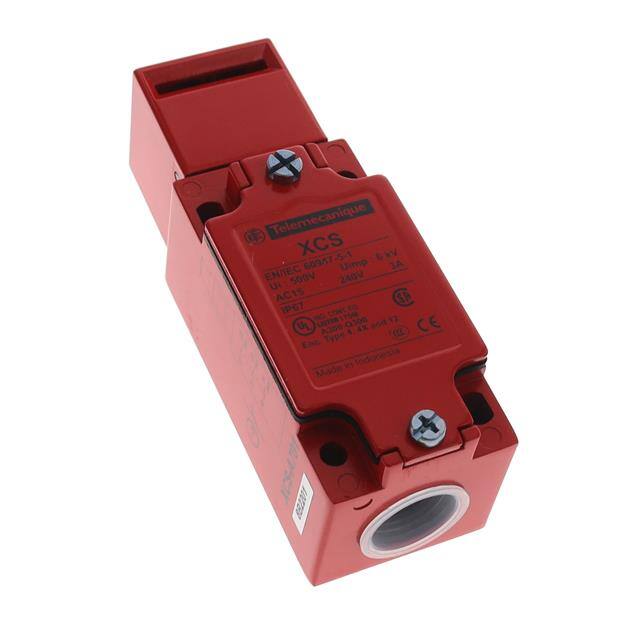

XCSA701INTERLOCK NON-LOCKING 3PST |
3,138 |
|
规格书 |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

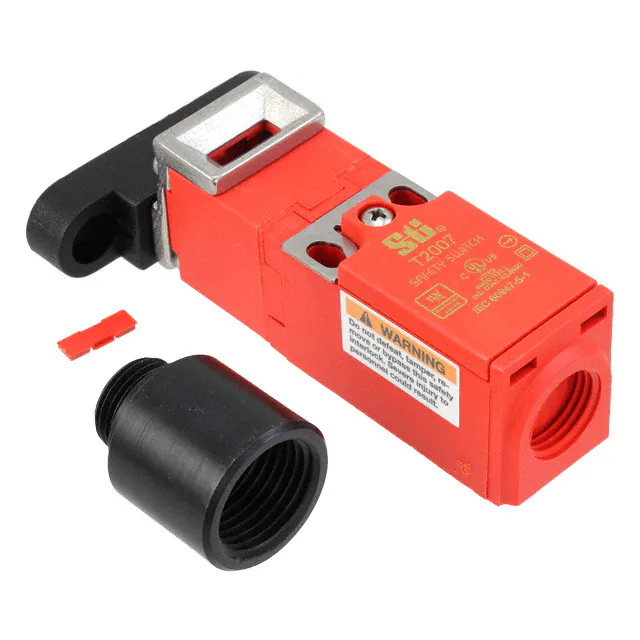

T2007-02F1INTERLOCK NON-LOCKING DPST |
1,384 |
|
规格书 |
T2007 | Bulk | Active | Non-Locking | DPST-NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
T2007-11F1INTERLOCK NON-LOCKING DPST |
1,254 |
|
规格书 |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
1202570004INTERLOCK MAGNETIC DPST |
4,889 |
|
规格书 |
120257 | Bulk | Active | Magnetic | DPST-NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | - | 4mm | 10mm | - | -25°C ~ 80°C | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | TUV, UL |
|

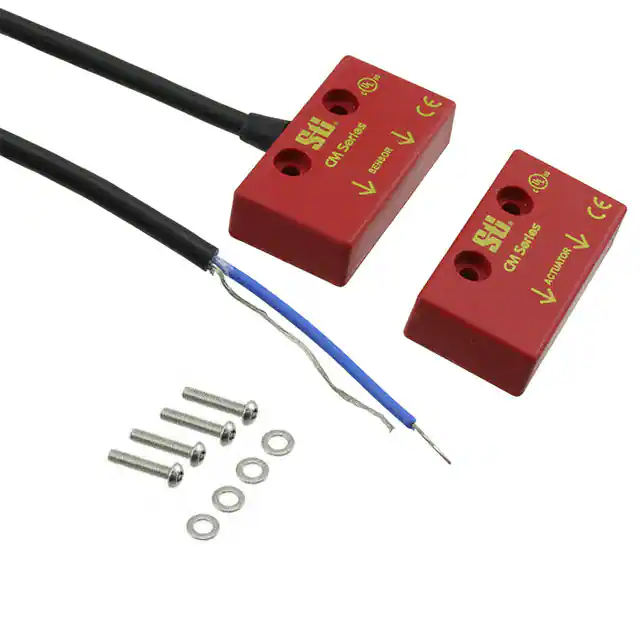

CM-S5PC10INTERLOCK MAGNETIC DPST |
3,025 |
|
规格书 |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 500mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 7mm | 10mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

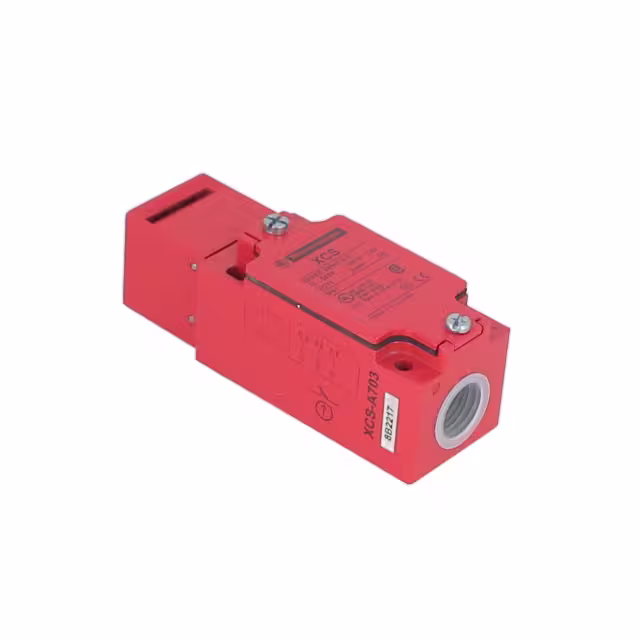

XCSA703INTERLOCK NON-LOCKING 3PST |
1,962 |
|
规格书 |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|

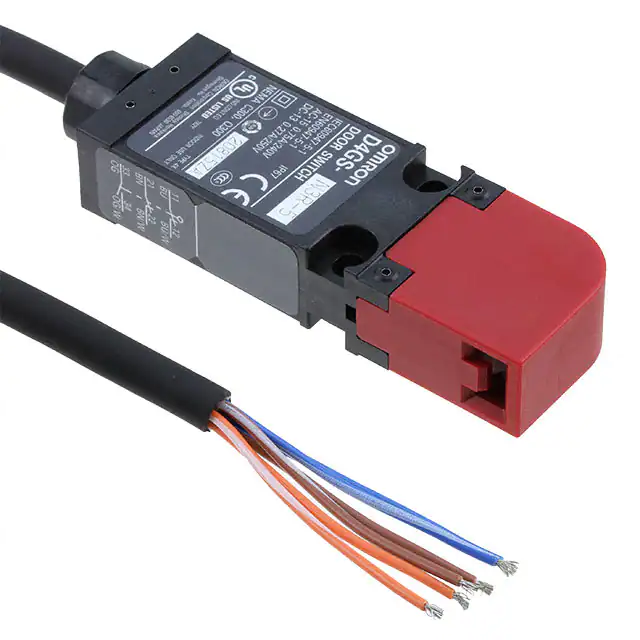

D4GS-N3R-5INTERLOCK NON-LOCKING 3PST |
2,033 |
|
规格书 |
D4GS-N | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
HS5L-VC44M-GINTERLOCK SOLENOID RELEASE DPST |
1,774 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
HS5L-VD7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
4,716 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Locking | DPST-NC x 2 | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-VF7Y4M-GINTERLOCK SOLENOID LOCKING 3PST |
3,892 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Locking | 3PST-NC + SPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-VB44M-GINTERLOCK SOLENOID RELEASE DPST |
1,549 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
|
|
HS5L-VB7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
3,551 |
|
规格书 |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | 24VDC | 143kgf | Panel Disconnect | Spring Terminal | - | - | - | M20 | -25°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, TUV, UL |
