购物车联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

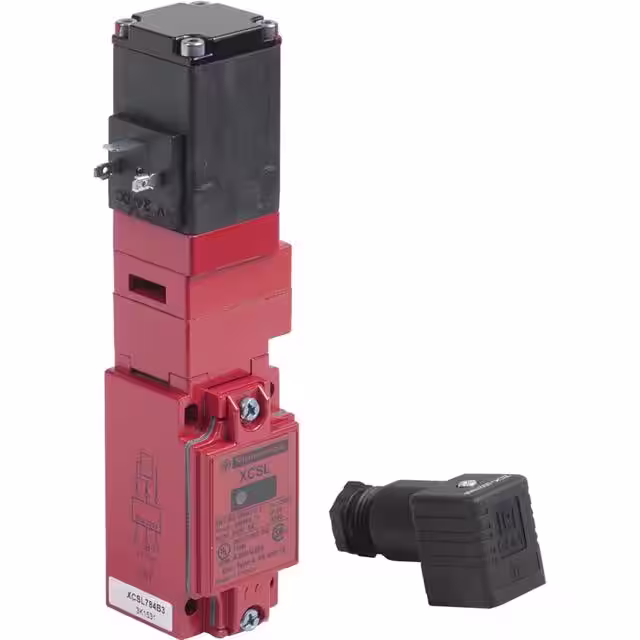

XCSL784B3INTERLOCK NON-LOCKING |
2,418 |
|
规格书 |
XCSL | Box | Active | Non-Locking | - | - | - | - | - | Panel Disconnect | Screw Terminal | - | - | - | - | - | - | - |
|
D41L2YDAN2INTERLOCK RFID SOLENOID RELEASE |
4,504 |
|
规格书 |
D41L | Box | Active | RFID, Solenoid Release | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
D41L1YDAN2INTERLOCK RFID SOLENOID RELEASE |
3,433 |
|
规格书 |
D41L | Box | Active | RFID, Solenoid Release | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
D41G2ZDAT1INTERLOCK RFID SOLENOID RELEASE |
2,651 |
|
规格书 |
D41G | Box | Active | RFID, Solenoid Release | - | 250mA (DC) | 24VDC | 24VDC | 204kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -10°C ~ 55°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
D40ML-P1-U-M12INTERLOCK RFID DPST |
1,958 |
|
规格书 |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 153kgf | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
D41G2YDGT1INTERLOCK RFID SOLENOID LOCKING |
4,881 |
|
规格书 |
D41G | Box | Active | RFID, Solenoid Locking | - | 250mA (DC) | 24VDC | 24VDC | 204kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -10°C ~ 55°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
D41L2ZDGEN2INTERLOCK RFID SOLENOID LOCKING |
4,838 |
|
规格书 |
D41L | Box | Active | RFID, Solenoid Locking | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
|
D41L2YDAEN2INTERLOCK RFID SOLENOID RELEASE |
2,336 |
|
规格书 |
D41L | Box | Active | RFID, Solenoid Release | - | 250mA (DC) | 24VDC | 24VDC | 117kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | 0°C ~ 60°C | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
|
D41G1YDAN2INTERLOCK RFID SOLENOID RELEASE |
1,315 |
|
规格书 |
D41G | Box | Active | RFID, Solenoid Release | - | 250mA (DC) | 24VDC | 24VDC | 204kgf | Panel Disconnect | Connector (M12) | Manual Override | - | - | - | -10°C ~ 55°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
SI-RF-A2INTERLOCK SWITCH RFID |
4,561 |
|
- |
SI-RF | Bulk | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | - | - | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
|
XCSMP70L2INTERLOCK KEY LOCKING 3PST |
3,061 |
|
规格书 |
XCSMP | Box | Active | Key Locking | 3PST-2NC/1NO | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, CUL, UL |
|
|
6025053INTERLOCK HINGE 3PST |
2,359 |
|
规格书 |
i10H | Bulk | Active | Hinge | 3PST-2NC/1NO | 3A (AC), 2A (DC) | 240VAC, 24VDC | - | - | Shaft | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
3SE52320RV40INTERLOCK SW,TOP&SIDE ENTRY,1NO+ |
1,616 |
|
规格书 |
SIRIUS | Box | Active | Non-Locking | DPST-NO/NC | 6A (AC), 3A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -25°C ~ 80°C | IP65 - Dust Tight, Water Resistant | CCC, CE, CSA, EAC, UKCA, UL |
|

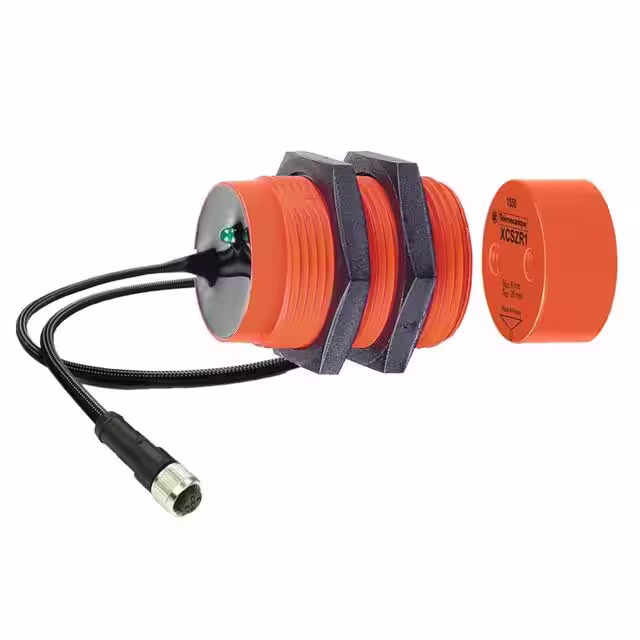

XCSDMR791L01M12INTERLOCK MAGNETIC DPST |
4,001 |
|
规格书 |
XCSDMR | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | - | Cable with Connector (M12) | - | 8mm | 20mm | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
XCSMP79L2INTERLOCK NON-LOCKING DPST |
2,156 |
|
规格书 |
XCSMP | Box | Active | Non-Locking | DPST-NC | 1.5A (AC), 550mA (DC) | 120VAC, 125VDC | - | 816gf | Panel Disconnect | Cable Leads | - | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, CUL, UL |
|
GKMA33INTERLOCK NON-LOCKING DPST |
3,212 |
|
规格书 |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
XCSPL753INTERLOCK NON-LOCKING DPST |
1,780 |
|
规格书 |
XCSPL | Box | Active | Non-Locking | DPST-NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
1086615MAGN SAFETY SENSOR |
1,432 |
|
规格书 |
RE1 | Bulk | Active | Magnetic | DPST-NO | 100mA (DC) | 30VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 7mm | 20mm | M12 | -30°C ~ 60°C | IP67 - Dust Tight, Waterproof | CE, cULus, EAC, TUV |
|
|
XCSPR553INTERLOCK NON-LOCKING DPST |
4,820 |
|
规格书 |
Telemecanique XCS | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Shaft | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | BG, CSA, UL |
|
|
3SE22430XXINTERLOCK SW,TOP & SIDE ENTRY,1N |
2,806 |
|
规格书 |
SIRIUS | Box | Active | Non-Locking | 3PST-2NC/1NO | 4A (AC/DC) | 230VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 x 1.5 | -30°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CSA, EAC, UL |
