购物车力传感器、称重传感器 - 工业级
| 图片 | 型号 | 库存 | 数量 | 规格书 | 封装/外壳 | 操作力 | 输出 | 传感器类型 | 精度 | 电压 - 电源 | 执行器类型 | 执行器样式/尺寸 | 包括内容 | 工作温度 | 补偿温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FX293X-040B-0100-LFORCE SENSOR |
2,295 |
|
- |
50.00kgf (110lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FSS010WNSBSENSOR FORCE SURF MOUNT 2.248LBS |
3,348 |
|
- |
0 ~ 10N | Analog, Ratiometric | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C | |
|
060-1432-04SENSOR FORCE LOAD CELL 250LBS |
3,656 |
|
- |
113.4kgf (250lbs) | Voltage | Load Cell | ±0.15% | 15°C ~ 71°C | 5V | Diaphragm | Stud, 1/4-28 UNF | Sensor | -54°C to 121°C | |
|
|
FX293X-040B-0050-LFORCE SENSOR |
1,712 |
|
- |
25.00kgf (55lbs) | 0.5 V ~ 4.5 V | Load Cell | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX292X-100B-0200-LCOMPACT COMPRESSION LOAD CELL |
3,477 |
|
- |
90.72kgf (200lbs) | Analog Voltage | Load Cell | - | 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 50°C | |
|
|
FC2211-0000-0025-LMID RANGE COMPRESSION SENSOR |
3,760 |
|
- |
11.34kgf (25lbs) | 100mV | Load Cell | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | Round, 6mm | Sensor | -40°C ~ 85°C | |
|
FSS1500NGRSENSOR FORCE UNCOMPENSATED 1.5KG |
2,514 |
|
- |
1.5kgf (3.3lbs) | Analog, Ratiometric | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C | |
|
FX292X-040B-0100-LFORCE SENSOR |
1,487 |
|
- |
50.00kgf (110lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
|
FX29K0-040B-0025-LFORCE SENSOR |
1,482 |
|
- |
12.50kgf (28lbs) | Digital | Load Cell | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FSS1500NSTSENSOR FORCE SURF MOUNT 3.3LBS |
3,840 |
|
- |
1.5kgf (3.3lbs) | 180mV | Resistive | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Sensor | -40°C ~ 85°C | |
|
|
FX292X-040B-0010-LFORCE SENSOR |
4,878 |
|
- |
5.00kgf (11lbs) | Analog Voltage | Load Cell | ±1% | 0°C ~ 50°C | 1V ~ 6V | Pushbutton | - | Sensor | 0°C ~ 85°C | |
|
FS01SENSOR FORCE SURF MOUNT 1.5LBS |
4,970 |
|
- |
0.68kgf (1.5lbs) | 1V | Resistive | - | 5°C ~ 50°C | 5V | Pushbutton | Round, 12.2mm | Sensor | 0°C ~ 70°C | |
|
|
DBBSM-10kg-003-0000-10kg Universal S-Beam Force Se |
3,716 |
|
- |
10.00kgf (22lbs) | 2.7mV | Load Cell | ±0.03% | 0°C ~ 70°C | 2V ~ 15V | S-Beam | Internal Thread, M8 x 1.25 | Sensor | -20°C ~ 80°C | |
|
|
DBBSM-2kg-003-0000-2kg Universal S-Beam Force Sen |
1,135 |
|
- |
2.00kgf (4lbs) | 2.7mV | Load Cell | ±0.03% | 0°C ~ 70°C | 2V ~ 15V | S-Beam | Internal Thread, M8 x 1.25 | Sensor | -20°C ~ 80°C | |
|

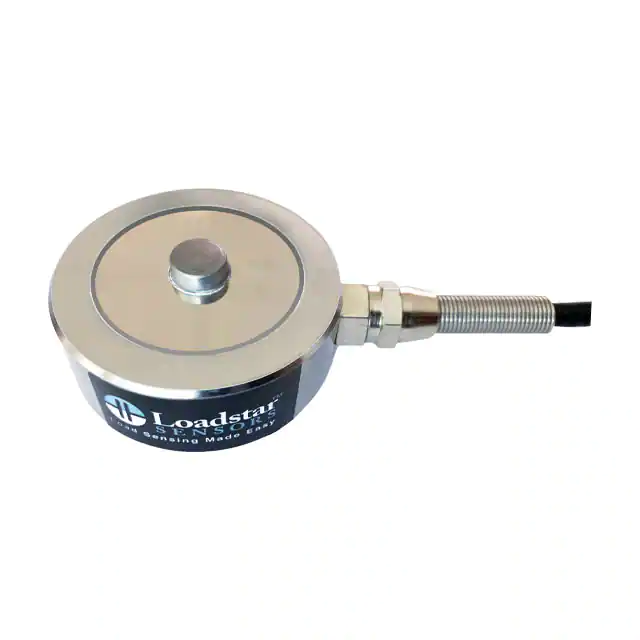

RSB2-25M-S25 KGF BUTTON LOAD CELL |
2,077 |
|
- |
25.00kgf (55lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Sensor | -20°C ~ 60°C | |
|
|
RSB2-250M-S250 KGF BUTTON LOAD CELL |
4,800 |
|
- |
250.00kgf (551lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Sensor | -20°C ~ 60°C | |
|
|
RSB2-50M-S50 KGF BUTTON LOAD CELL |
4,772 |
|
- |
50.00kgf (110lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Sensor | -20°C ~ 60°C | |
|
|
RSB2-100M-S100 KGF BUTTON LOAD CELL |
4,458 |
|
- |
100.00kgf (220lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.05% | -10°C ~ 40°C | 5V ~ 10V | Pushbutton | - | Sensor | -20°C ~ 60°C | |
|
RAS1-250S-S250 LB S-BEAM LOAD CELL |
1,422 |
|
- |
113.40kgf (250lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor | -20°C ~ 60°C | |
|
|
RAS1-100S-S100 LB S-BEAM LOAD CELL |
2,725 |
|
- |
45.36kgf (100lbs) | Analog Voltage mV/V (millivolts) | Load Cell | ±0.02% | -10°C ~ 40°C | 5V ~ 10V | S-Beam | - | Sensor | -20°C ~ 60°C |
