购物车工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8VK-G03012AC/DC DIN RAIL SUPPLY 12V 30W |
4,202 |
|
规格书 |
S8VK-G (30W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 2.5A | 30W | 3 kV | ITE (Commercial) | 82% | -40°C ~ 75°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | CE, cULus, cURus, VDE | - |
|
2904605AC/DC DIN RAIL SUPPLY 12V 30W |
2,051 |
|
规格书 |
Quint | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 12V | - | - | - | - | - | 2.5A | 30W | 4 kV | Hazardous Locations, Laboratory | 90.9% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, UL | - |
|
SDP06-24-100TAC/DC DIN RAIL SUPPLY 24V 15W |
2,518 |
|
规格书 |
SDP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 630mA | 15W | - | Hazardous Locations, Industrial, ITE (Commercial) | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus | - |
|
DRB240-24-1AC/DC DIN RAIL SUPPLY 24V 240W |
1,698 |
|
规格书 |
DRB (120-480W) | Bulk | Active | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Industrial, ITE (Commercial) | 93% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus, EAC | - |
|
DDR-240B-48DC/DC DIN RAIL SUPPLY 48V 240W |
2,962 |
|
规格书 |
DDR-240 (240W) | Bulk | Active | DC | 1 | - | 16.8V | 33.6V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Railway | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off | CE, EAC | - |
|

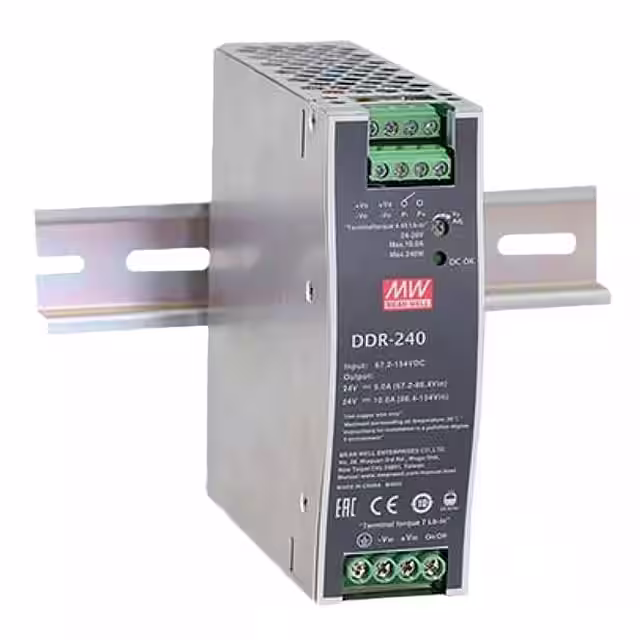

DDR-240C-48DC/DC DIN RAIL SUPPLY 48V 240W |
2,299 |
|
规格书 |
DDR-240 (240W) | Bulk | Active | DC | 1 | - | 33.6V | 67.2V | 48V | - | - | - | - | - | 5A | 240W | 4 kV | ITE (Commercial), Railway | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off | CE, EAC | - |
|
PIM60.125AC/DC DIN RAIL SUPPLY 12V 60W |
4,129 |
|
规格书 |
PIANO (60W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | - | ITE (Commercial), Laboratory | 90.7% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus | 61010-1; 62368-1 |
|
2868583AC/DC DIN RAIL SUPPLY 12V 60W |
3,716 |
|
规格书 |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 12V | - | - | - | - | - | 5A | 60W | 4 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | - | - |
|
1469470000AC/DC DIN RAIL SUPPLY 24V 72W |
3,206 |
|
规格书 |
PRO ECO (72W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 80V | 370V | 24V | - | - | - | - | - | 3A | 72W | 3 kV | ITE (Commercial) | 87% | -25°C ~ 70°C | Adjustable Output, IP20, Universal Input | CE, cULus, EAC, TUV | - |
|
WDR-240-48AC/DC DIN RAIL SUPPLY 48V 240W |
1,839 |
|
规格书 |
WDR-240 (240W) | Box | Active | AC or DC | 1 | 180 ~ 550 VAC | 254V | 780V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | Industrial, ITE (Commercial) | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | CB, CE, UL | - |
|

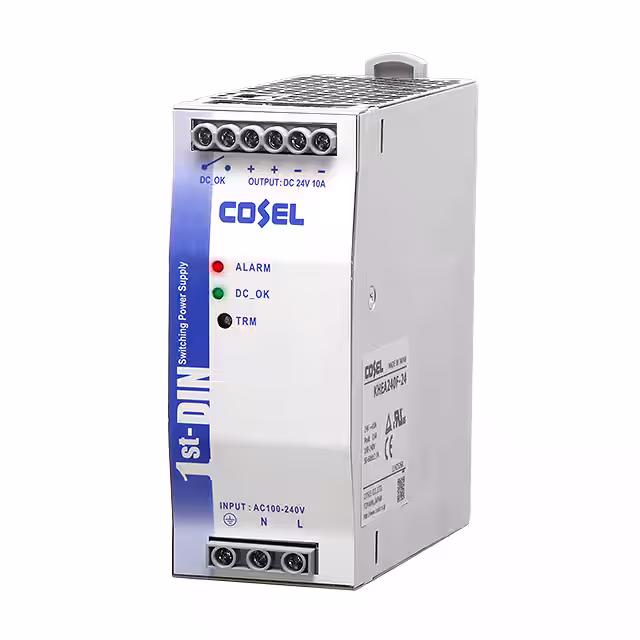

KHEA240F-24AC/DC DIN RAIL SUPPLY 24V 240W |
2,648 |
|
规格书 |
KHEA (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | CE, cURus, TUV | - |
|
1066704QUINT4-PS/12-24DC/5-15DC/2.5/P |
2,519 |
|
规格书 |
Quint | Bulk | Active | DC | 1 | - | 12V | 24V | 12V | - | - | - | - | - | 2.5A | 30W | 2.6 kV | Laboratory | 92.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CB, SIQ, UL | 61010-1 |
|
TIB 120-112AC/DC DIN RAIL SUPPLY 12V 120W |
1,725 |
|
规格书 |
TIB 120 (120W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 10A | 120W | 4.25 kV | Industrial, ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
DRP024V240W3BNAC/DC DIN RAIL SUPPLY 24V 240W |
3,248 |
|
规格书 |
CliQ II (240W) | Bulk | Active | AC | 1 | 320 ~ 600 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -25°C ~ 80°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3 |
|
PIM90.245-L1AC/DC DIN RAIL SUPPLY 24V 91W |
4,823 |
|
规格书 |
PIANO (90W) | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.8A | 91W | - | ITE (Commercial), Laboratory | 93.8% | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus | 61010-1; 62368-1 |
|
DPP240-24-1AC/DC DIN RAIL SUPPLY 24V 240W |
3,092 |
|
规格书 |
DPP (240W) | Bulk | Not For New Designs | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | CE | - |
|
2904607AC/DC DIN RAIL SUPPLY 12V 90W |
1,661 |
|
规格书 |
Quint | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 12V | - | - | - | - | - | 7.5A | 90W | 4 kV | Hazardous Locations, Laboratory | 92.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, UL | - |
|
SDR-480P-48AC/DC DIN RAIL SUPPLY 48V 480W |
4,005 |
|
规格书 |
SDR-480P (480W) | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, TUV | - |
|
KHEA480F-48AC/DC DIN RAIL SUPPLY 48V 480W |
3,774 |
|
规格书 |
KHEA (480W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Universal Input | CE, cURus, TUV | - |
|
2868664AC/DC DIN RAIL SUPPLY 24V 100W |
2,077 |
|
规格书 |
Step | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 24V | - | - | - | - | - | 4.2A | 100W | 4 kV | ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | IP20, Load Sharing, Universal Input | - | - |
