购物车高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE1303RELAY RF SPDT 500MA 3V |
3,895 |
|
规格书 |
ARE | Tray | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE1309RELAY RF SPDT 500MA 9V |
3,948 |
|
规格书 |
ARE | Tube | Obsolete | Non Latching | 22.2 mA | 9VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARE1324RELAY RF SPDT 500MA 24V |
3,054 |
|
规格书 |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
ARE13A03ZRELAY RF SPDT 500MA 3V |
2,427 |
|
规格书 |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A06RELAY RF SPDT 500MA 6V |
1,974 |
|
规格书 |
ARE | Tube | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A12ZRELAY RF SPDT 500MA 12V |
1,588 |
|
规格书 |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A24RELAY RF SPDT 500MA 24V |
1,017 |
|
规格书 |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A24ZRELAY RF SPDT 500MA 24V |
3,325 |
|
规格书 |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARE13A4HZRELAY RF SPDT 500MA 4.5V |
4,573 |
|
规格书 |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 5 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|

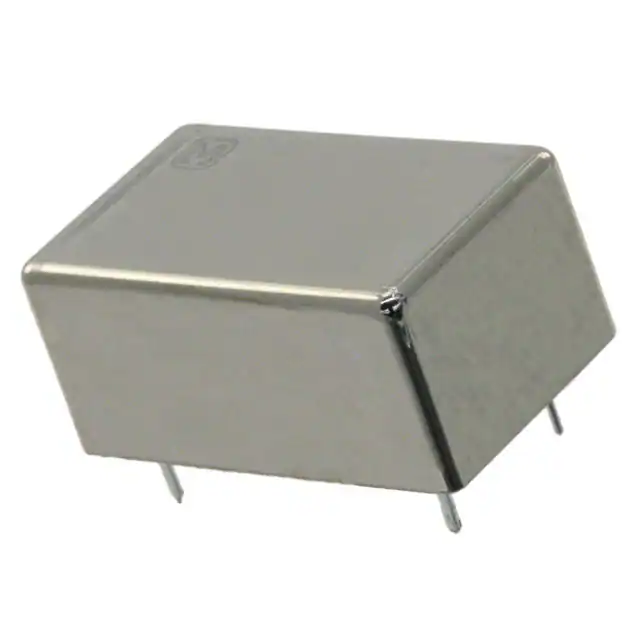

ARX1006RELAY RF SPDT 500MA 6V |
3,892 |
|
规格书 |
ARX | Tube | Obsolete | Non Latching | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | 0.6 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1012RELAY RF SPDT 500MA 12V |
4,740 |
|
规格书 |
ARX | Tube | Obsolete | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1024RELAY RF SPDT 500MA 24V |
3,024 |
|
规格书 |
ARX | Tube | Obsolete | Non Latching | 8.3 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1103RELAY RF SPDT 500MA 3V |
3,902 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Single Coil | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1106RELAY RF SPDT 500MA 6V |
1,439 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Single Coil | 33.3 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1112RELAY RF SPDT 500MA 12V |
2,487 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX114HRELAY RF SPDT 500MA 4.5V |
3,121 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Single Coil | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1206RELAY RF SPDT 500MA 6V |
3,143 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Dual Coil | 66.7 mA | 6VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 4.5 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1212RELAY RF SPDT 500MA 12V |
1,353 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Dual Coil | 33.3 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX1224RELAY RF SPDT 500MA 24V |
4,337 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Dual Coil | 16.7 mA | 24VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
ARX124HRELAY RF SPDT 500MA 4.5V |
4,628 |
|
规格书 |
ARX | Tube | Obsolete | Latching, Dual Coil | 88.9 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | - | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
