购物车高频（RF）继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

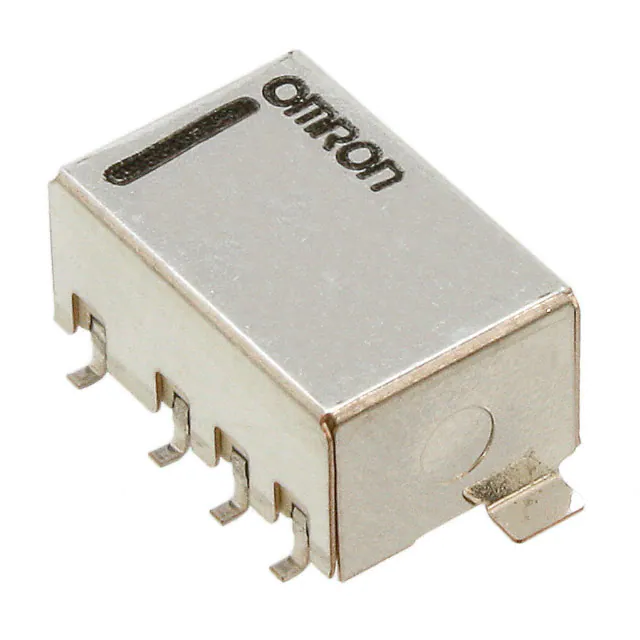

G6K-2F-RF-T-TR03 DC5RELAY RF DPDT 1A 5V |
4,853 |
|
规格书 |
G6K-RF | Tape & Reel (TR) | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6K-2F-RF DC12RELAY RF DPDT 1A 12V |
1,678 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF DC3RELAY RF DPDT 1A 3V |
410 |
|
规格书 |
G6K-RF | Tray | Active | Non Latching | 33 mA | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 2.4 VDC | 0.3 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
1462052-6RELAY RF SPDT 2A 12V |
190 |
|
规格书 |
HF6, AXICOM | Tape & Reel (TR) | Active | Non Latching | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
2911-05-321RELAY RF SPDT 250MA 5V |
1,379 |
|
规格书 |
2900 | Tube | Active | Non Latching | 21.7 mA | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2911-12-321RELAY RF SPDT 250MA 12V |
2,318 |
|
规格书 |
2900 | Tube | Active | Non Latching | 8 mA | 12VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 9 VDC | 1 VDC | 1 ms | 2 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
1462052-3RELAY RF SPDT 2A 5V |
473 |
|
规格书 |
HF6, AXICOM | Tape & Reel (TR) | Active | Non Latching | 28.1 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
1-1462052-7RELAY RF SPDT 2A 5V |
1,588 |
|
规格书 |
HF6, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 28.1 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
|
2-1462052-0RELAY RF SPDT 2A 12V |
478 |
|
规格书 |
HF6, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 11.7 mA | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 9 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
9852-05-00TRRELAY RF SPDT 100MA 5V |
8,046 |
|
规格书 |
9800 | Tape & Reel (TR) | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9852-05-20RELAY RF SPDT 100MA 5V |
1,848 |
|
规格书 |
9800 | Tube | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9852-05-00RELAY RF SPDT 100MA 5V |
2,627 |
|
规格书 |
9800 | Tube | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

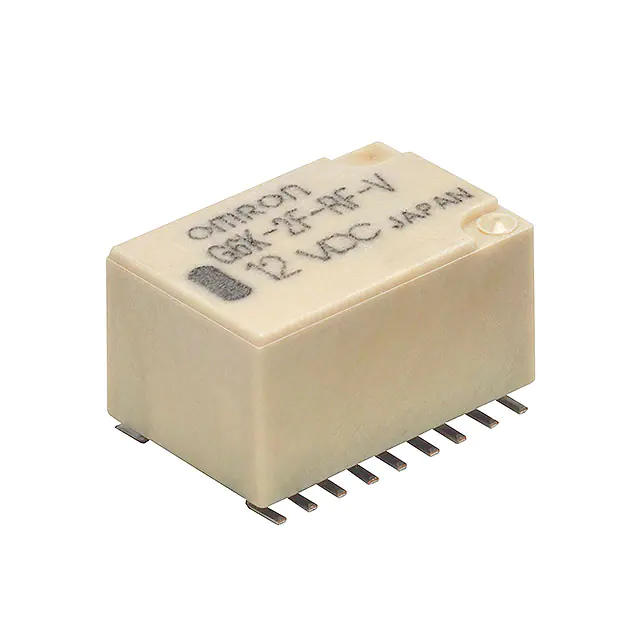

G6K-2F-RF-V DC5RELAY RF DPDT 1A 5V |
1,036 |
|
规格书 |
G6K-RF | Tube | Active | Non Latching | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 4 VDC | 0.5 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-V DC12RELAY RF DPDT 1A 12V |
242 |
|
规格书 |
G6K-RF | Tube | Active | Non Latching | 9.1 mA | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 9.6 VDC | 1.2 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6K-2F-RF-V DC4.5RELAY RF DPDT 1A 4.5V |
420 |
|
规格书 |
G6K-RF | Tube | Active | Non Latching | 23.2 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.6 VDC | 0.45 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
ARJ20A12RELAY RF DPDT 300MA 12V |
1,100 |
|
规格书 |
ARJ | Tube | Active | Non Latching | 16.7 mA | 12VDC | DPDT (2 Form C) | 300 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -30°C ~ 70°C |
|
B41-0001RELAY RF SPST-NO X 4 250MA 5V |
125 |
|
规格书 |
B41 | Tape & Reel (TR) | Active | Non Latching | 31.3 mA | 5VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

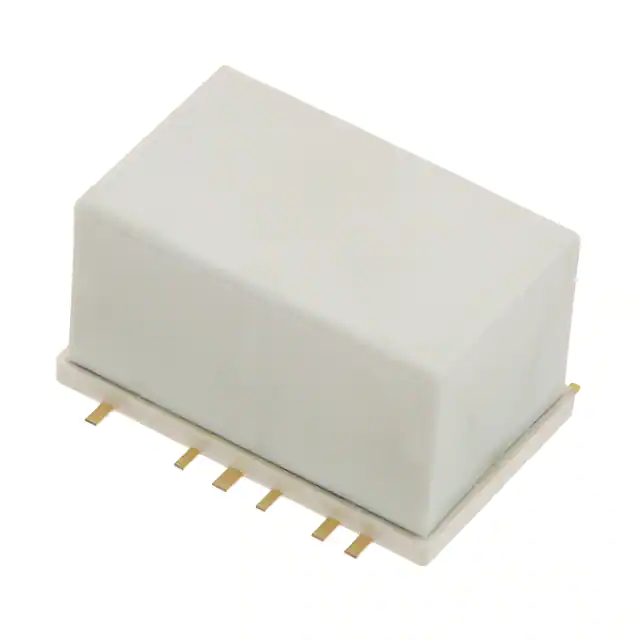

ARS14A4HRELAY RF SPDT 500MA 4.5V |
1,004 |
|
规格书 |
ARS | Tube | Active | Non Latching | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
9202-12-00RELAY RF SPST-NO 500MA 12V |
981 |
|
规格书 |
9200 | Bulk | Active | Non Latching | 18.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9814-03-00TRRELAY RF SPST-NO 250MA 3.3V |
12,519 |
|
规格书 |
9800 | Tape & Reel (TR) | Active | Non Latching | 47.1 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
