购物车加热带、加热毯和加热器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 温度额定值 | 功率密度 @ 12V | 功率（瓦特） | 电压 | 电阻 | 形状 | 长度 | 宽度 | 直径 | 厚度 | 材质 | 附件方式 | 端接方式 | 导线长度 | 材料 - 绝缘 | 线规 | 颜色 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53-882348FLEX HEATER POLYESTER 12" WIRE |
2,950 |
|
- |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 5 W/in² | 540 W | - | 0.3 Ohms | Rectangular | 18.000" (457.20mm) | 6.000" (152.40mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 18 AWG | Off-White | Leads Potted, User Selectable Voltage |
|
53-431235FLEX HEATER POLYESTER 12" WIRE |
1,951 |
|
- |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 63.62 W | - | 2.26 Ohms | Circular | - | - | 9.000" (228.60mm) | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Off-White | Leads Potted, User Selectable Voltage |
|
53-194568FLEX HEATER POLYESTER 12" WIRE |
3,133 |
|
- |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 100 W | - | 1.44 Ohms | Square | 10.000" (254.00mm) | 10.000" (254.00mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Off-White | Leads Potted, User Selectable Voltage |
|

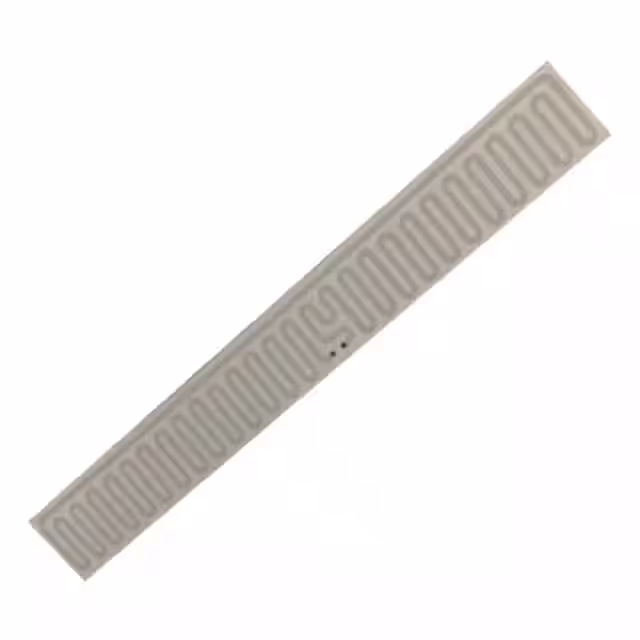

53-146790FLEX HEATER POLYESTER 12" WIRE |
2,226 |
|
- |
53 | Bulk | Active | Flexible Heater, Foil | 250°F (121°C) | 1 W/in² | 96 W | - | 1.5 Ohms | Rectangular | 12.000" (304.80mm) | 8.000" (203.20mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polytetrafluoroethylene (PTFE) | 20 AWG | Off-White | Leads Potted, User Selectable Voltage |
|
|
DK0205PC PTC2.0 x 5.0 in. Polymer Thick Film |
4,302 |
|
- |
12v | Bulk | Active | Printed | 149°F (65°C) | - | 55.3 W | 12V | 2.6 Ohms | Rectangular | 5.000" (127.00mm) | 2.000" (50.80mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polyvinyl Chloride (PVC) | 20 AWG | Black | - |
|
|
DK0205PF PTC2.0 x 5.0 in. Polymer Thick Film |
1,304 |
|
- |
12v | Bulk | Active | Printed | 149°F (65°C) | - | 15.2 W | 12V | 9.5 Ohms | Rectangular | 5.000" (127.00mm) | 2.000" (50.80mm) | - | - | Polyester | Pressure Sensitive Adhesive (PSA) | Wire Leads | 12.000" (304.80mm) | Polyvinyl Chloride (PVC) | 20 AWG | Black | - |
|
DR1000-2.5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 1V | - | Square | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.100" (2.54mm) | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
DK1000-5FLEX HEATER POLYIMIDE 18" WIRE |
250 |
|
规格书 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 1V | - | Square | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.071" (1.80mm) | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DR1000-5FLEX HEATER SIL RUBBER 18" WIRE |
240 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 1V | - | Square | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.100" (2.54mm) | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DK1000-2.5FLEX HEATER POLYIMIDE 18" WIRE |
170 |
|
规格书 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 1V | - | Square | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.071" (1.80mm) | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DR1002-2.5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 2V | - | Rectangular | 0.750" (19.05mm) | 0.250" (6.35mm) | - | 0.100" (2.54mm) | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - |
|
|
DR1002-5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 2V | - | Rectangular | 0.750" (19.05mm) | 0.250" (6.35mm) | - | 0.100" (2.54mm) | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - |
|
|
DK1002-2.5FLEX HEATER POLYIMIDE 18" WIRE |
240 |
|
规格书 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 2V | - | Rectangular | 0.750" (19.05mm) | 0.250" (6.35mm) | - | 0.071" (1.80mm) | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - |
|
|
DK1002-5FLEX HEATER POLYIMIDE 18" WIRE |
230 |
|
规格书 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 2V | - | Rectangular | 0.750" (19.05mm) | 0.250" (6.35mm) | - | 0.071" (1.80mm) | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - |
|
|
DR1027-5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Circular | - | - | 0.500" (12.70mm) | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DR1004-5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 0.500" (12.70mm) | 0.500" (12.70mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DR1027-2.5FLEX HEATER SIL RUBBER 18" WIRE |
250 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Circular | - | - | 0.500" (12.70mm) | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DK1027-2.5FLEX HEATER POLYIMIDE 18" WIRE |
240 |
|
规格书 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Circular | - | - | 0.500" (12.70mm) | - | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DR1004-2.5FLEX HEATER SIL RUBBER 18" WIRE |
230 |
|
规格书 |
DR | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | - | - | Square | 0.500" (12.70mm) | 0.500" (12.70mm) | - | - | Silicone Rubber | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 30 AWG | Red | - |
|
|
DK1003-2.5FLEX HEATER POLYIMIDE 18" WIRE |
230 |
|
规格书 |
DK | Box | Active | Flexible Heater, Foil | 302°F (150°C) | - | - | 2V | - | Rectangular | 1.000" (25.40mm) | 0.250" (6.35mm) | - | 0.071" (1.80mm) | Polyimide | Pressure Sensitive Adhesive (PSA) | Wire Leads | 18.000" (457.20mm) | - | 28 AWG | Red | - |
