购物车保险丝座
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 保险丝尺寸 | 电流额定值（安培） | 适用范围/相关产品 | 保险丝类型 | 保险丝座类型 | 电路数量 | 电压 | 方向 | 端接样式 | 触点材料 | 触点表面处理 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9080FB2211RTERMINAL BLOCK FUSEHOLDER 250V 3 |
4,480 |
|
规格书 |
- | Box | Active | Chassis Mount | 0.562" Dia x 2.000" L (14.28mm x 50.8mm) | 30 A | Class R | Cartridge | Block | 2 | 250V | Vertical | Screw Terminal | - | - | - |
|
|
LFH250302PFUSE BLOK CART 250V 30A DIN RAIL |
6,391 |
|
规格书 |
LF | Box | Active | DIN Rail | - | 30 A | Class H(K), Class R Fuses | Cartridge | Block | 2 | 250V | - | Screw Terminal, Pressure Plate | - | - | - |
|
BK/HLRGMF-1.6FUSE HOLDR CART 300V 15A IN LINE |
8,518 |
|
规格书 |
HLR | Bulk | Active | Free Hanging (In-Line) | - | 15 A | GLR, GMF, GRF | Cartridge | Holder | 1 | 300V | - | Wire Leads | - | - | - |
|
|
LFPHV0001ZXIDFUSE HLDR 1000VDC INDCTNG PV |
5,417 |
|
规格书 |
LFPHV | Bulk | Obsolete | DIN Rail | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 1 | 1000V | - | Screw Terminal, Pressure Plate, Quick Connect | - | - | - |
|
05720028LXPFUSE HLDR CART 600V 30A PNL MNT |
7,531 |
|
规格书 |
572 | Bulk | Active | Panel Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 30 A | 5AG, 13/32" x 1-1/2" (Midget) | Cartridge | Holder | 1 | 600V | - | Quick Connect - 0.250" (6.3mm) | Brass | Tin | - |
|
|
HPF-RR-WTFUSE HLDR CART 600V 20A PNL MNT |
3,404 |
|
规格书 |
HPF | Bulk | Active | Panel Mount | 0.394" Dia x 1.496" L (10mm x 38mm) | 20 A | Class CC Fuses, 13/32" x 1-1/2" | Cartridge | Holder | 1 | 600V | - | Quick Connect - 0.250" (6.3mm) | - | - | - |
|
|
11241-3PRFUSE CLIP CART 600V 60A CHASSIS |
8,427 |
|
规格书 |
- | Bulk | Obsolete | Chassis Mount | 1.063" Dia (27mm) | 60 A | Class H(K), Class J, Class R Fuses | Cartridge | Clip | 3 | 600V | - | Screw Terminal, Pressure Plate | - | - | - |
|
|
BG3021SQFUSE BLOCK CART 600V 20A CHASSIS |
5,923 |
|
规格书 |
BG | Bulk | Active | Chassis Mount | 0.394" Dia x 1.313" L (10mm x 33.35mm) | 20 A | Class G Fuses, 13/32" x 1-5/16" | Cartridge | Block | 1 | 600V | - | Screw Terminal, Quick Connect | - | - | - |
|
|
LH250303CFUSE BLOCK CART 250V 30A CHASSIS |
2,334 |
|
规格书 |
LH | Bulk | Obsolete | Chassis Mount | 0.563" Dia x 2" L (14.3mm x 50.8mm) | 30 A | Class H(K), Class R Fuses | Cartridge | Block | 3 | 250V | - | Box Lug | - | - | - |
|
|
03560011ZFUSE BLOCK CART 250V 15A CHASSIS |
7,902 |
|
规格书 |
356 | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 15 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 11 | 600V | - | Screw Terminal | Spring Brass | Nickel | - |
|
|
RM25030-1PRFUSE BLK CLASS R 250V 30A 1POLE |
6,507 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
J60030-1CFUSE BLOCK CART 600V 30A CHASSIS |
6,830 |
|
规格书 |
J600 | Bulk | Obsolete | Chassis Mount | 0.813" Dia x 2.25" L (20.65mm x 57.15mm) | 30 A | Class J Fuses | Cartridge | Block | 1 | 600V | - | Box Lug | - | - | - |
|
|
BP/HHUFUSE HOLDR BLADE 32V 30A IN LINE |
4,631 |
|
规格书 |
HHU | Bulk | Active | Free Hanging (In-Line) | 0.433" L x 0.152" W (11.00mm x 3.85mm) | 30 A | Miniature (ATM) | Blade | Holder | 1 | 32V | - | Wire Leads | - | - | - |
|
|
LFH250303SFUSE BLOK CART 250V 30A DIN RAIL |
8,664 |
|
规格书 |
LF | Box | Active | DIN Rail | - | 30 A | Class H(K), Class R Fuses | Cartridge | Block | 3 | 250V | - | Screw Terminal | - | - | - |
|
|
BK/HHAFUSE HOLDER CARTRIDGE IN LINE |
3,427 |
|
- |
HHA | Bulk | Active | Free Hanging (In-Line) | 0.75" L x 0.2" W (19.1mm x 5.1mm) | - | ATC, ATO | Blade | Holder | 1 | - | - | Wire Leads | - | - | - |
|
|
H25030-2PRFUSE BLOCK CART 250V 30A CHASSIS |
5,142 |
|
规格书 |
H250 | Bulk | Obsolete | Chassis Mount | 0.563" Dia x 2" L (14.3mm x 50.8mm) | 30 A | Class H(K), Class R Fuses | Cartridge | Block | 2 | 250V | - | Screw Terminal, Pressure Plate | - | - | - |
|
|
HM25030-1PRFUSE BLK CLASS H 250V 30A 1POLE |
5,433 |
|
规格书 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BK/HPG-EEFUSE HOLDR CART 600V 15A PNL MNT |
9,738 |
|
- |
HPG | Bulk | Active | Panel Mount | 0.394" Dia x 1.313" L (10mm x 33.35mm) | 15 A | Class G Fuses, 13/32" x 1-5/16" | Cartridge | Holder | 1 | 600V | Horizontal | Quick Connect - 0.250" (6.3mm) | - | - | - |
|
03590007ZFUSE BLOCK CART 250V 30A CHASSIS |
6,391 |
|
规格书 |
359 | Bulk | Active | Chassis Mount | 0.25" Dia x 1.26" L (6.35mm x 32mm) | 30 A | 3AG, 1/4" x 1-1/4" (SFE-20) | Cartridge | Block | 7 | 600V | - | Screw Terminal | Beryllium Copper | Silver | - |
|

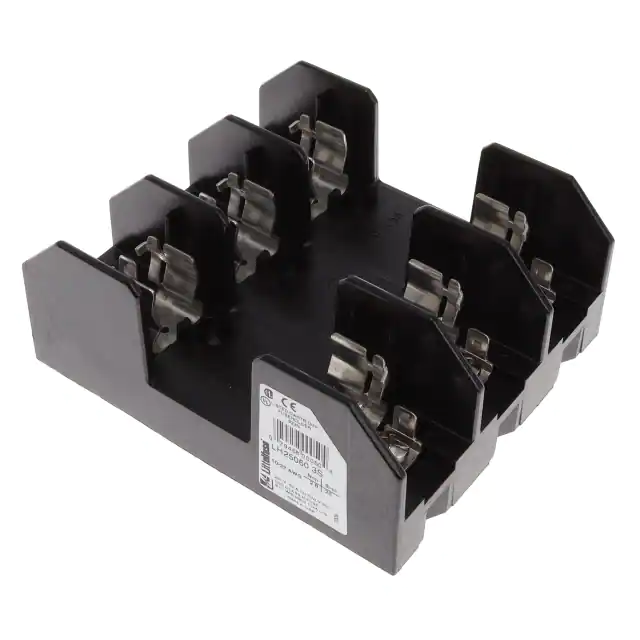

LH250603SFUSE BLOCK CART 250V 60A CHASSIS |
8,741 |
|
规格书 |
LH | Box | Obsolete | Chassis Mount | 0.813" Dia x 3" L (20.65mm x 76.2mm) | 60 A | Class H(K), Class R Fuses | Cartridge | Block | 3 | 250V | - | Screw Terminal | - | - | - |
