购物车扁平排线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3782-34P-540A 100FTCBL RIBN 68COND TWIST PAIR 100' |
1,803 |
|
- |
3782 | Bulk | Obsolete | Flat Twisted Pair | 68 (34 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 3.400" (86.36mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | - | Zippable |
|
HF659/09CBL RIBN 9COND 0.05 GRAY 275' |
2,392 |
|
规格书 |
HF659 | Spool | Active | Flat Cable, Round Jacket | 9 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.402" (10.20mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Zippable |
|
|
HF659/15CBL RIBN 15COND 0.05 GRAY 275' |
1,551 |
|
规格书 |
HF659 | Spool | Active | Flat Cable, Round Jacket | 15 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.700" (17.78mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Zippable |
|
HF365/11CBL RIBN 11COND 0.05 GRAY 100' |
3,581 |
|
规格书 |
HF365 | Spool | Active | Flat Cable | 11 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.550" (13.97mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF759/20CBL RIBN 20COND 0.05 GRAY 275' |
4,253 |
|
规格书 |
HF759 | Spool | Discontinued at Digi-Key | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Zippable |
|

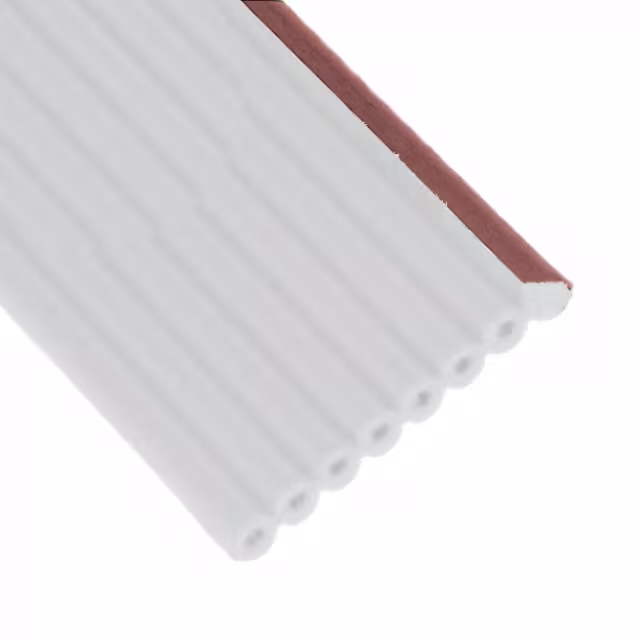

3625/08ER 100MCBL RIBN 8COND 0.039 GRAY 328.1' |
1,521 |
|
规格书 |
3625 | Bulk | Active | Flat Cable | 8 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.315" (8.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

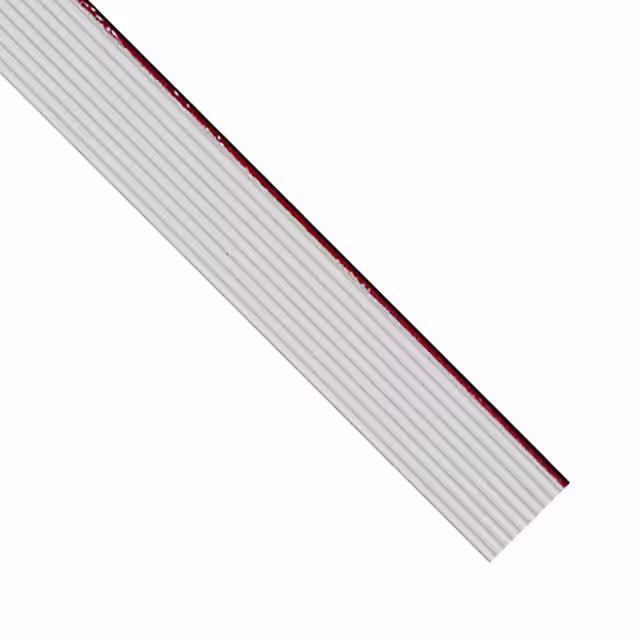

3625/10 30M SFCBL RIBN 10COND 0.039 GRAY 98.4' |
1,848 |
|
规格书 |
3625 | Bulk | Active | Flat Cable | 10 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.394" (10.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|

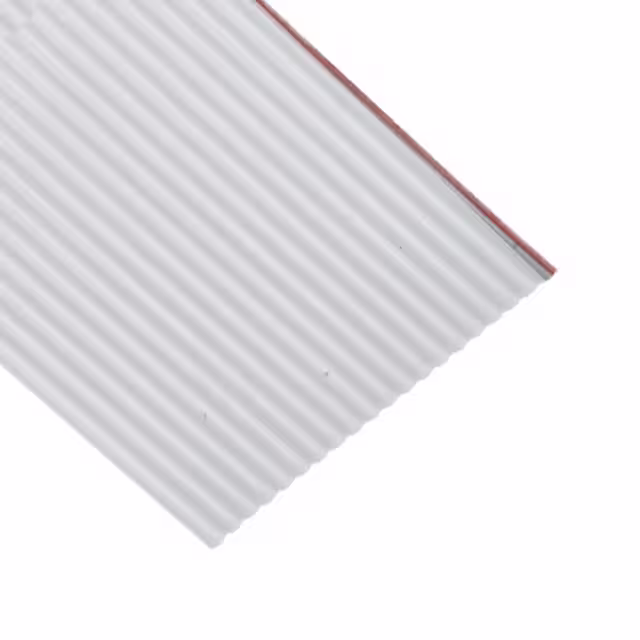

3625/20SF 30MCBL RIBN 20COND 0.039 GRAY 98.4' |
3,676 |
|
规格书 |
3625 | Bulk | Discontinued at Digi-Key | Flat Cable | 20 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.787" (20.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

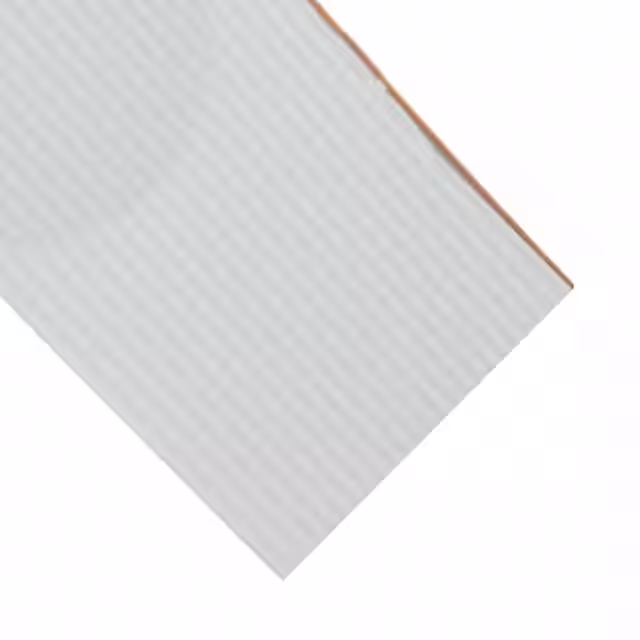

3625/24SF 30MCBL RIBN 24COND 0.039 GRAY 98.4' |
3,836 |
|
规格书 |
3625 | Bulk | Discontinued at Digi-Key | Flat Cable | 24 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
0082226102CBL RIBN 2COND 0.1 GRAY 100' |
3,152 |
|
规格书 |
7560 | Bulk | Obsolete | Flat Cable | 2 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.051" (1.30mm) | 0.200" (5.08mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
0082226104CBL RIBN 4COND 0.1 GRAY 100' |
3,251 |
|
规格书 |
7560 | Bulk | Obsolete | Flat Cable | 4 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.051" (1.30mm) | 0.300" (7.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

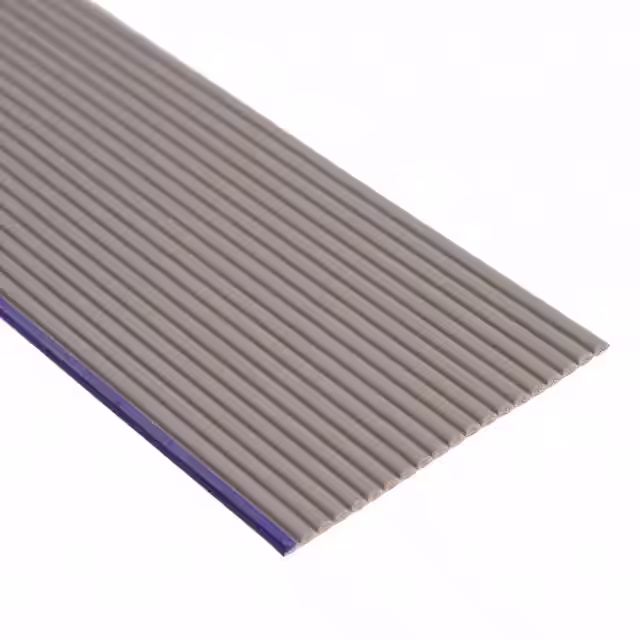

HF625/20SF-30MCBL RIBN 20COND 0.039 GRAY 98.4' |
1,803 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 20 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.787" (20.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF625/22-30MCBL RIBN 22COND 0.039 GRAY 98.4' |
2,261 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 22 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.866" (22.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF625/22SF-30MCBL RIBN 22COND 0.039 GRAY 98.4' |
4,895 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 22 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.866" (22.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF625/24-30MCBL RIBN 24COND 0.039 GRAY 98.4' |
4,694 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 24 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

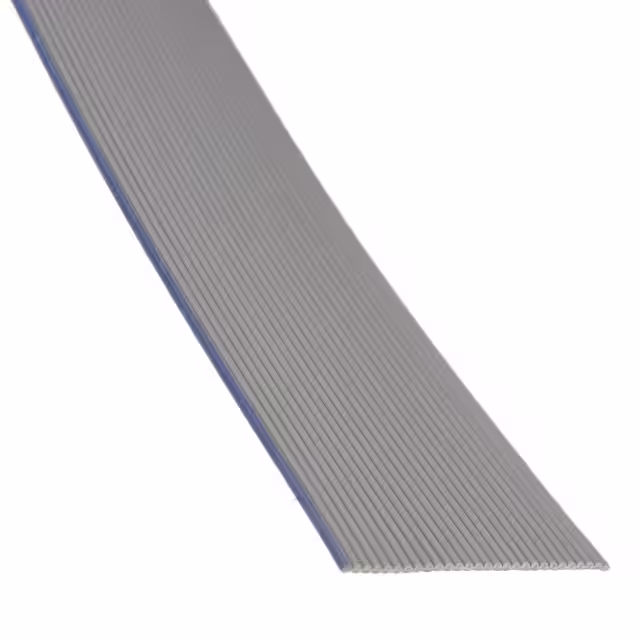

HF625/28-30MCBL RIBN 28COND 0.039 GRAY 98.4' |
3,787 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 28 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.102" (27.99mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF625/28SF-30MCBL RIBN 28COND 0.039 GRAY 98.4' |
3,851 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 28 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.102" (27.99mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF625/32SF-100MCBL RIBN 32COND 0.039 GRY 328.1' |
2,894 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 32 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.260" (32.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF625/42-30MCBL RIBN 42COND 0.039 GRAY 98.4' |
1,918 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 42 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.654" (42.01mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
HF625/48-30MCBL RIBN 48COND 0.039 GRAY 98.4' |
3,909 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 48 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.890" (48.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
