购物车扁平排线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1000570260CBL RIBN 10COND 0.025 NATURAL |
1,913 |
|
规格书 |
Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 10 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | Solid | Unshielded | Natural | - | 0.250" (6.35mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | 150°C | - | - |
|

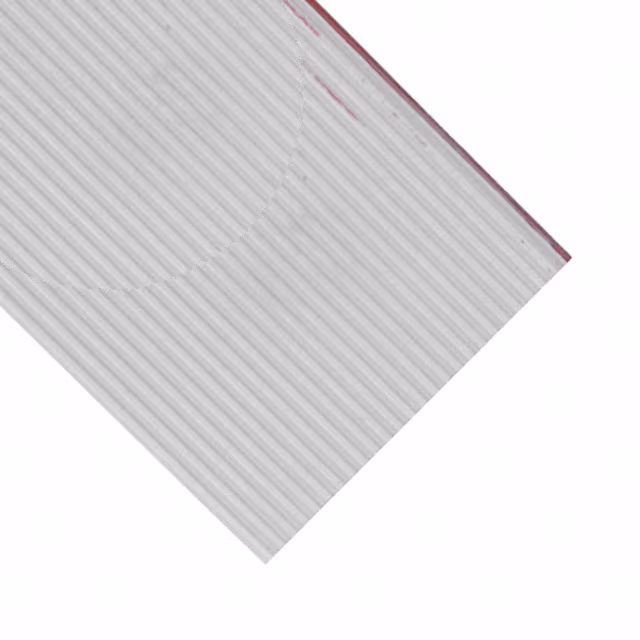

3625/26 100MSFCBL RIBN 26COND 0.039 GRY 328.1' |
200 |
|
规格书 |
3625 | Spool | Active | Flat Cable | 26 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
8124/12 100CBL RIBN 12COND 0.1 GRAY 100' |
200 |
|
规格书 |
8124 | Spool | Active | Flat Cable | 12 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.060" (1.52mm) | 1.168" (29.67mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
HF365/60SFCBL RIBN 60COND 0.05 GRAY 100' |
300 |
|
规格书 |
HF365 | Spool | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.000" (76.20mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
1000570501CBL RIBN 9COND FLAT 0.05 NATURAL |
2,246 |
|
规格书 |
Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 9 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 19 Strands / 40 AWG | Unshielded | Natural | - | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | UL Style 20424 | - |
|
HF100/34TPCBL RIBN 34COND TWIST PAIR 300' |
600 |
|
规格书 |
HF100 | Spool | Active | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.700" (43.18mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
3517/15 100SFCBL RIBN 15COND 0.05 GRAY 100' |
800 |
|
规格书 |
3517 | Spool | Active | Flat Cable, Flat Jacket | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.880" (22.35mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
HF100/30TPCBL RIBN 30COND TWIST PAIR 100' |
300 |
|
规格书 |
HF100 | Spool | Active | Flat Twisted Pair | 30 (15 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.500" (38.10mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|

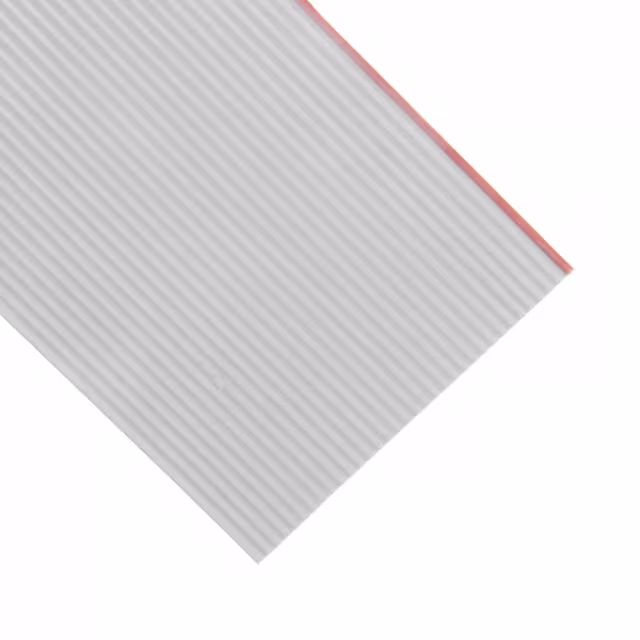

3625/34 100MSFCBL RIBN 34COND 0.039 GRY 328.1' |
200 |
|
规格书 |
3625 | Spool | Active | Flat Cable | 34 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.339" (34.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
HF625/20-30MCBL RIBN 20COND 0.039 GRAY 98.4' |
180 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 20 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.787" (20.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF625/26-100MCBL RIBN 26COND 0.039 GRY 328.1' |
200 |
|
规格书 |
HF625 | Spool | Active | Flat Cable | 26 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF319/14 100CBL RIBN 14COND 0.05 GRAY 100' |
1,000 |
|
规格书 |
HF319 | Spool | Active | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.700" (17.78mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
.jpg)
|
3659/64 100CBL RIBN 64COND 0.05 BLACK 100' |
600 |
|
规格书 |
3659 | Spool | Active | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
|
3659/64 100SFCBL RIBN 64COND 0.05 BLACK 100' |
200 |
|
规格书 |
3659 | Spool | Active | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3551 MC005CBL RIBN 15COND 0.039 MULTI 100' |
300 |
|
规格书 |
- | Spool | Active | Flat Cable | 15 | 0.039" (1.00mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.039" (0.99mm) | 0.585" (14.86mm) | Poly-Vinyl Chloride (PVC) | 600 V | - | MIL-DTL-16878/1 Type B | -20°C ~ 105°C | UL Style 2713 | - |
|
HF539/40CBL RIBN 40COND 0.05 GRAY 100' |
200 |
|
规格书 |
HF539 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

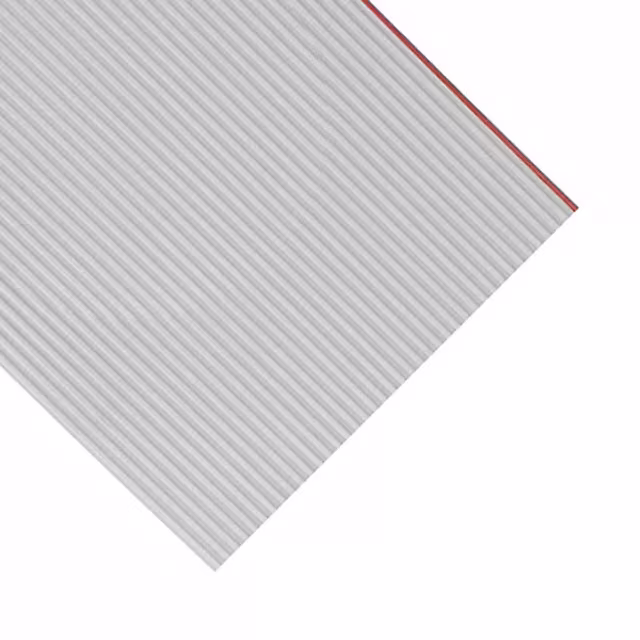

3625/40 100MSFCBL RIBN 40COND 0.039 GRY 328.1' |
200 |
|
规格书 |
3625 | Spool | Active | Flat Cable | 40 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
C3319/14 100CBL RIBN 14COND 0.05 BLACK 100' |
300 |
|
规格书 |
3319 | Spool | Active | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|

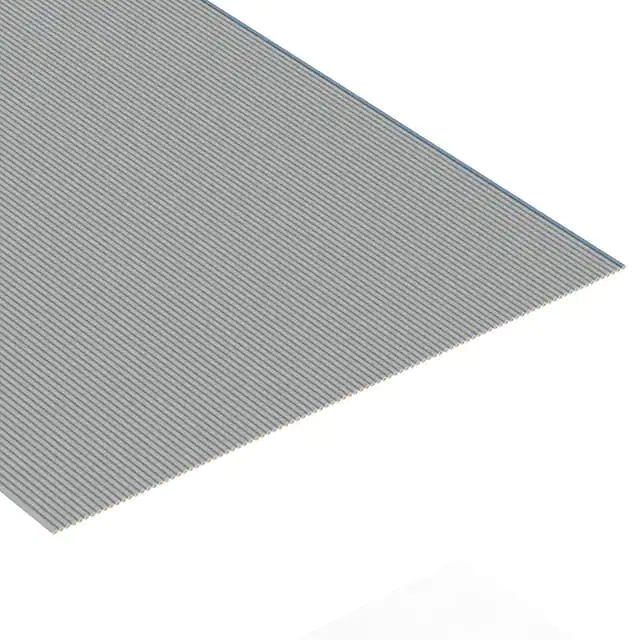

3749/100 100CBL RIBN 100COND 0.025 GRAY 100' |
700 |
|
规格书 |
3749 | Spool | Active | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 2.500" (63.50mm) | Thermoplastic Elastomer (TPE) | 150 V | - | - | -40°C ~ 105°C | UL Style 20297 | Zippable |
|
482W101-26-250CBL RIBN 26COND 0.025 CLEAR 250' |
250 |
|
规格书 |
- | Spool | Active | Flat Cable | 26 | 0.025" (0.64mm) | 250.0' (76.20m) | 30 AWG | - | Unshielded | Clear | 0.026" (0.66mm) | 0.650" (16.51mm) | - | 300 V | - | - | -65°C ~ 260°C | - | - |
